EN - 29
2. Reconnect positive cable and then the
negative cable.
3. Place boot over positive terminal.
4. Return seat to operating position.
CHARGE BATTERY
Check battery with a voltmeter. If battery is
less than 11 volts, charge battery.
NOTICE: DO NOT fast charge. Charging at a
higher rate damages or destroys battery.
ONLY use an automatic charger designed for
use with your battery.
NOTICE: Always follow information provided
on battery by battery manufacturer. Contact
battery manufacturer for details regarding
charging.
1. Remove battery from unit. See Remove
Battery on page 28.
2. Place battery on bench in a well-
ventilated area.
3. Connect positive lead of charger to
positive terminal.
4. Connect negative lead of charger to
negative terminal.
5. Charge battery following battery
manufacturer’s instructions.
6. Reinstall battery. See Install Battery on
page 28.
Jump Starting
Gravely does not recommend jump starting
your unit. Jump-starting can damage engine
and system components. Refer to engine
manual for details.
CHECK FASTENERS
Check for loose hardware and tighten if
necessary.
LUBRICATE UNIT
1. Apply oil to all pivot points and pin
connections.
2. Pump grease into grease fittings.
Lubricate Caster Fork Bearings
See Figure 34.
1. Place steering levers in neutral position
and engage parking brake.
2. Stop engine, remove key and wait for all
moving parts to stop and for hot parts to
cool.
3. Remove dust cap.
4. Pump grease into fitting until grease
appears at the top of the upper bearing.
5. Reinstall dust cap.
Lubricate Caster Wheel Bearings
1. Place unit in service position. See
Service Position on page 23.
2. Support unit so front wheels are off the
ground.
3. Remove wheel from fork.
See Figure 35.
4. Remove end caps from wheel hub.
5. Pump grease into fitting until grease
squeezes through the seal in the wheel
hub.
6. Wipe away excess grease.
7. Reinstall end caps onto wheel hub.
8. Reinstall wheel into fork and lower unit to
ground.
IMPORTANT: After tightening bolt, tire should
not have any side-to-side play. Tighten bolt
until there is a slight amount of drag on the
wheel bearing. The wheel should not spin
freely.

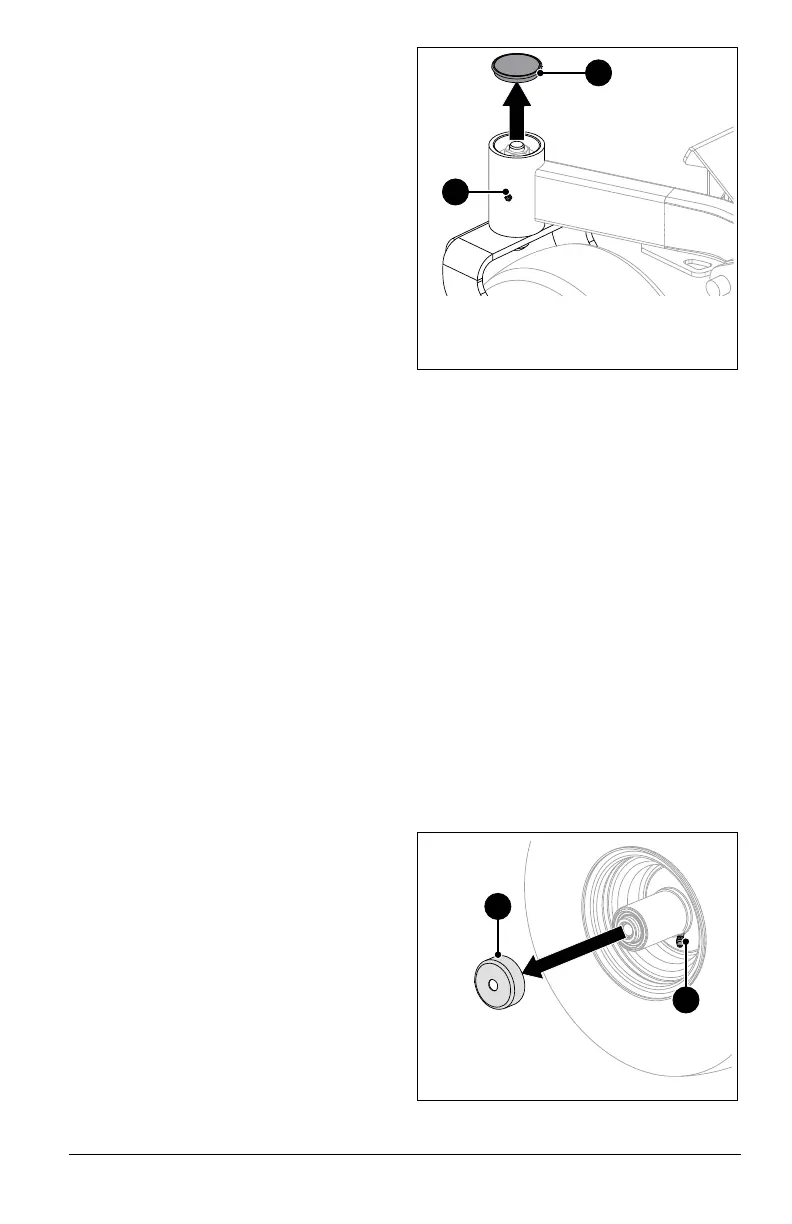

Figure 34
1. Dust Cap
2. Grease Fitting
1
2
Figure 35
1. End Cap
2. Grease Fitting
1
2
