Gravely Compact Pro 34 User Manual

EN - 13
DECK LIFT PEDAL
Raises mower deck to change height-of-cut
setting.
SEAT ADJUSTMENT LEVER
Unlocks seat to allow operator to move seat
forward or backward and then lock in desired
position. See Figure 9.
SEAT LATCH
Unlocks seat to allow operator to rotate seat
forward for service. See Figure 10.
ROLLOVER PROTECTION
STRUCTURE (ROPS)
An optional rollover protection structure
(ROPS) is available for this unit. See
Accessories on page 34.
PARKING BRAKE LEVER
See Figure 11.
Controls the parking brake. The engine will
not start with brake in the off position.
SAFETY INTERLOCK SYSTEM
Monitors the interaction of various unit
features for operator safety.
STEERING LEVERS
Control the direction and speed of unit. To
stop unit, return both steering levers to
neutral.
TRANSAXLE BYPASS LEVERS
Engage and disengage the transaxles so unit
may be moved with the engine off.

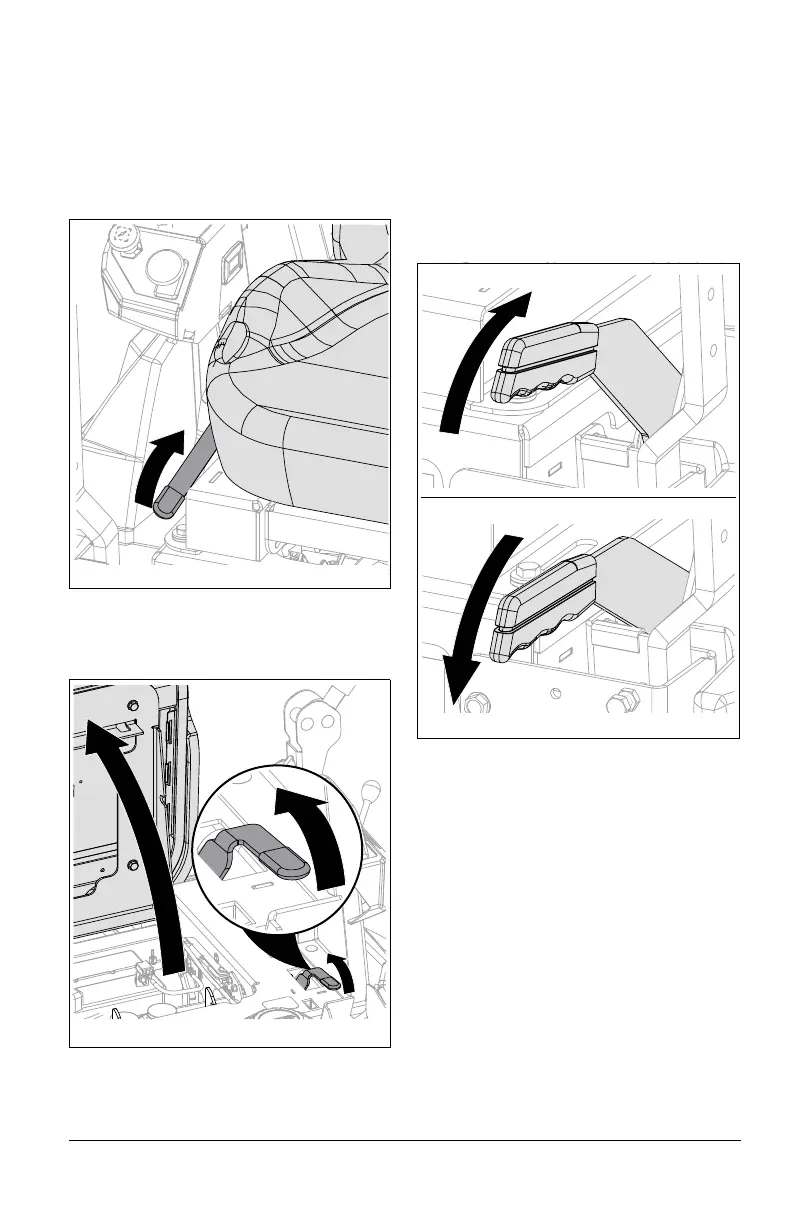

Figure 9
Figure 10
Brake Engaged (On)
Brake Released (Off)
Figure 11

Gravely Compact Pro 34 Specifications

General

Engine Manufacturer	Kawasaki
Cutting Width	34 inches
Cutting Height	1.5 - 4.5 inches
Transmission	Hydrostatic
Blade Tip Speed	18, 000 fpm
Deck Type	Fabricated
Deck Material	Steel
Warranty	3 years
