Gravely Pro-Turn 152 User Manual

EN - 19
POSITION ROPS
IMPORTANT: Inspect ROPS and seatbelt for
damage and loose or missing hardware.
Raise Center Bar
See Figure 18.
1. Remove hairpins from lock pins and
remove lock pins from hinge plate.
2. Raise center bar and secure with lock
pins and hairpins.
Lower Center Bar
See Figure 19.
1. Remove hairpins from lock pins and
remove lock pins from hinge plate.
2. Lower center bar and secure with lock
pins and hairpins.
IMPORTANT: Return center bar to the raised
position when clear of obstacles.
Test Steering
Levers
PTO Parking
Brake
Result
Starting Interlock
1 Neutral Off Engaged Engine
starts.
2Forward,
Neutral,
Reverse
On Engaged
or
Disengag
ed
Engine
does not
start.
3Forward,
Neutral,
Reverse
On
or
Off
Disengag
ed
Engine
does not
start.
Operating Interlock (Engine On)
4 * Forward,
Neutral,
Reverse
On Engaged
or
Disengag
ed
Engine
shuts off.
5 * Forward,
Neutral,
Reverse
On
or
Off
Disengag
ed
Engine
shuts off.
* When operator lifts off seat.
WARNING: AVOID INJURY.
Seatbelt MUST be worn when
operating with center bar raised.

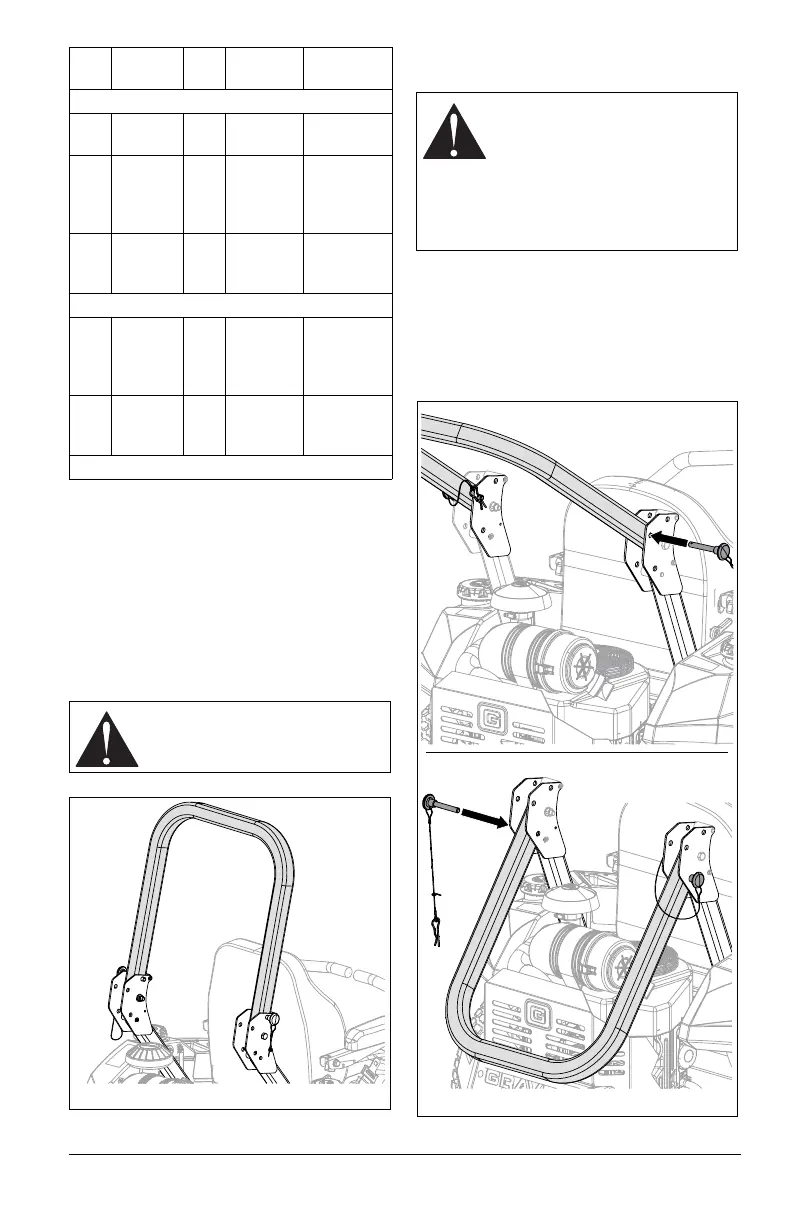

Figure 18
WARNING: AVOID INJURY.
Lower the center bar only when
needed to drive under an object.
There is no rollover protection
with the center bar in the
lowered position. DO NOT wear
seatbelt when ROPS is in
lowered position.
Figure 19
Lowered Position With
Bagger Installed
Lowered Position With
No Bagger Installed

Gravely Pro-Turn 152 Specifications

General

Engine Manufacturer	Kawasaki
Fuel Type	Gasoline
Transmission Type	Hydrostatic
Cutting Width	52 inches
Cutting Height	1.5 - 5 inches
