ADJUST SEAT
See Figure 20.
Set Seat Height
Rotate seat height adjustment dial on front of
seat to match the approximate weight of the
operator.
Set Seat Position
1. While seated, pull seat adjustment lever
inward and slide seat forward or
backward to desired position.
2. Release lever and slide seat slightly
forward or backward to lock position.
Set Lumbar Support
• Lift lever to increase lumbar support.
• Lower lever to decrease lumbar support.
See Figure 21.
Set Backrest Angle
Rotate dial on left side of seat to adjust
backrest angle.
Set Armrest Angle
Turn angle adjustment knob clockwise to
raise the front of armrest or counterclockwise
to lower front of armrest.
SET CUTTING HEIGHT
See Figure 22.
1. Push mower lift pedal forward until
transport lock engages.
2. Insert adjustment pin through desired
setting in height-of-cut adjustment
system.
3. Push mower lift pedal slightly forward,
release transport lock and slowly release
mower lift pedal until it contacts
adjustment pin and stops.
WARNING: AVOID INJURY.
Make all seat adjustments with
the unit stopped, parking brake
engaged and engine off.

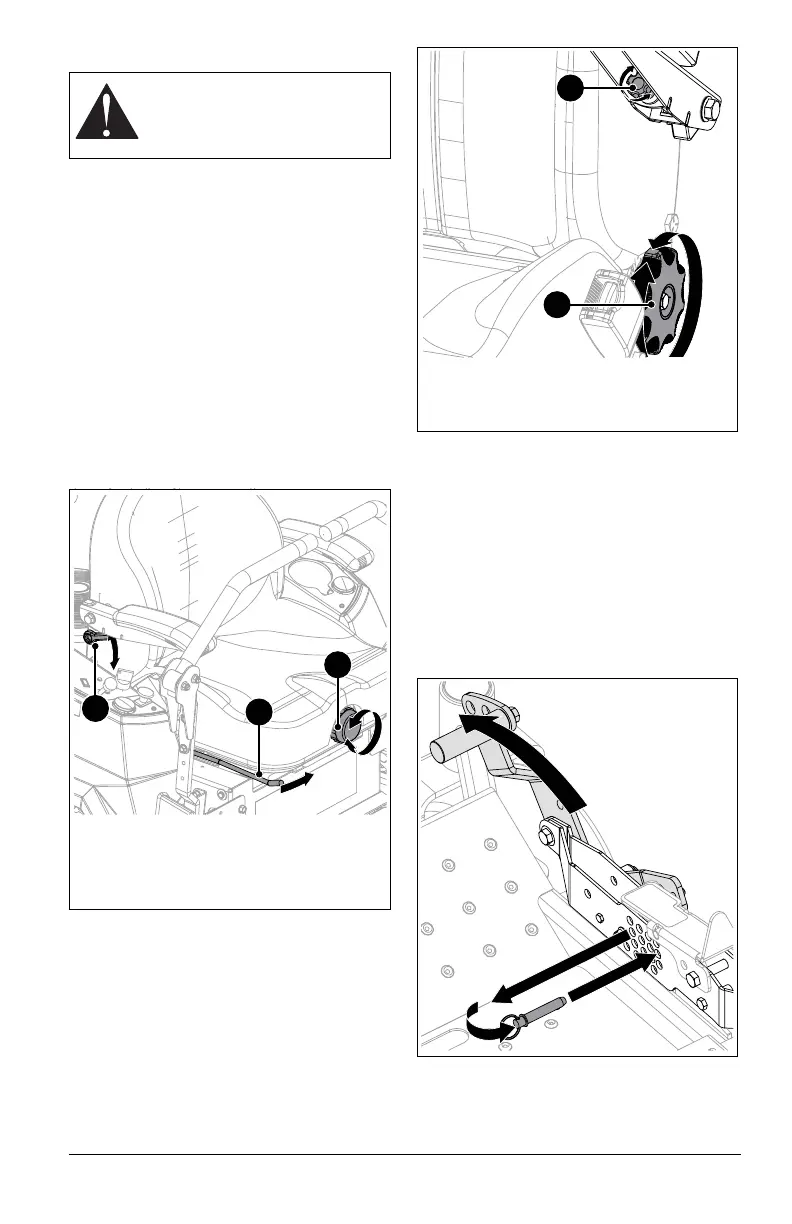

Figure 20
1. Seat Height Adjustment Dial
2. Seat Adjustment Lever
3. Lumbar Support Lever
1
2
3
Figure 21
1. Backrest Angle Dial
2. Armrest Angle Adjustment Knob
2
1
Figure 22
