EN - 37
REPLACE TRANSAXLE DRIVE
BELT
Remove Transaxle Drive Belt
1. Place unit in service position. See
Service Position on page 23.
2. Remove PTO belt from clutch. See
Remove PTO Belt on page 35.
3. Under unit, slowly remove spring hook
from anchor bolt to release transaxle idler
tension. See Figure 51.
See Figure 52.
4. Remove hardware securing clutch stop
bracket to frame and remove bracket.
NOTICE: DO NOT cut cable tie.
5. Remove transaxle drive belt from drive
system in the following order:
a. From right transaxle sheave.
b. From left transaxle sheave.
c. From engine sheave.
Install Transaxle Drive Belt
See Figure 53.
1. Install transaxle drive belt to drive system
in the following order:
a. Around left transaxle sheave.
b. Around engine sheave.
c. Around right transaxle sheave.
2. Align belt with idler pulley.
CAUTION: Use care when
releasing idler spring tension.
Keep body parts away from
idlers when performing this
operation.

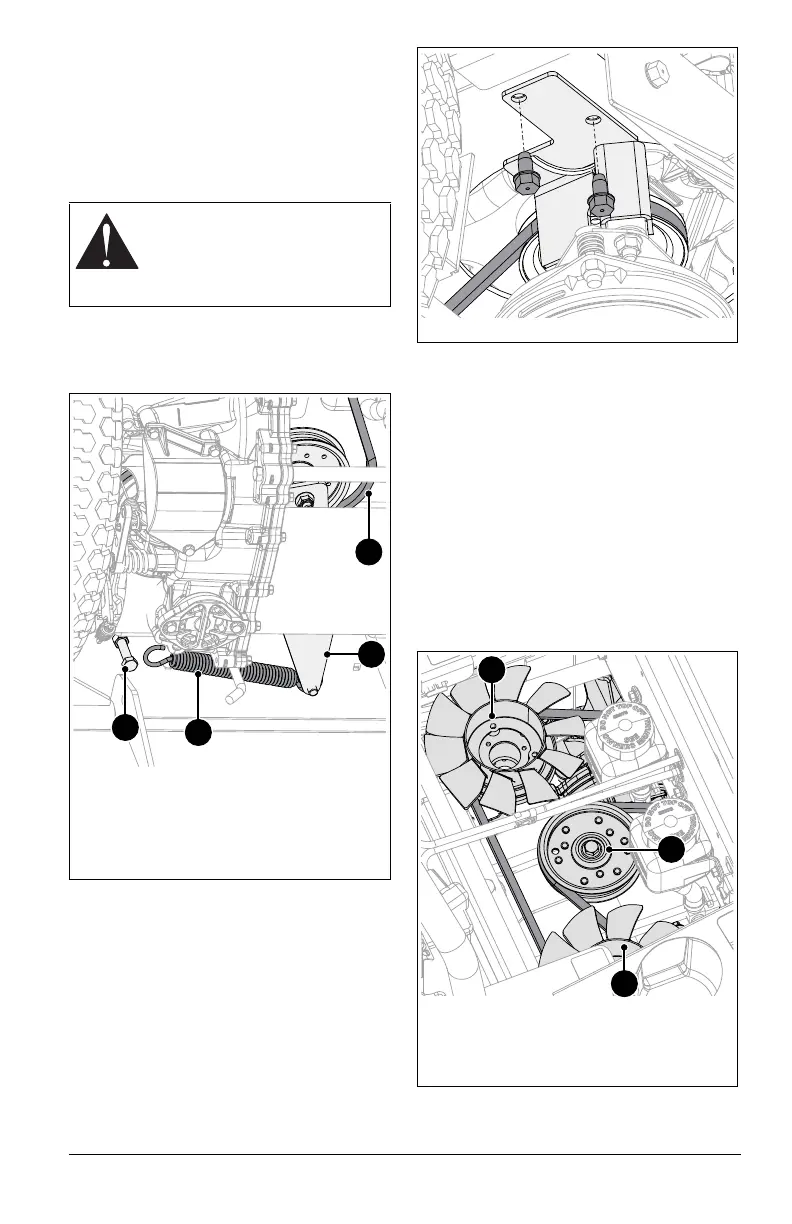

Figure 51
1. Spring
2. Anchor Bolt
3. Transaxle Idler
4. Transaxle Drive Belt
1
2
3
4
Figure 52
Figure 53
1. Right Transaxle
2. Left Transaxle
3. Idler Pulley
1
2
3
