See Figure 46.
7. Slowly remove spring hook from anchor
bolt to release tension from belt idler.
8. Remove PTO belt.
Remove Mower Drive Belt
See Figure 47 and Figure 48.
1. Slowly remove spring hook from anchor
bolt to release tension from belt idler.
2. Remove mower drive belt.
CAUTION: Use care when
releasing idler spring tension.
Keep body parts away from
idlers when performing this
operation.

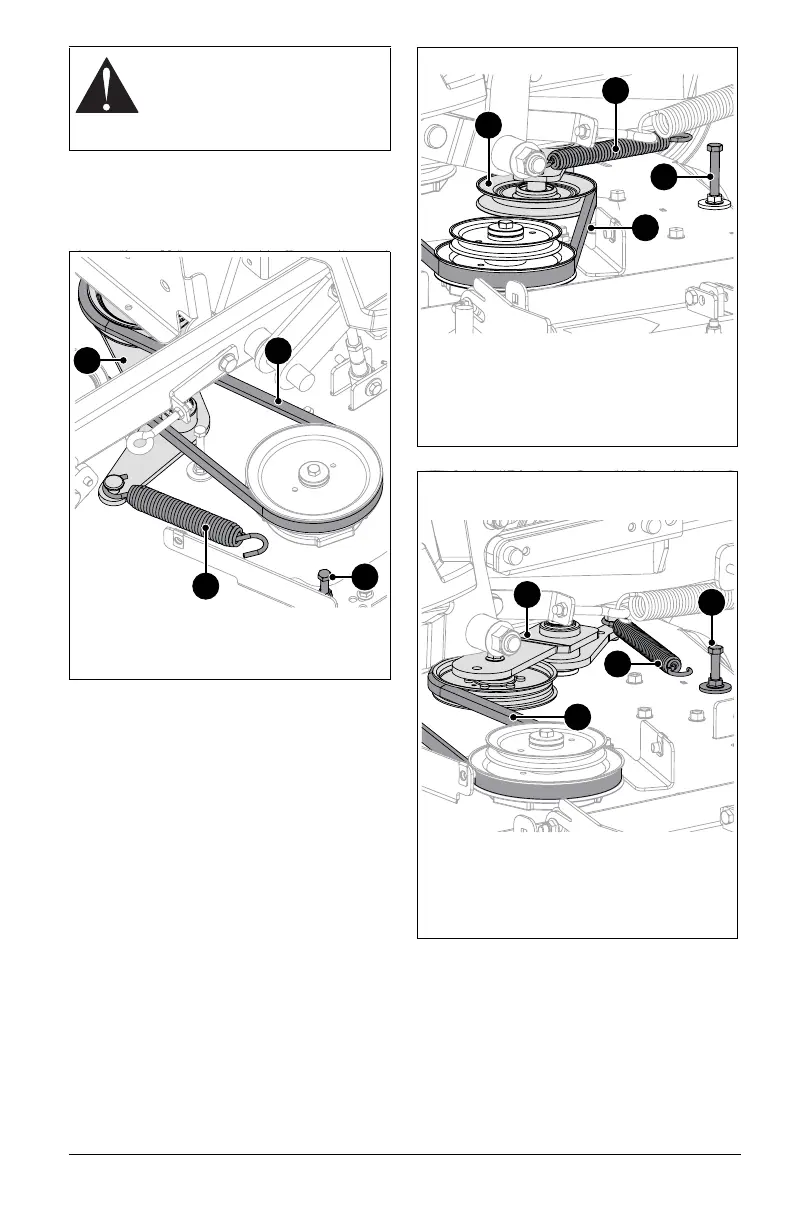

Figure 46
1. Spring
2. Anchor Bolt
3. PTO Belt Idler
4. PTO Belt
1
2
4
3
Figure 47
1. Spring
2. Anchor Bolt
3. Mower Drive Belt Idler
4. Mower Drive Belt
Models 992268, 992271, 992291, 992294
1
2
4
3
Figure 48
1. Spring
2. Anchor Bolt
3. Mower Drive Belt Idler
4. Mower Drive Belt
1
2
3
4
Models 992267, 992269, 992270, 992272,
992281, 992292, 992293, 992295
