EN - 37
3. Slowly remove spring hook from eye bolt
to release transaxle idler belt tension.
See Figure 51.
4. Remove hardware securing clutch stop
bracket to frame and remove bracket.
See Figure 52.
5. Remove clutch stop. See Figure 53.
6. Remove hardware retaining transaxle
skid plate and remove skid plate. See
Figure 54.
7. Remove transaxle drive belt from drive
system in the following order:
a. From right transaxle sheave.
b. From left transaxle sheave.
c. From engine sheave.
Install Transaxle Drive Belt
See Figure 55.
1. Install transaxle drive belt to drive system
in the following order:
a. Around left transaxle sheave.
b. Around engine sheave.
c. Around right transaxle sheave.
2. Align belt with idler pulley.
3. Reinstall idler spring hook onto eye bolt.
Make sure belt has tension and is aligned
in all pulleys.

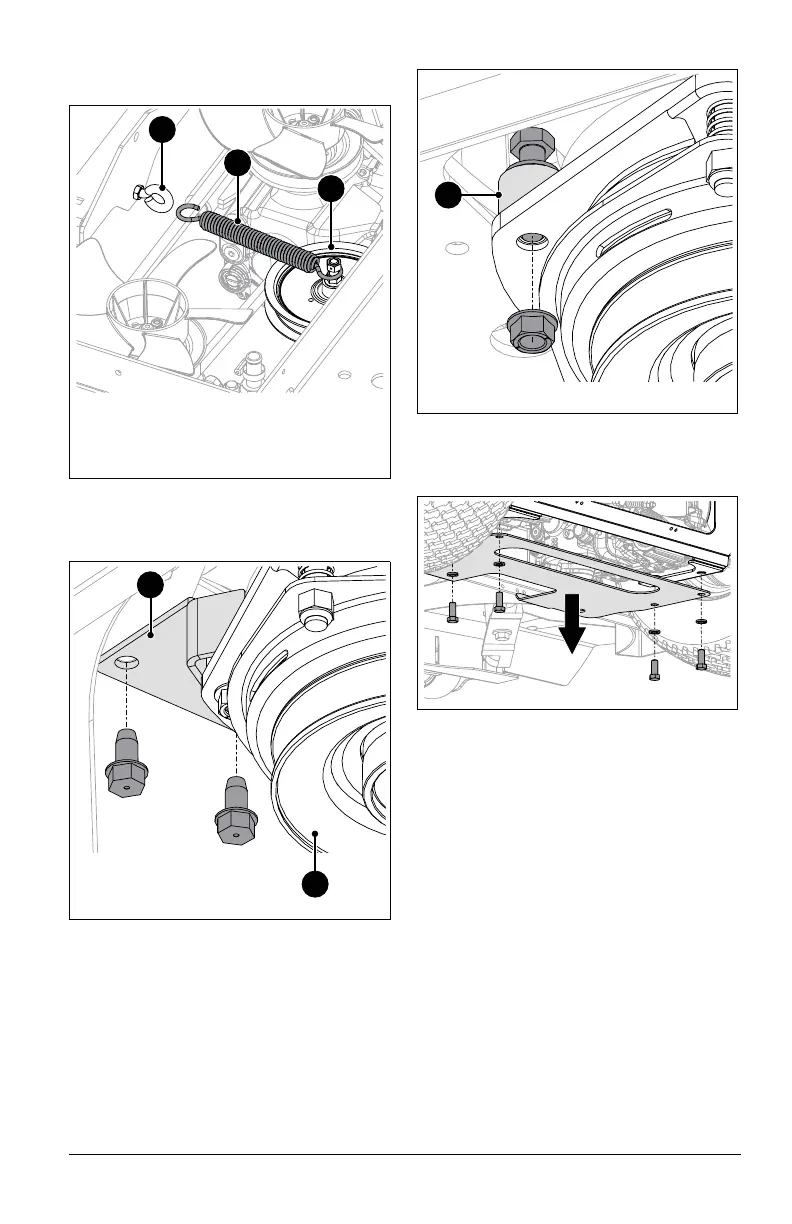

Figure 51
1. Transaxle Idler
2. Spring
3. Eye Bolt
1
2
3
Figure 52
1. Clutch Stop Bracket
2. Clutch
1
2
