9.1 STEERING AND DIRECTION
CONTROLS
1. Remove the tension spring, Figure 19.
2. Unbolt the steering rod end from the speed control
arm.
3. Remove the neutral adjustment weldment and
inspect woodruff key
4. Inspect bearing and pivot points for wear and
replace as needed.
5. Assemble in reverse order.

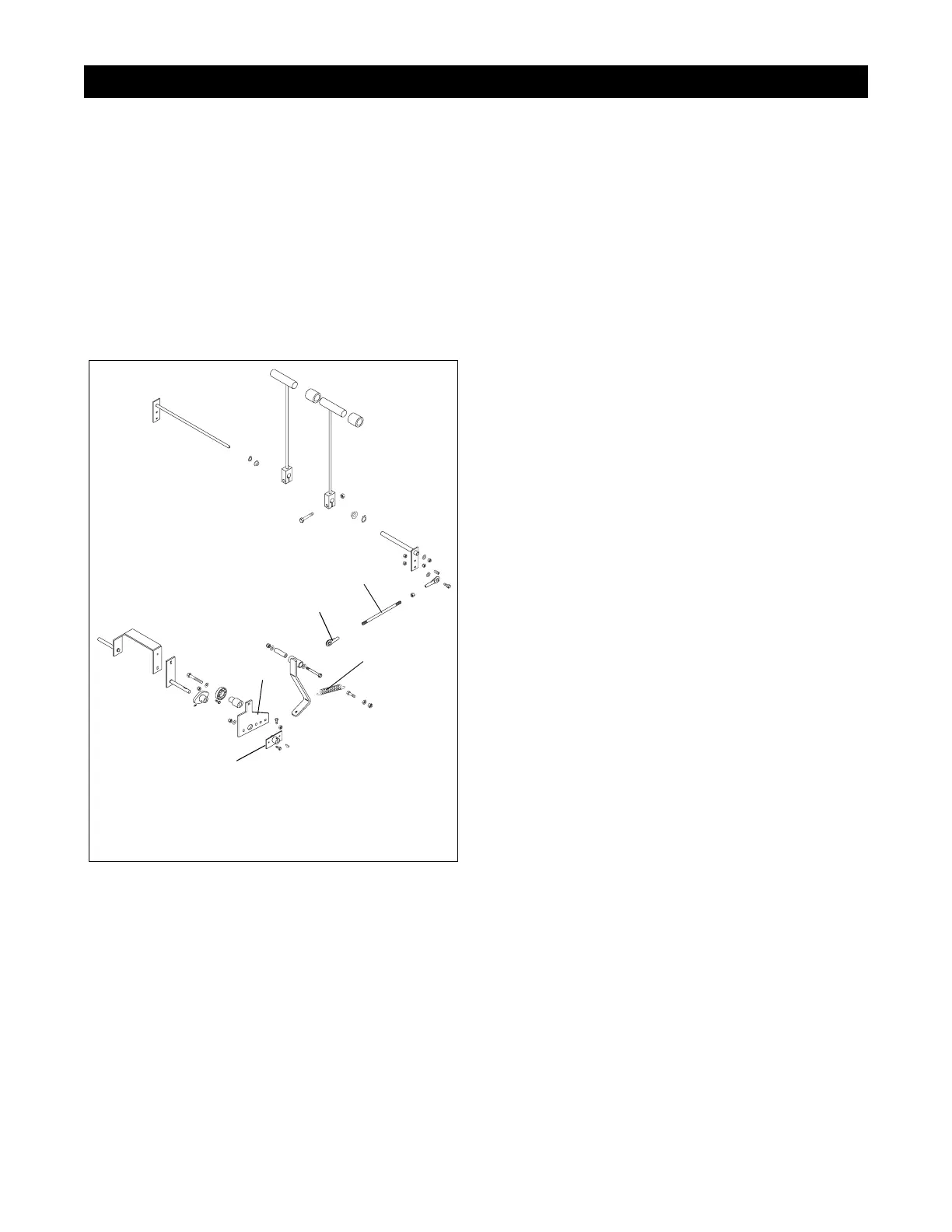

SECTION 9 - STEERING AND DIRECTION CONTOLS
PF2000
1
2
3
4
5
Figure 19
1. Steering Adjusting Rod
2. Rod End
3. Tension Spring
4. Speed Control Arm
5. Neutral Adjustment
Weldment
