Gravely Promaster 252 User Manual

GB - 14
1. Hood
2. Parking Brake Lever
3. Steering Levers
4. Mower Lift Lever (992123, 124, 126, 128, 129, 132, 133,
135, 137, 138, 139)
5. Seat Adjustment Lever
6. Seat Suspension Adjustment Knob
7. Fuel Shut-Off Valve
8. Axle Locks
9. Tie-Down Lugs
10.Height of Cut Indicator
11. Cylinder Stops (992123, 124, 126, 128, 129, 132, 133,
135, 137, 138, 139)
12.Anti-Scalp Rollers
13.Cylinder Stop Storage Post (992123, 124, 126, 128,
129, 132, 133, 135, 137, 138, 139)
14.Foot Board Latch
15.Mower Deck with Chute Deflector
16.Belt Cover
17.Fuel Tanks
18.PTO (Power Take-Off) Switch
19.Glow Plug Light (992121, 123, 125, 126, 136, 137, 138)
20.Ignition Switch
21.Coolant Temperature Gauge (992121, 123, 125, 126,
136, 137, 138)
22.Hour Meter
23.Oil Pressure Light
24.Charging System Light
25.Throttle Lever
26.Fuel/Water Separator Light (992121, 123, 125, 126,
136, 137, 138)
27.Oil Pressure / Coolant Temperature Light (992113, 117,
124, 130, 134, 135, 139)
28.Oil Pressure Light (992111, 115, 121, 123, 125,126, 127,
128, 129, 131, 132, 133, 136, 137, 138, 145)
29.Choke Control (992111, 113, 115, 117, 124, 127, 128,
129, 130, 131, 132, 133, 134, 135, 139, 145)

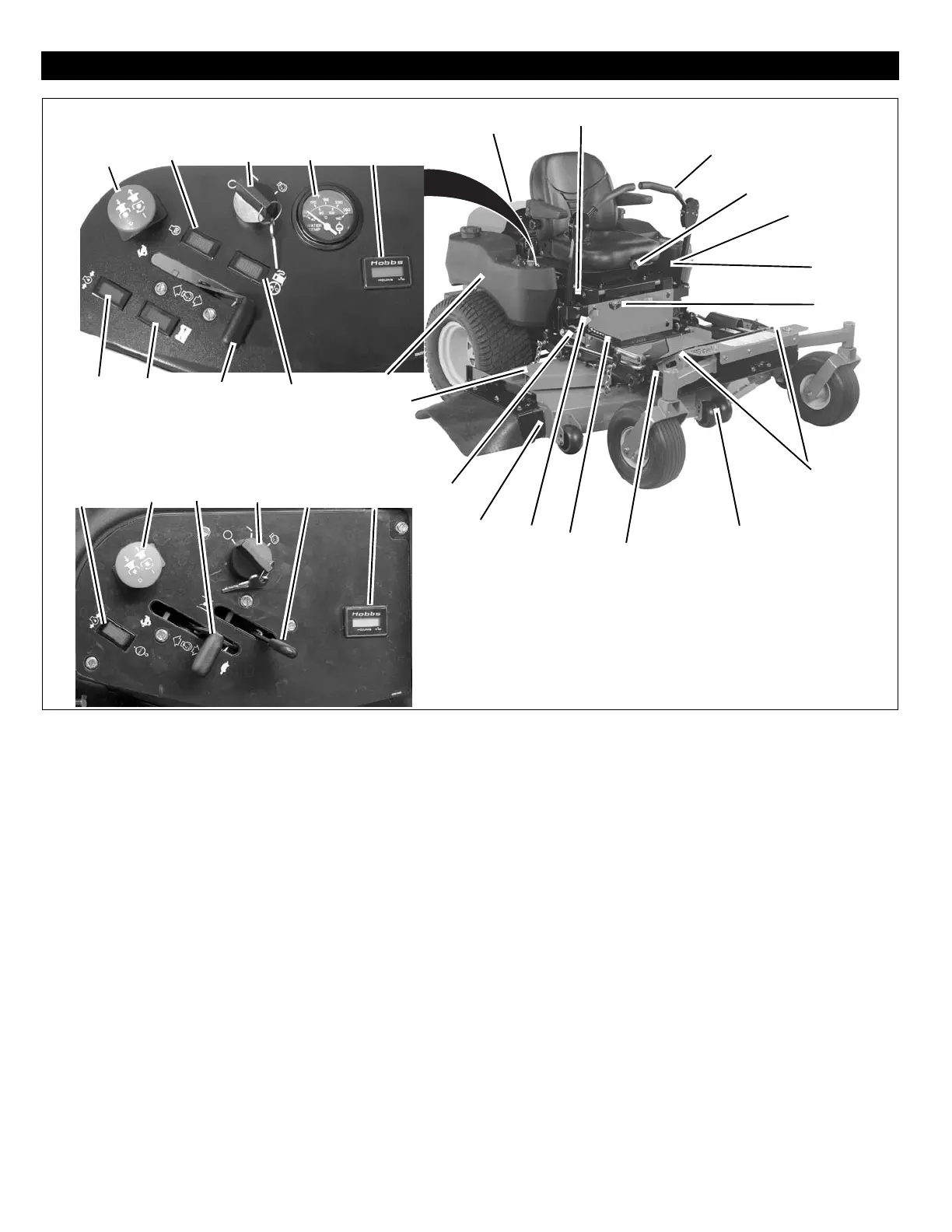

CONTROLS AND FEATURES
Figure 5
OF3223
1
17
3
4
5
6
7
2
8
9
12
15
16
14
18
20
23
24
21
25
Dash Panel for Models 992121, 123, 125, 126,
136, 137, 138
Dash Panel for Models 992111, 113, 115, 117,
124, 127, 128, 129, 130, 131, 132, 133, 134, 135,
139, 145
18
20
25
19
26
29
10
22
22
27 or 28
11, 13

Gravely Promaster 252 Specifications

General

Brand	Gravely
Model	Promaster 252
Category	Lawn Mower
Language	English
