GB - 12
Unpack Unit
Remove unit and all other components from shipping
container. Open bypass valves (see MOVING UNIT
MANUALLY on page 18). Push unit from container onto a
level surface. Close bypass valves.
Prepare Seat
Remove nuts from seat studs in hood frame. Peel off paper
backing from foam tape and place between hood frame and
chassis. Lift and rotate seat onto hood frame. Secure with nuts.

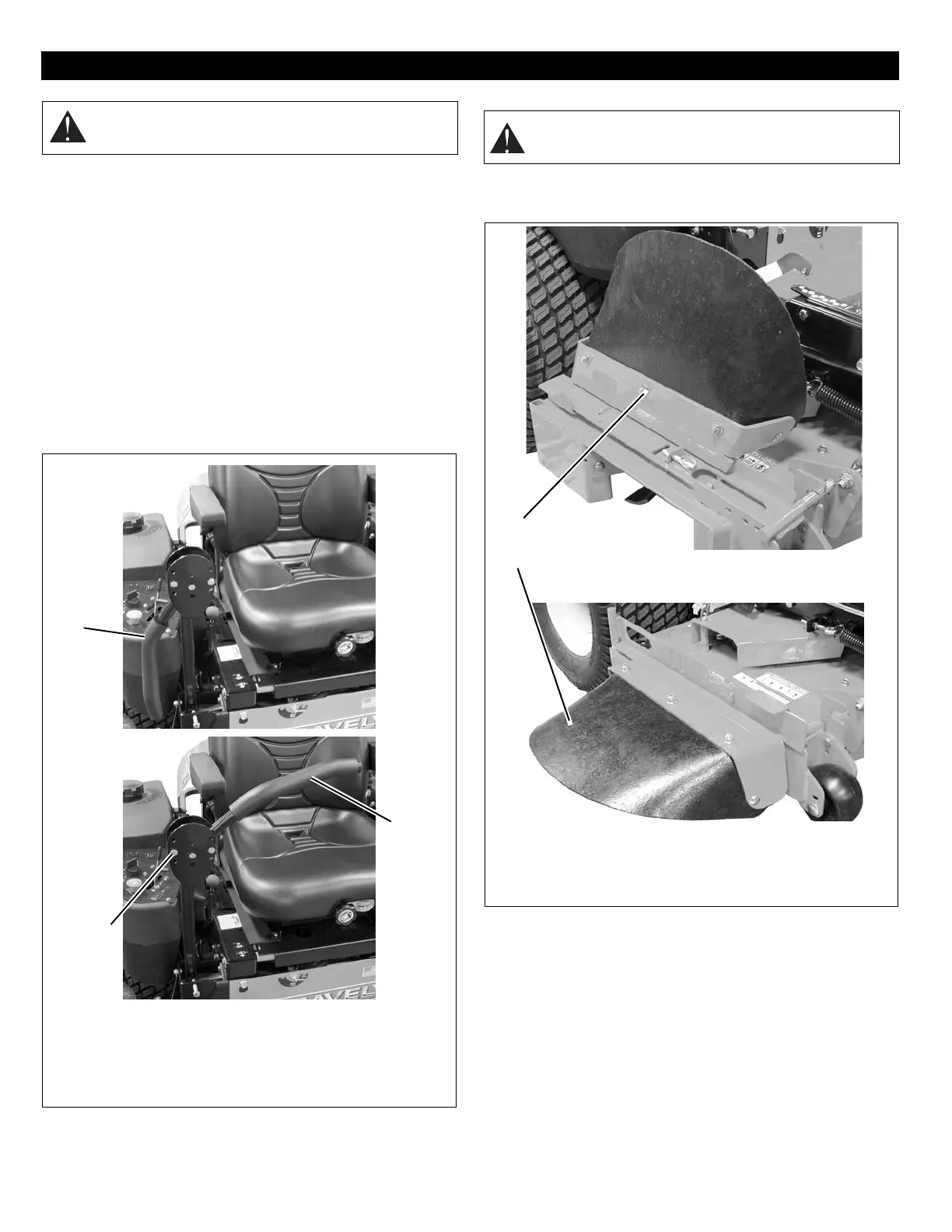

Install Steering Levers
Remove spacers, bolts, and nuts from steering levers. Turn
the steering levers into the operating position. Re-install
spacers, bolts and nuts. Tighten hardware securely
(figure 3).
Place Discharge Chute in Operating Position
Prior to operating the unit, remove the discharge chute from
the transport position and place the discharge chute in the
operating position
(figure 4)..
ASSEMBLY
WARNING: AVOID INJURY. Read and understand
entire Safety section before proceeding.
1. Steering Lever in
Shipping Position
2. Spacers and Hardware
3. Steering Lever in
Operation Position
OF3520
Figure 3
1
2
3
WARNING: Do not operate mower unless the
discharge chute is in the operating position.
1. Discharge Chute in
Transport Position
2. Discharge Chute in
Operating Position
Figure 4
1
2
