EN - 14

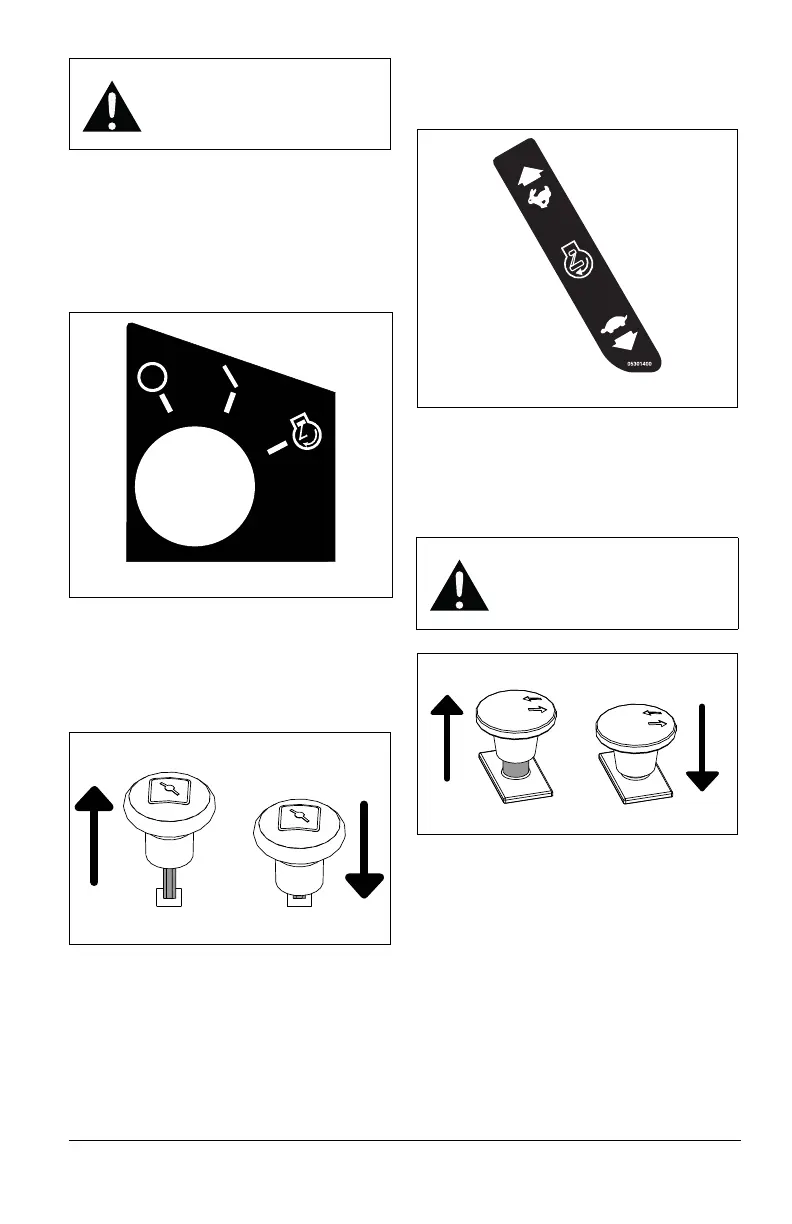

See Figure 6 for all controls and features
locations.
IGNITION KEY
See Figure 7.
Controls power to the engine. The key cannot
be removed when in run position.
CHOKE CONTROL KNOB
Models 991160, 162, 164, 166, 180, 182,
184, 186
See Figure 8.
Controls airflow to the engine.
THROTTLE CONTROL LEVER
See Figure 9.
Controls engine speed.
POWER-TAKE-OFF (PTO) KNOB
See Figure 10.
Controls power to mower blades. The engine
will not start with the PTO knob in the on
position.
HOUR METER
Displays the amount of time spent on
individual jobs, service alerts, and
recommended service intervals.
HEIGHT-OF-CUT ADJUSTMENT
SYSTEM
Sets the height of cut.
WARNING: AVOID INJURY.
Read and understand the
Safety section before
proceeding.
Figure 7
Off
Start
On
Figure 8
Choke On
Choke Off
WARNING: AVOID INJURY.
Blades will not immediately
stop after pushing PTO knob
down to off position.
C
Figure 9
Fast
Slow
Figure 10
Blades Off
Blades On
