Gravely ZT HD 48 User Manual

EN - 15
TRANSPORT LOCK RELEASE
LEVER
See Figure 11.
Releases deck from transport lock position.
DECK LIFT PEDAL
Raises mower deck to change height-of-cut
setting.
SEAT ADJUSTMENT LEVER
Unlocks seat to allow operator to move seat
forward or backward and then lock in desired
position.
PARKING BRAKE LEVER
See Figure 12.
Controls the parking brake. The engine will
not start with brake in the off position.
SAFETY INTERLOCK SYSTEM
Monitors the interaction of various unit
features for operator safety.
STEERING LEVERS
Control the direction and speed of unit. The
levers gradually return to neutral when
released and are locked in neutral when
parking brake is set.
TRANSAXLE BYPASS LEVERS
Engage and disengage the transaxles so unit
may be moved with the engine off.

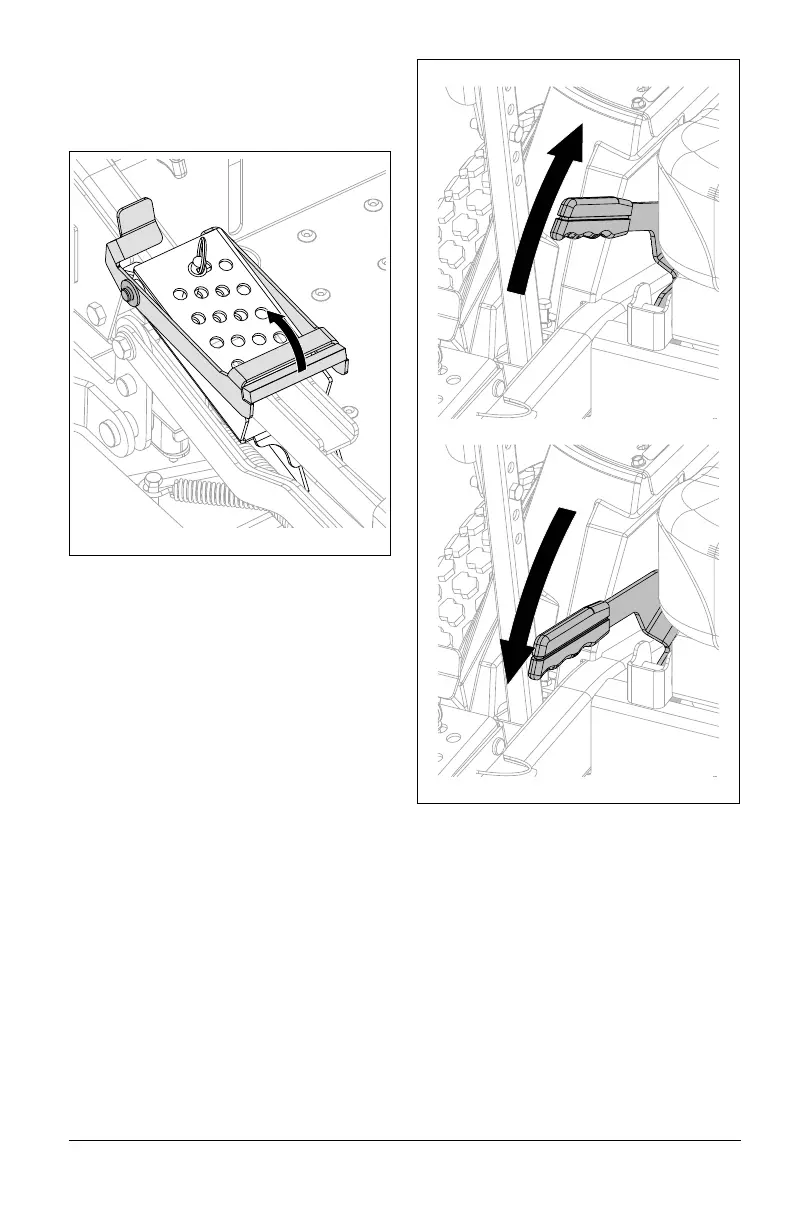

Figure 11
Figure 12
Brake Released (Off)
Brake Engaged (On)

Gravely ZT HD 48 Specifications

General

Engine Brand	Kawasaki
Engine Model	FR691V
Horsepower	23 HP
Cutting Width	48 inches
Transmission Type	Hydro-Gear ZT-3100
Deck Material	10-gauge steel
Engine Type	V-Twin
Engine Displacement	726cc
Ground Speed Forward	8.5 mph
Ground Speed Reverse	4 mph
Deck Type	Fabricated
Turning Radius	Zero-turn
Cutting Height	1.5 to 5 inches
Spindle Material	Aluminum
Warranty	4 years or 500 hours
Seat Type	High-back
