Gree 3VIR12HP230V1AO User Manual

20
Technical Information
Service Manual
Indoor unit
Outdoor unit
COOLING
HEATING
4-Way valve
Discharge
Suction
Heat
exchanger
(evaporator)
Heat
exchanger
(condenser)
Valve
Valve
Liquid pipe
side
Gas pipe
side
Accumlator
Compressor
Strainer Strainer
Electron
expansion
valve
Connection pipe specication:
Liquid pipe:1/4"
Gas pipe: 5/8" (24K)

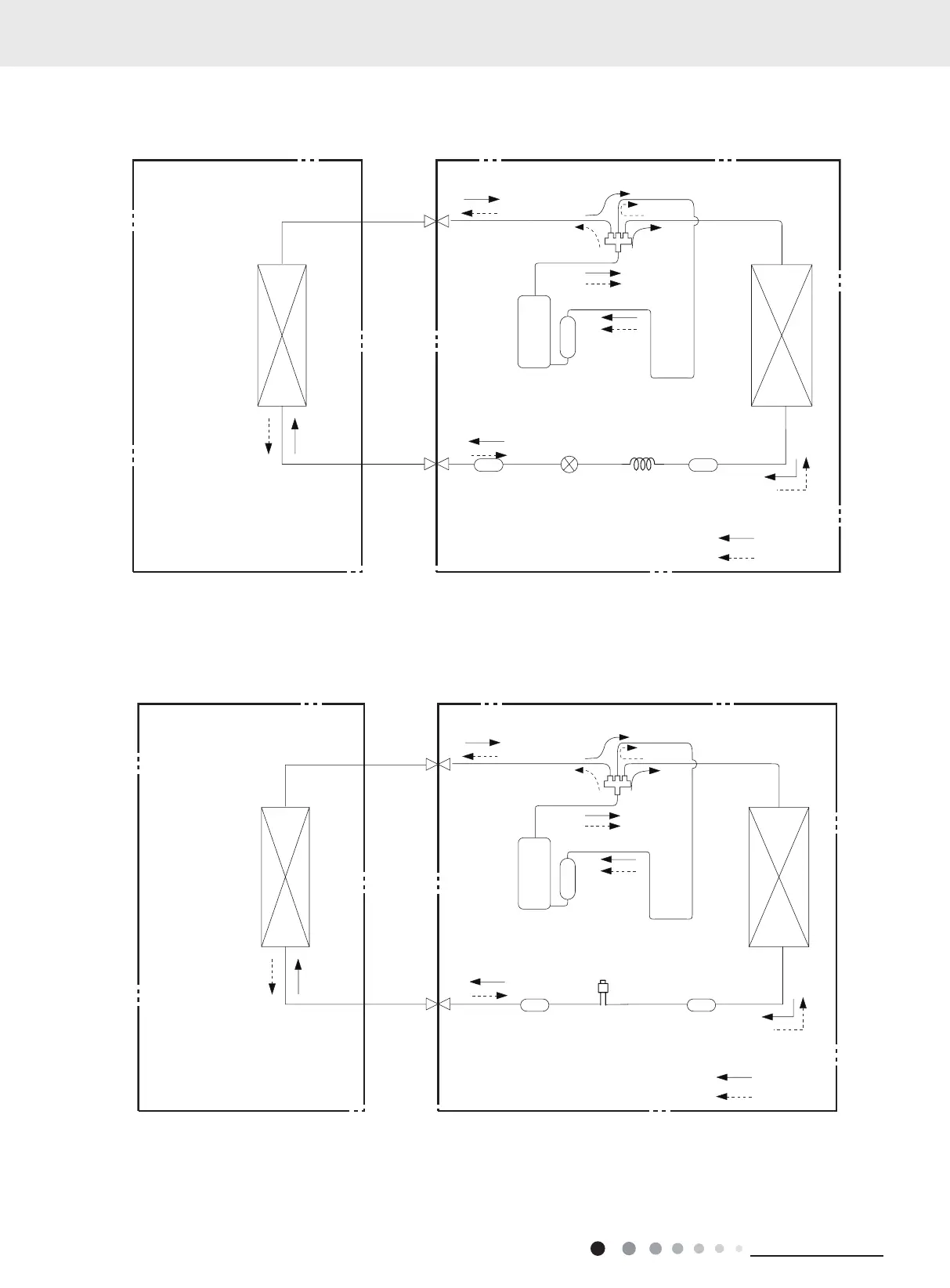

4. Refrigerant System Diagram
Connection pipe specication:
Liquid pipe:1/4"
Gas pipe:5/8" (18K)
Indoor unit
Outdoor unit
COOLING
HEATING
4-Way valve
Discharge
Suction
Heat
exchanger
(evaporator)
Heat
exchanger
(condenser)
Valve
Valve
Liquid pipe
side
Gas pipe
side
Strainer
Electron
expansion
valve
Strainer
Accumlator
Compressor
Capillary
Cooling and heating model

Gree 3VIR12HP230V1AO Specifications

General

Brand	Gree
Model	3VIR12HP230V1AO
Category	Fan
Language	English
