Cassette Type Fan Coil Unit
13
If the supply cord is damaged, it must be replaced by the manufactory or its service agents
or a similarty qualied person in order to avoid a hazard.
After the installation of the water tube and motorized valve is nished, connect the wire of
the motorized valve to the unit shown as Fig.19.
10.1 Wiring of unit and the controller
The appliance shall be installed in accordance with national wiring regulations.
the "WIRING DIAGRAM" in the manual is reference. The correct wiring should agree with
the "WIRING DIAGRAM "on controller box of the unit.

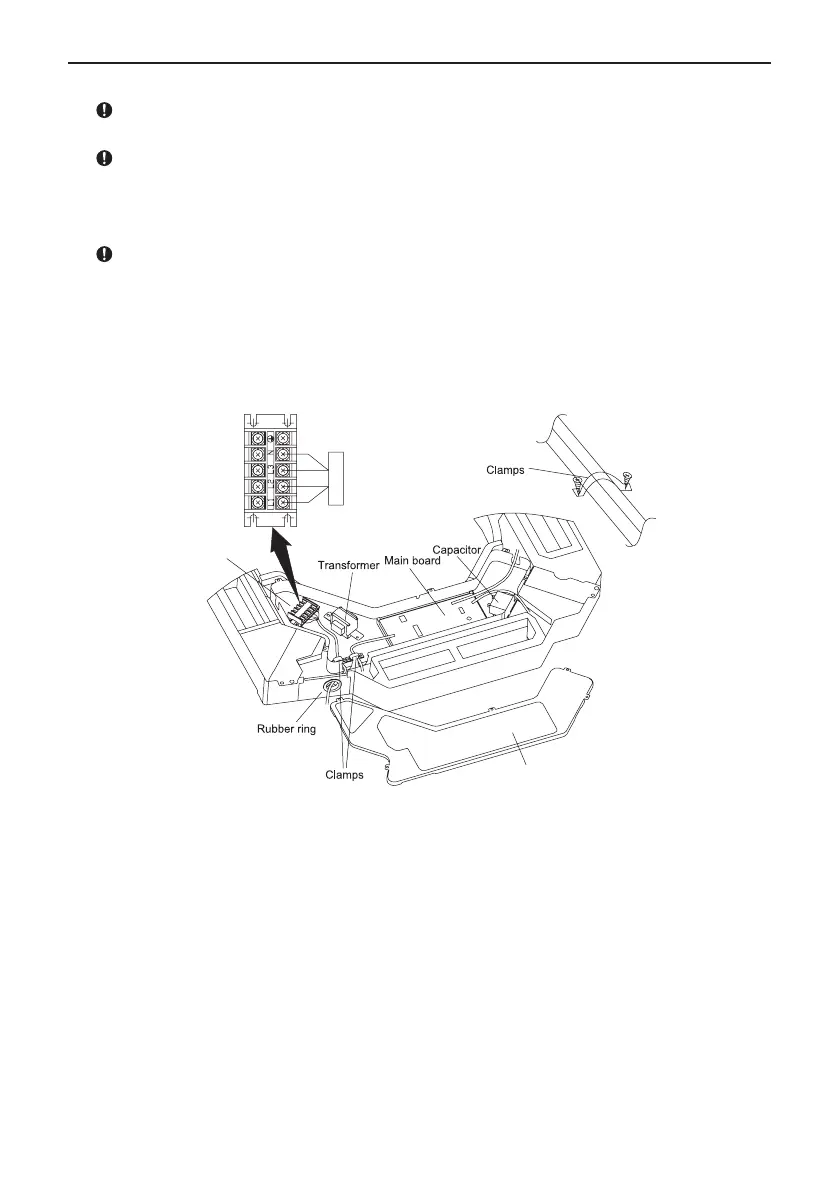

1) Remove the control box lid (1). Pull the wires inside through rubber bush I and wiring
according to the “ WIRING DIAGRAM ”, then tighten it with clamp.After wiring, tighten it with clamp
and x the control box lid(1).(2) (as Fig.25~26).
2) When the wiring is completed, take a careful check and then start the water pump and unit
to see if the motorized valve works normally.
Teminal board
Cover
Fig.25
