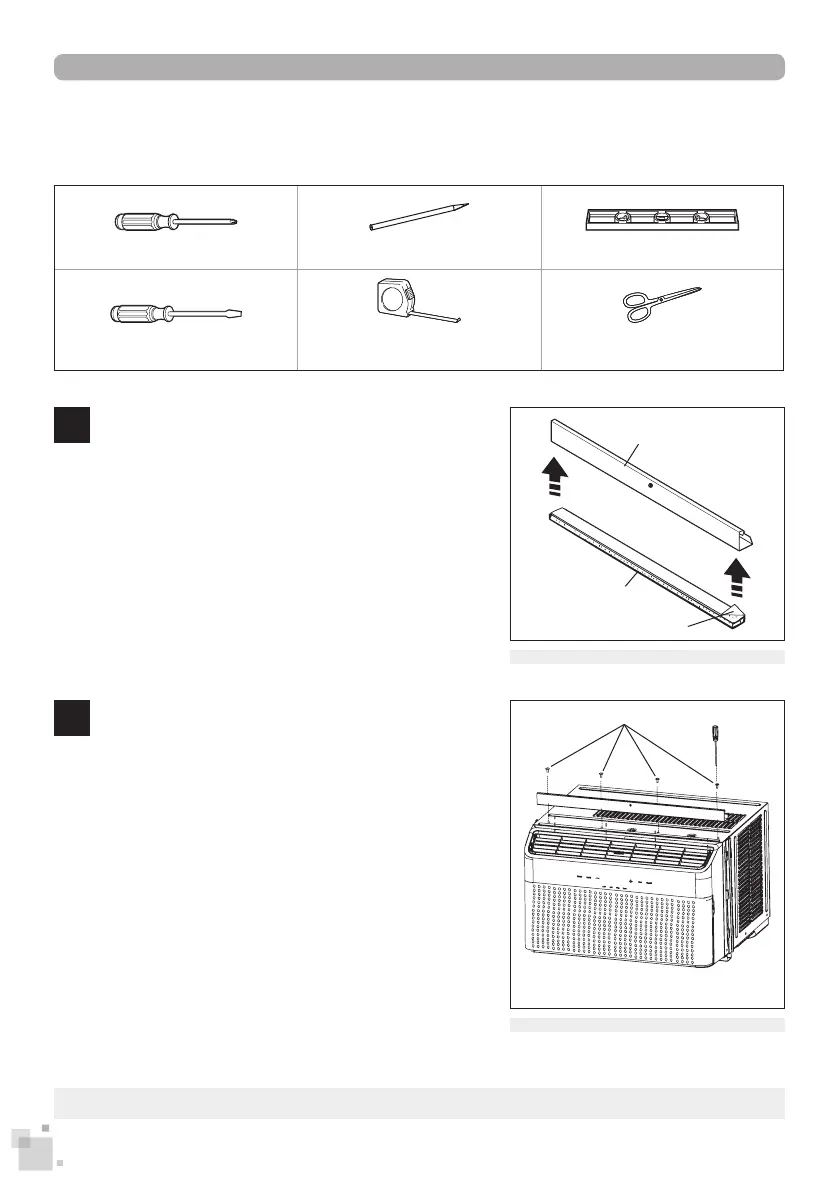

3. AIR CONDITIONER INSTALLATION
3.2. INSTALLATION INSTRUCTIONS
Required Tools
Phillips-head screwdriver Pencil Level
Flat-head screwdriver Ruler or measuring tape Scissors or x-acto knife
Peel the lm from the back of the adhesive foam seal C.
Align the strip with the lower edge of the top mount-
ing rail, then press it onto the mounting rail to seal
completely.
1
FIGURE 5
Top mounting rail
Foam seal C
Peel off the protective lm.
Use the type A screws provided to x the top mounting
rail to the outer case of the air conditioner (the mount-
ing rail may be attached on some models).
Note : For safety reasons, all four screws must be fas-
tened SECURELY.
2
FIGURE 6
Type A screws (4)
NOTICE : This picture is for reference only. Please refer to the actual product for the appearance.
