4. OPERATION GUIDE
4.4. AIRFLOW DIRECTION ADJUSTMENT
4.5. CHANGEOVER TO EXTERNAL DRAINING
NOTICE : This picture is for reference only. Please refer to the actual product for the appearance.
Adjustment knob

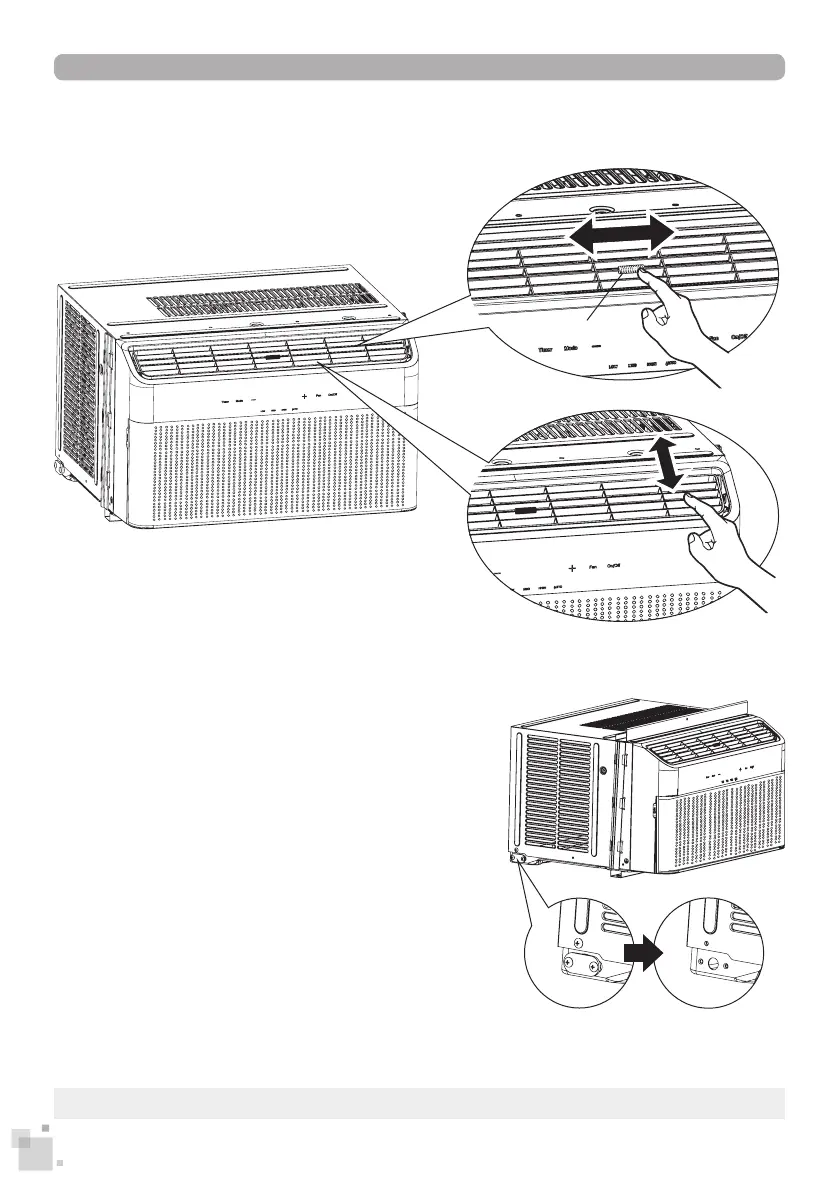

Horizontal Airow Adjustment
Adjust the vertical aps to the left or right to direct
the airow according to your preference using
the adjustment knob.
For maximum cooling efciency, the air condi-
tioner is designed to spray condensate on the
condenser coil. If the splashing noise bothers
you, you have the option to switch to external
draining using the following procedure. This may
however result in a slight loss of performance.
▪ The air conditioner is equipped with a drain hole
that is sealed with a plug (A).
▪ Remove the screws securing the drain plug at
the base of the unit to allow the condensate to
drain to the outside (B).
Vertical Airow Adjustment
Adjust the horizontal aps up or down to direct
the airow according to your preference.
A B
