(1) An all-pole disconnection switch having a contact separation of at least 3mm (1/8 inch) in all
poles should be connected in fixed wiring.
(2) The circuit breaker and power cord specification in above sheet are based on max power (max
current) of the unit.
(3) The power cord specification in above sheet is based on ambient temperature of 40°C (104°F).
(4) The circuit breaker specification in above sheet is based on ambient temperature of 40°C
(104°F). If the working condition is different, please adjust it according to the specification sheet
of circuit breaker.
4 Installation Instructions
4.1 Installation of Indoor Unit
4.1.1 Ceiling opening Dimension and suspension bolt position.

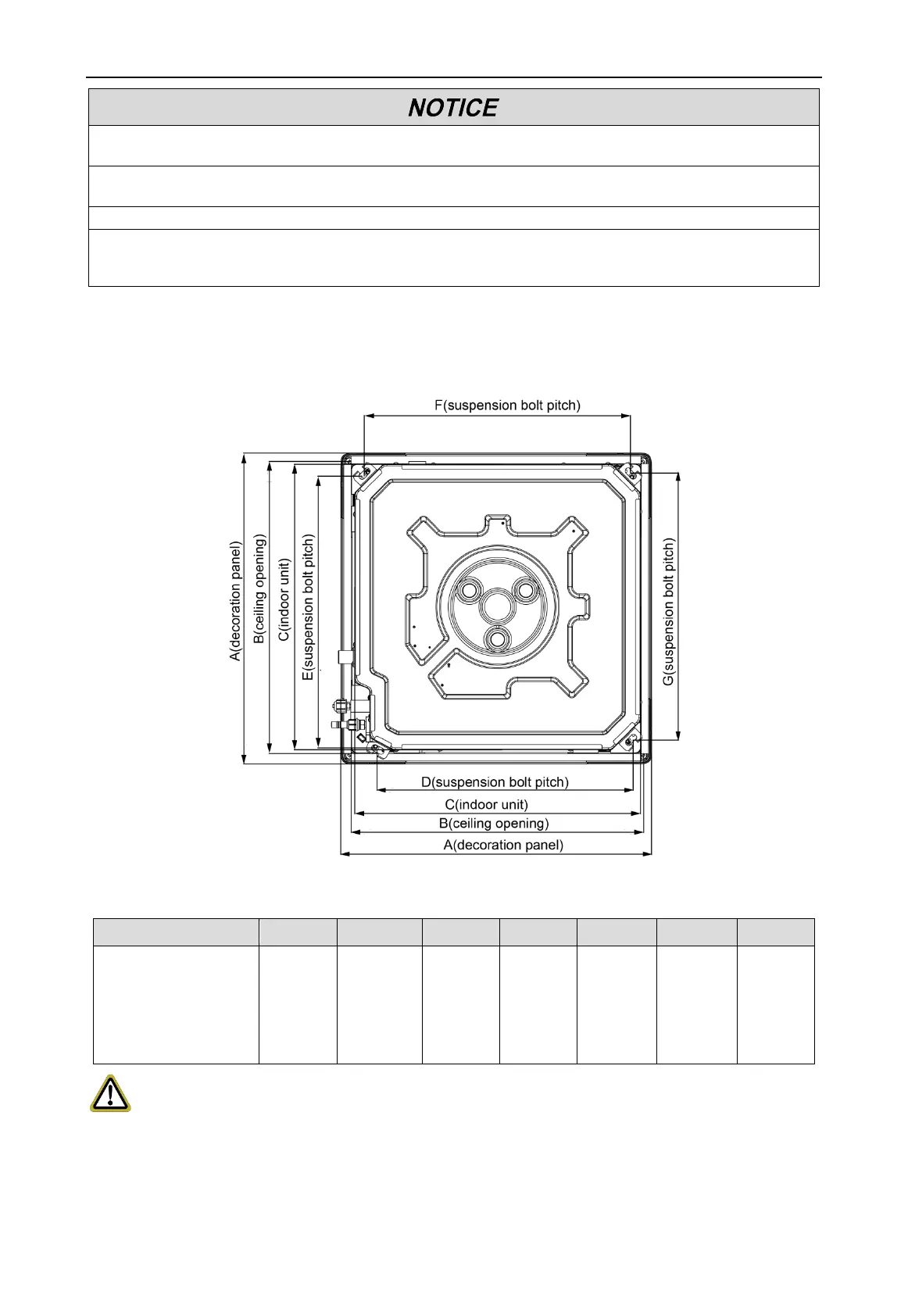

Fig.4.1.1
Unit: mm (inch)
Model
A
B
C
D
E
F
G
GMV-ND05T/E-T(U)
GMV-ND07T/E-T(U)
GMV-ND09T/E-T(U)
GMV-ND12T/E-T(U)
GMV-ND15T/E-T(U)
GMV-ND18T/E-T(U)
620
(24-3/8)
580
(22-13/16)
570
(22-7/16)
505
(19-7/8)
550
(22-5/8)
530
(20-7/8)
530
(20-7/8)
IMPORTANT!
The drilling work and installation of unit must be carried out by qualified
personnel.
