Gree GMV-ND05T/E-T Owner's Manual

Multi Variable Air Conditioners Compact Cassette Type Indoor Unit
17
4) Use the screwdriver for tightening the terminal.

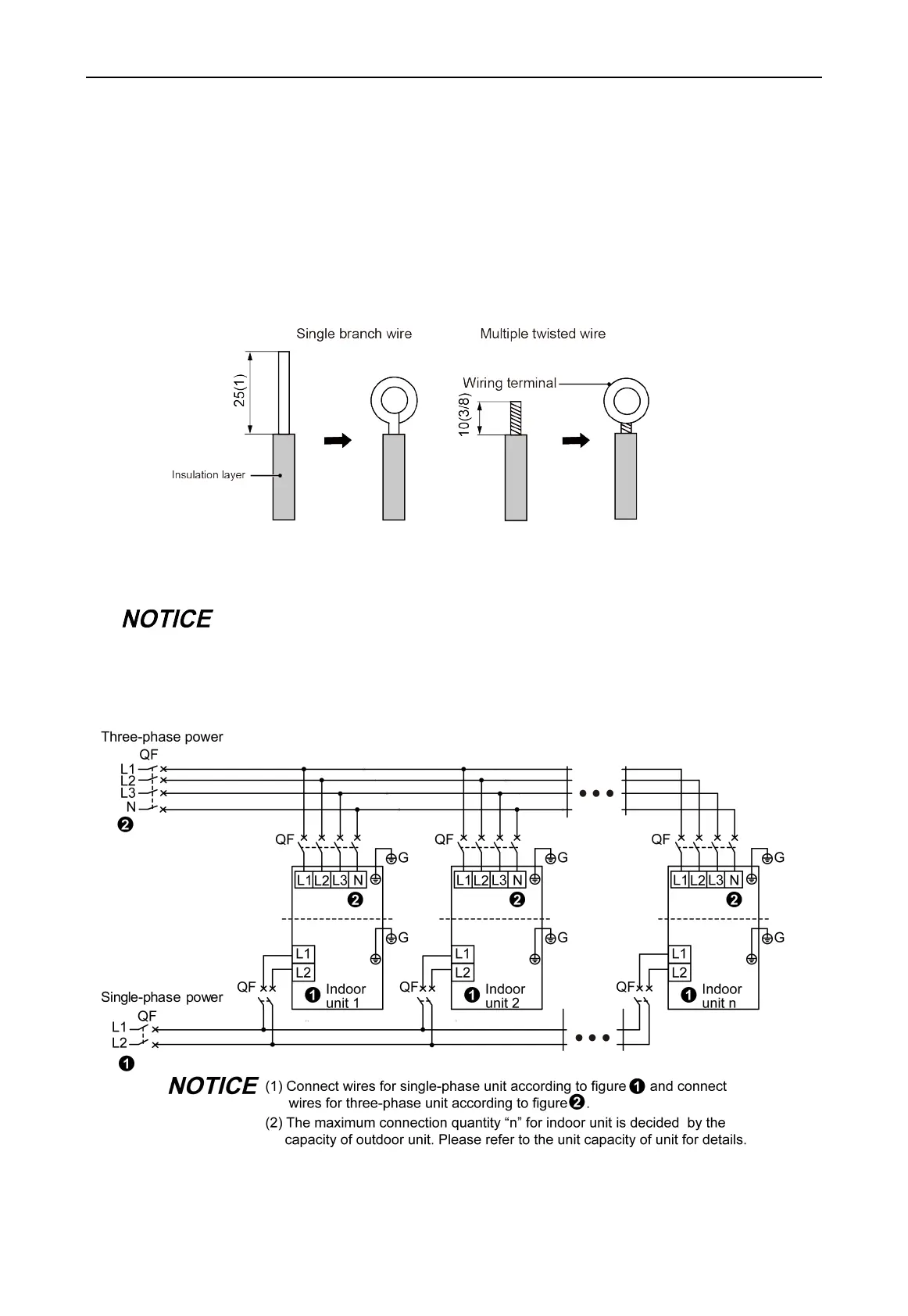

(2) The connection of stranded wire (as shown in Fig.5.1.2)
1) Strip about 10mm (3/8 inch) insulation of the end of stranded wire by stripping and cutting
tool.
2) Loosen the wiring screws on terminal board.
3) Insert the wire into the ring tongue terminal and tighten by crimping tool.
4) Use the screwdriver for tightening the terminal.
Unit: mm (inch)
Fig.5.1.1 Fig.5.1.2
5.2 Power Cord Connection
Every unit should be equipped with a circuit breaker for short-circuit and overload
protection. In general, circuit breaker is at OFF status.
During operation, all indoor units and outdoor units belonging to the same system must be kept
energized status. Otherwise, the unit can’t operate normally.
Fig. 5.2.1
