Multi Variable Air Conditioners Compact Cassette Type Indoor Unit
3

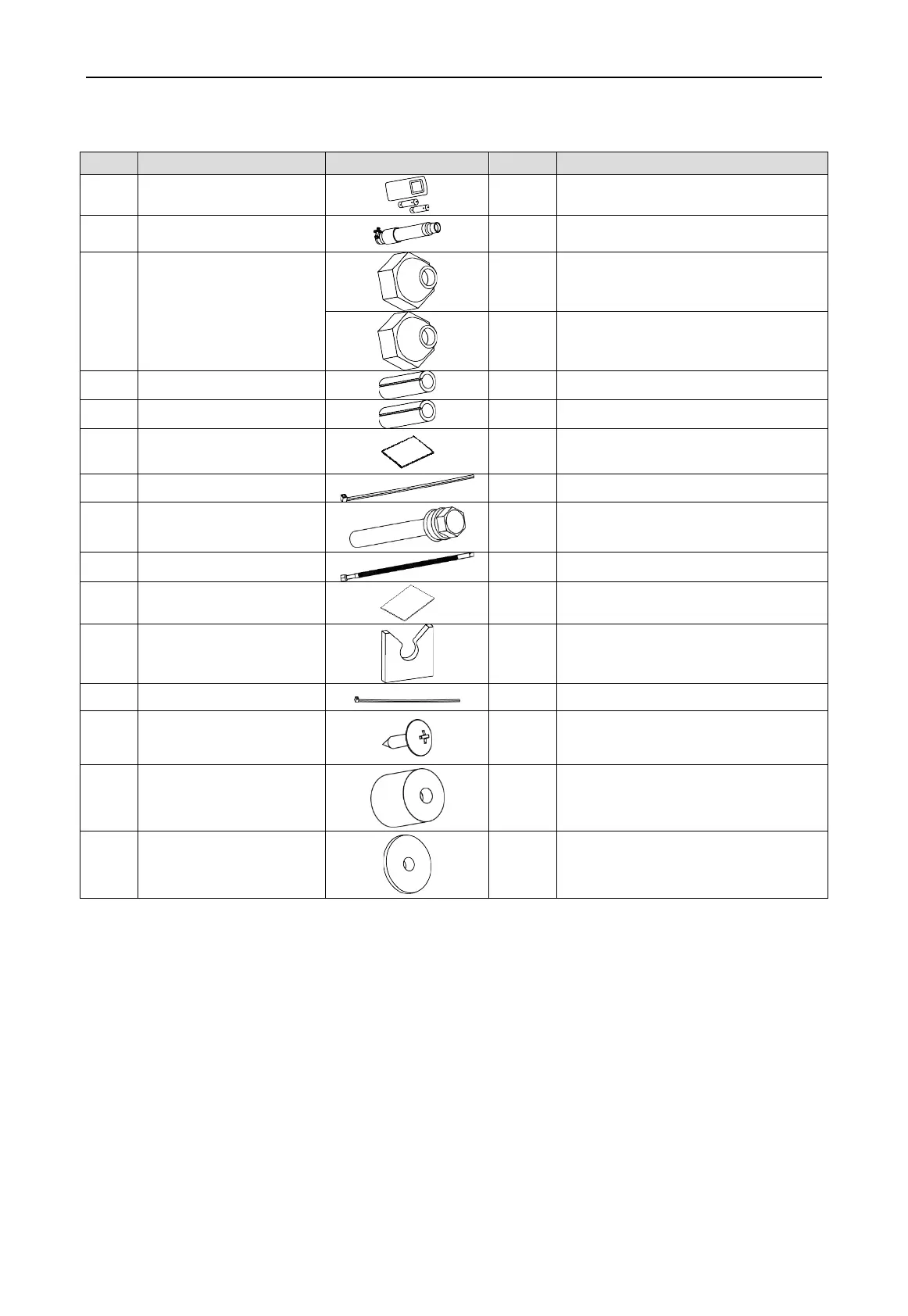

3.1 Standard Fittings
Please use the supplied standard fittings listed below as instructed.
1 Remote controller
1+2 To control the indoor unit.
2 Drainage hose assembly
1 To connect the drainage pipe.
3 Special Nut
2 GMV-ND05~15T/E-T(U)
1 GMV-ND18T/E-T(U)
4 Insulation
1 To insulate the gas pipe.
5 Insulation
1 To insulate the liquid pipe.
6 Flannelette
1
To prevent the communication wire from
reaching out the electric raceway.
7 Fastener(300mm)
1 To fasten the sponge.
8 Bolt sub-assy
4 Fix the panel.
9 Corrugated pipe
1 GMV-ND18T/E-T(U)
10 Sponge
4 To insulate the drain pipe.
11 Gasket Mounting Board
1 Used to prevent gasket from falling off.
12 Fastener(200mm)
4 To fasten the sponge.
13 Bolt with Washer
4
To fix the installation paperboard on the
unit.
14 Enswathement
2
Used for winding the pipe connecting the
indoor and outdoor units.
15 Washer
10
To be used together with the hanger bolt
for installing the unit.
3.2 Installation Position Selection
(1) The location should be able to withstand the weight of unit.
(2) The water can be drained conveniently from drainage pipe.
(3) There should be no obstruction near air inlet and air outlet.
(4) Follow the installation distance required in the figure below to ensure sufficient space for
maintenance.
(5) The installation location should be far from heat sources, flammable or explosive gas, or
smog spread in the air.
(6) The appliance shall not be installed in the laundry.
(7) Appliances are not accessible to general public.
(8) The indoor unit, outdoor unit, power cord and connection electricity wire should be at least
