Gree GMV-ND22PHS/B-T User Manual

Multi Variable Air Conditioners Ducted Type Indoor Unit
3
2 Product Introduction

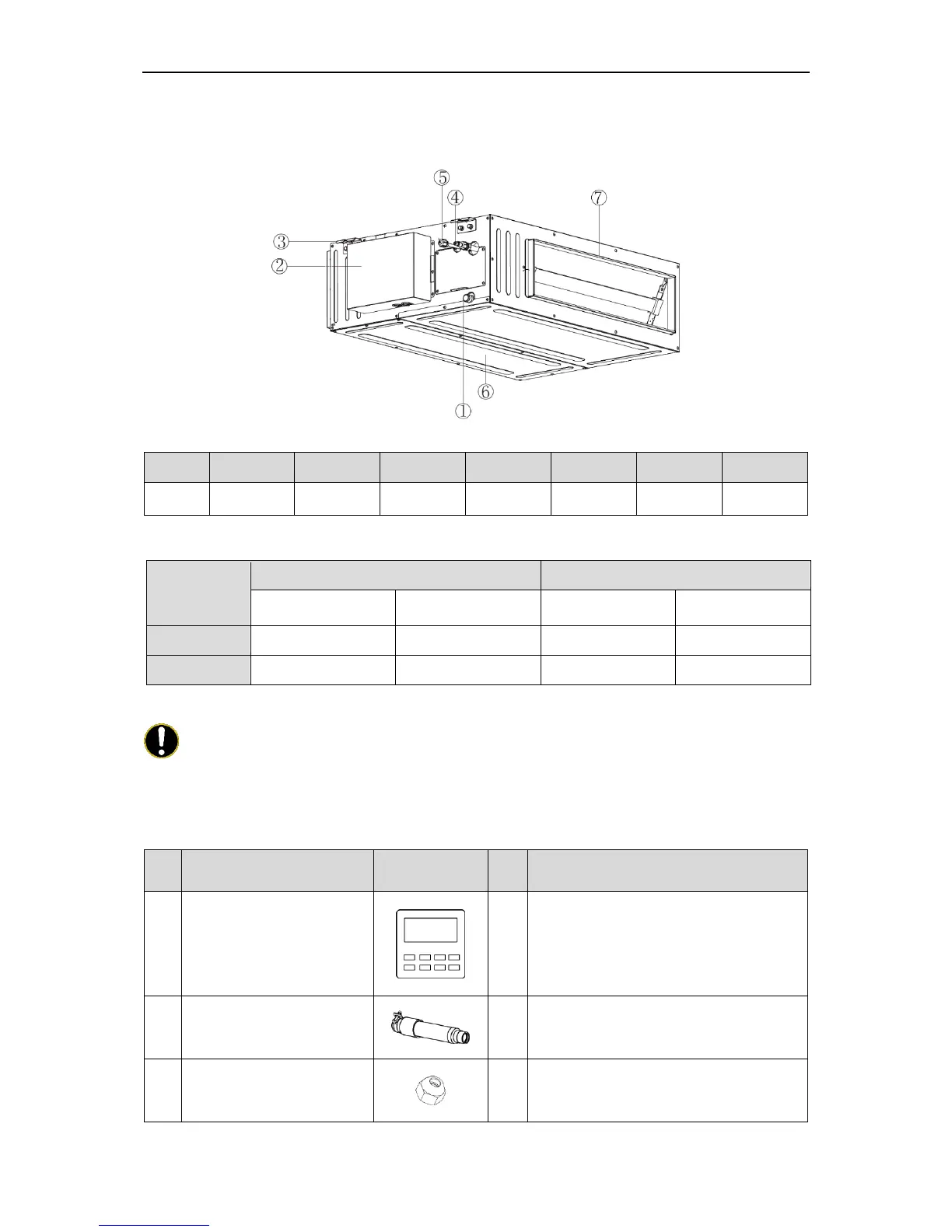

2.1 Names of Key Components
Fig 2.1
No.
①
②
③
④
⑤
⑥
⑦
Name
Drain Pipe
Control
box
Pothook
Gas pipe
Liquid pipe
Air-return
Opening
Air Outlet
2.2 Rated Working Condition
Indoor Side Condition
Outdoor Side Condition
Dry Bulb Temp℃(℉)
Wet Bulb Temp℃(℉)
Dry Bulb Temp℃(℉)
Wet Bulb Temp℃(℉)
Rated Cooling
27(80.6)
19(66.2)
35(95)
24(75.2)
Rated Heating
20(68.0)
15(59.0)
7(44.6)
6(42.8)
3 Preparations for Installation
Note:
Product graphics are only for reference. Please refer to actual products. Unspecified
measure unit is mm.
3.1 Standard Fittings
Please use the supplied standard fittings listed below as instructed.
No.
Name
Appearance
Q'ty
Usage
1
Wired Controller
1
To control the indoor unit
2
Drain Hose Assembly
1
To connect with the hard PVC drain pipe
3
Special Nut
1
To be used for connecting the refrigerant
pipe
