Instruction of the GMV D.C. inverter

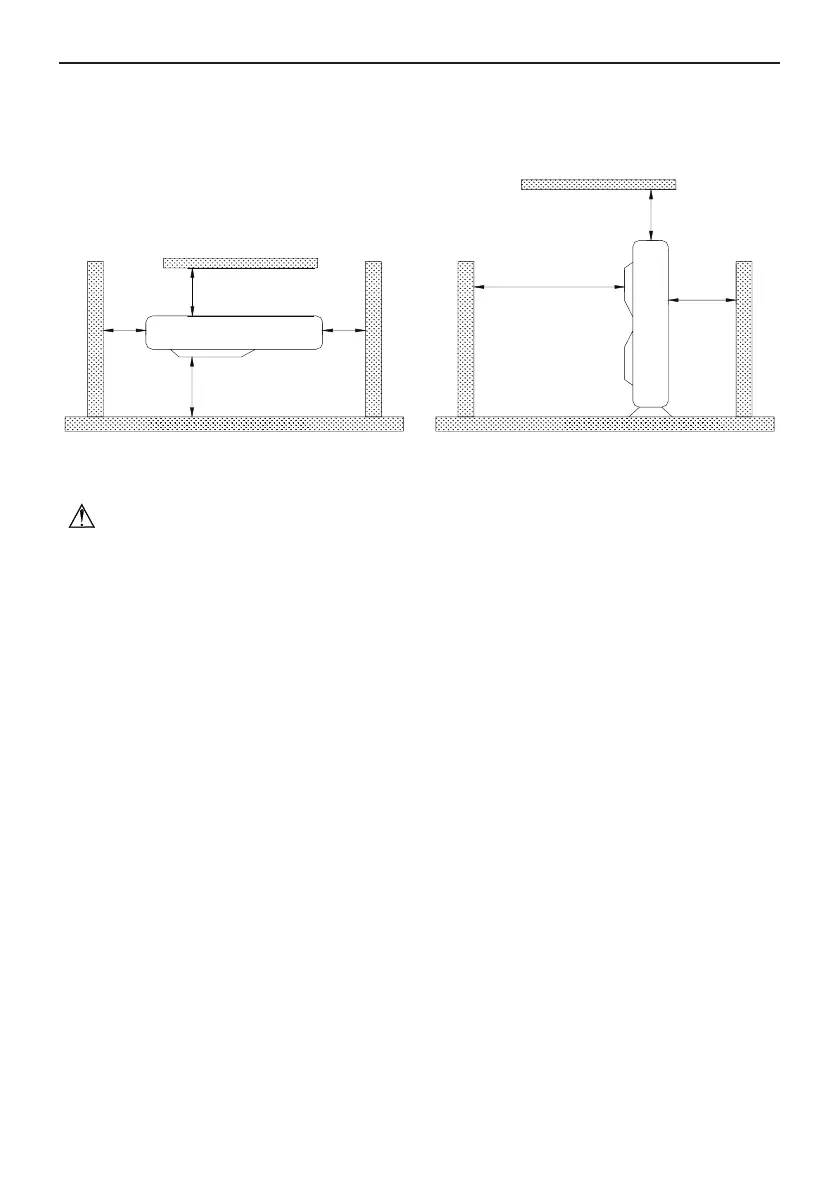

3.2.2 Space dimension for installation of the unit is shown below.

GMV-Pd100W/NaB-K,GMV-Pd120W/NaB-K,GMV-Pd140W/NaB-K,GMV-Pd160W/NaB-K,GMV-

Pd140W/NaB-M,GMV-Pd160W/NaB-M Outdoor Unit Installation Space Dimension

＞500 ＞500

＞500

＞500＞2000

＞1000

＞2000

Outdoor unit shall be installed on a concrete base 10cm high.

3.3 Electrical Cable Connection

Cautions!

① .

Outdoor unit and indoor unit may be of unied power supply or separate power supply. But

the indoor units must be of unied power supply.

② .

Be sure install a circuit breaker that can cut off the power of complete system.

3.3.1 Power Cable Connection:

1). Pass the cable though rubber ring.

2). GMV-Pd100W/NaB-K,GMV-Pd120W/NaB-K,GMV-Pd140W/NaB-K,GMV-Pd160W/NaB-

K,GMV-Pd140W/NaB-M,GMV-Pd160W/NaB-M to connect the power cable to the terminal

marked “L & N” and earthing screws.

3). Fix the cables with cable clamp.

3.3.2 Connection of Distribution (Communication) Line:

1). Open the electric box on outdoor unit.

2). Pass the distribution (communication) line into the base and through the rubber ring of

electrical box.

3). Insert the distribution (communication) line into 3-pin terminal CN10 or CN20 on outdoor

unit circuit board.

4). Fix the distribution (communication) lines properly.

5). Put back the junction cover plate and tighten the screws. Cover up the panel.
