U-Match Series DC Inverter Service Manual
127
4. DISASSEMBLY AND ASSEMBLY
PROCEDURE OF MAIN PARTS
4.1 Outdoor Unit
 09/12k

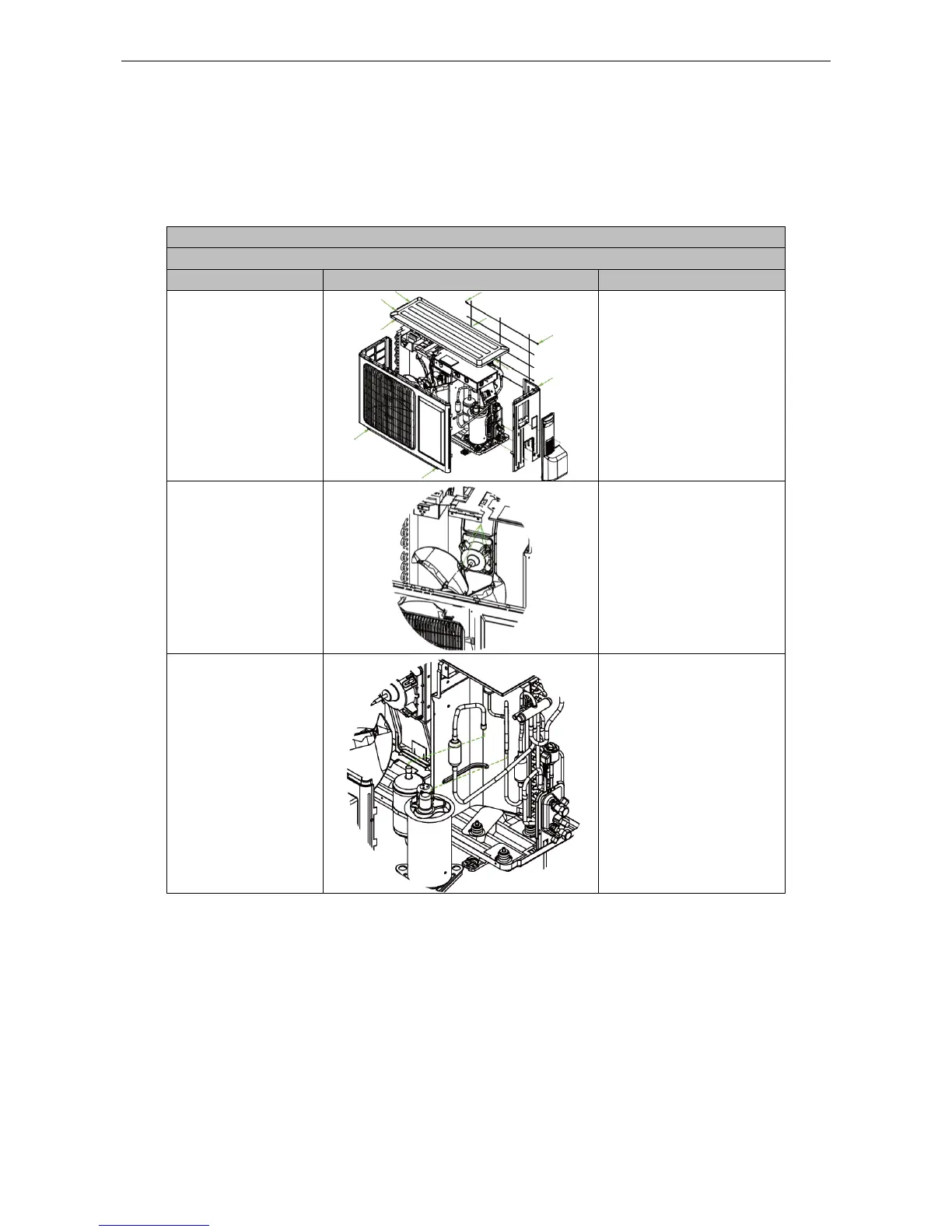

Disassembly and Assembly of external casing
Remark :
Step
Illustration
Handling Instruction
1. Remove external
casing
1. Remove the top cover and
handle;
2. Remove the grille, outer
case and right side plate.
2. Remove motor
1. Remove the blade nut and
then remove the blade;
2. Remove the motor from
motor support.
3. Remove compressor
1. Discharge the refrigerant
inside the pipeline and
recycle the refrigerant during
discharging;
2. Unsolder the 4-way valve
assy from compressor;
3. Remove the nut fixing
compressor;
4. Take away the compressor
from chassis.
