Gree GTH24K3FI User Manual

U-Match Series DC Inverter Service Manual
25
3.2 Operation View

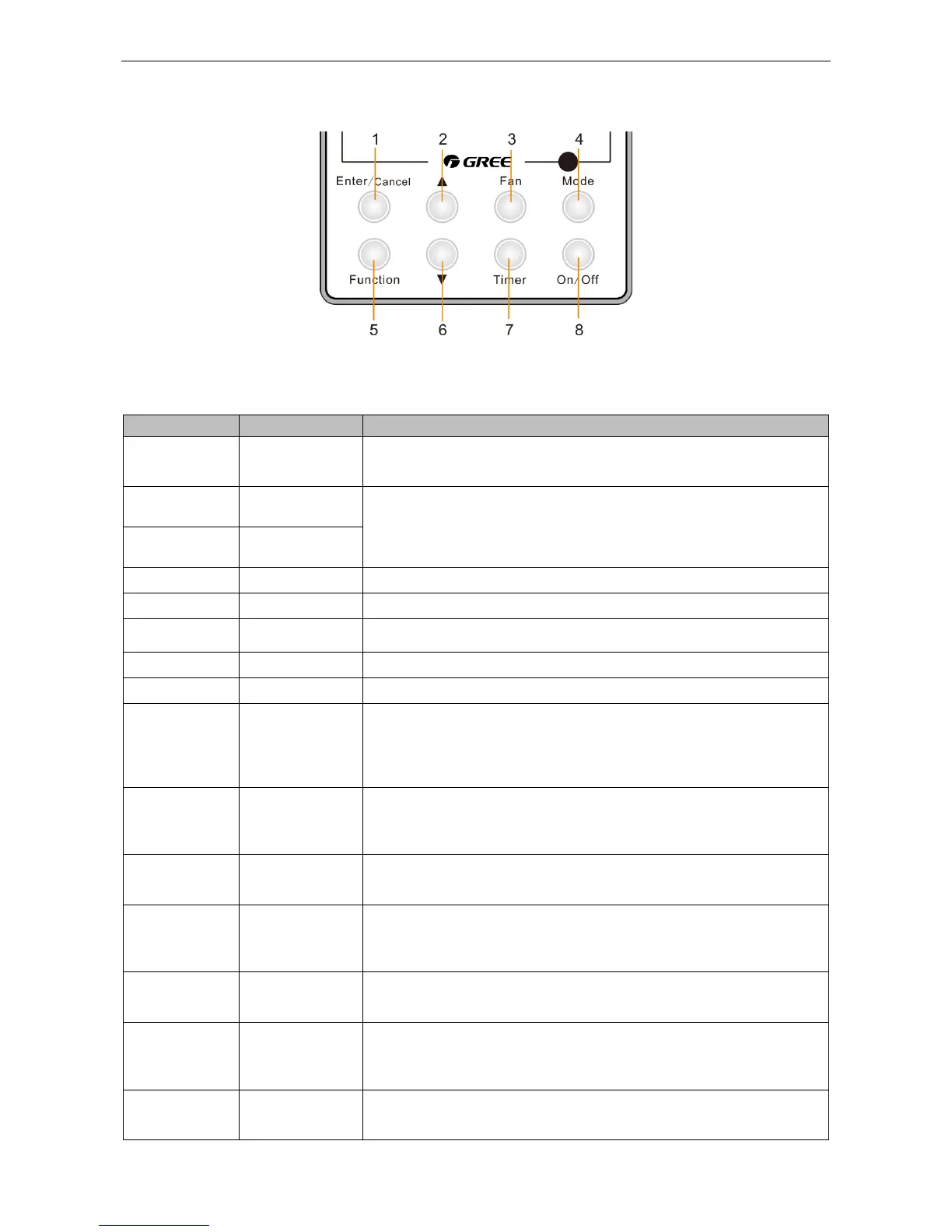

3.2.1 Silk Screen of Buttons
Figure 2-3-3 Silk screen of buttons
3.3.2 Instruction to Function of Buttons
Table 2-3-2 Instruction to buttons of wired controller
No.
Description
Functions
1
Enter/Cancel
(1)Function selection and canceling;
(2)Press it for 5s to view the ambient temperature; press Mode button to
select viewing outdoor ambient temperature or indoor ambient temperature.
2
▲
(1) Running temperature setting range of indoor unit: 16-30℃;
(2) Timer setting range: 0.5-24hr;
(3) Setting of air function level;
(4) Setting of energy-saving temperature;
(5) Setting of cleaning class.
6
▼
3
Fan
Setting of high/medium high/medium/medium low/low/auto fan speed.
4
Mode
Setting of auto/cooling/heating/fan/dry mode of indoor unit.
5
Function
Switch over among these functions of swing/air/sleep/health/
I-Demand/out/turbo/save/e-heater/X-fan/clean/quiet.
7
Timer
Timer setting.
8
On/Off
Turn on/off indoor unit.
4 Mode and
2 ▲
Memory function
Press Mode and ▲ buttons at the same time for 5s under off state of the unit
to enter/cancel memory function (If memory function is set, indoor unit will
resume original setting state after power failure and then power recovery. If
not, indoor unit is defaulted to be off after power recovery. Ex-factory setting
of memory function is on).
2 ▲ and
6 ▼
Lock
Upon startup of the unit without malfunction or under off state of the unit,
press ▲ and ▼ buttons at the same time for 5s to enter lock state. In this
case, any other buttons won‟t respond when pressing. Repress ▲ and ▼
buttons for 5s to quit lock state.
4 Mode and
5 Function
Enquiry and
setting of address
of wired controller
Under off state of the unit, press Mode and Function buttons at the same time
for 5s to set the address. (More details please refer to project debugging)
5 Function and
7 Timer
Setting of project
parameters (More
details please
refer to the Notes)
Under off state of the unit, press Function and Timer buttons at the same time
for 5s to go to the debugging menu. Press Mode button to adjust the setting
items and press ▲ or ▼ buttons to set the actual value.
4 Mode and
6 ▼
Switch between
Fahrenheit and
Centigrade
Under off state of the unit, press Mode and ▼ buttons at the same time for 5s
to switch between Fahrenheit and Centigrade.
5 Function and
6 ▼
Viewing historical
malfunction
Continuously press Function and ▼ buttons for 5s to view historical
malfunction. Then press ▲ and ▼ buttons to adjust displayed contents. The
timer displaying position displays the sequence of malfunction and the
detailed error code. The 5
th
displayed malfunction is the last malfunction.
1 Enter/Cancel
and
4 Mode
Setting of master
and slave wired
controller
Under off state of the unit, press Enter/Cancel and Mode buttons at the same
time for 5s to set master and slave wired controller. Press ▲ or ▼ button to
adjust. (More details please refer to project debugging)
