Installation and Maintenance
Service Manual

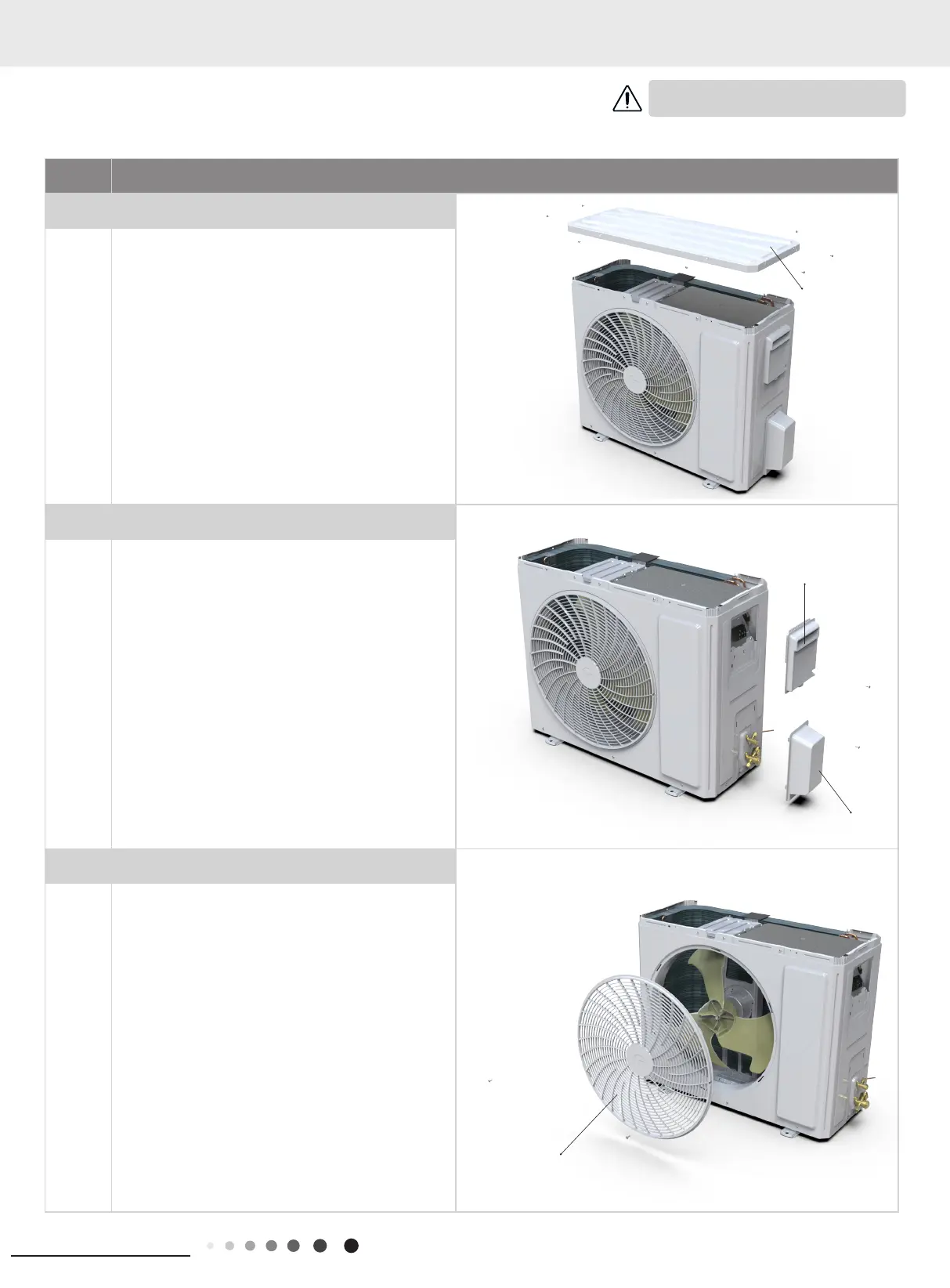

Step Procedure
1. Remove top cover
Remove the screws connecting the top
cover with the front panel, the left side
plate and the right side plate. Remove
the top cover.
2. Remove big handle and valve cover
Remove the connection screw fixing the big handle
and then remove the valve cover.
3. Remove front grille
Remove the screws connecting the
front grille and the front panel.
Remove the front grille.
GVC36ALXH-K3NTC7A/O GVH36ALXH-K3NTC7A/O
NOTE:Take heat pump for example.
11.2 Removal Procedure of Outdoor Unit
Caution: discharge the refrigerant
completely before removal.
big handle
valve cover
top cover
front grille
To Next Page
