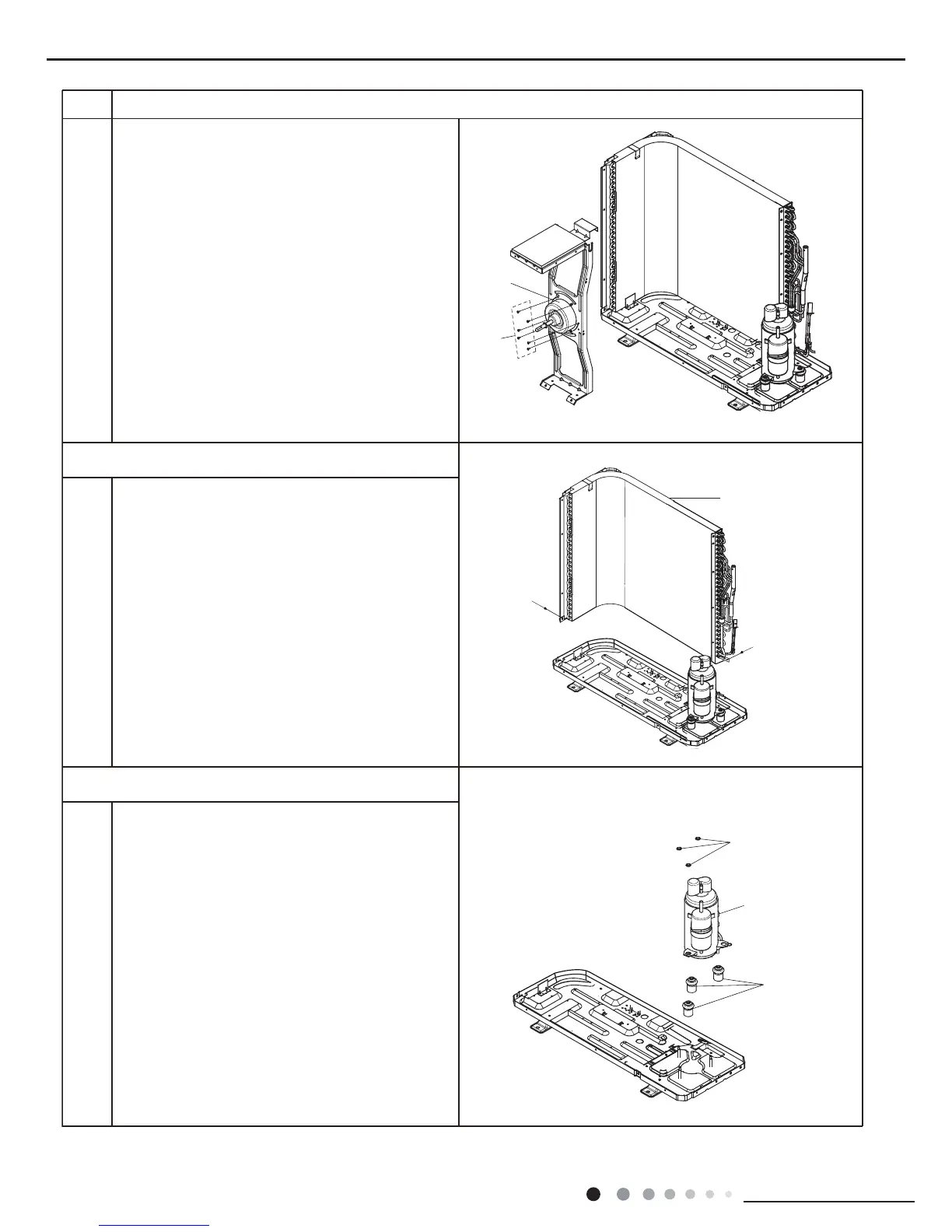

12.Remove compressor
Remove the 3 foot nuts xing compressor and
then lift the compressor upwards to remove the
compressor and damping cushion.
Note:
Keep the ports of discharge pipe and suction
pipe from foreign objects.
11.Remove condenser
damping
cushion
condenser
screws
motor
Remove the 6 screws fixing the motor and then
remove the motor.
b
screw
screw
ProcedureStep
