Bird Dual-Split type
Bird Dual-Split Type
Guide for installation

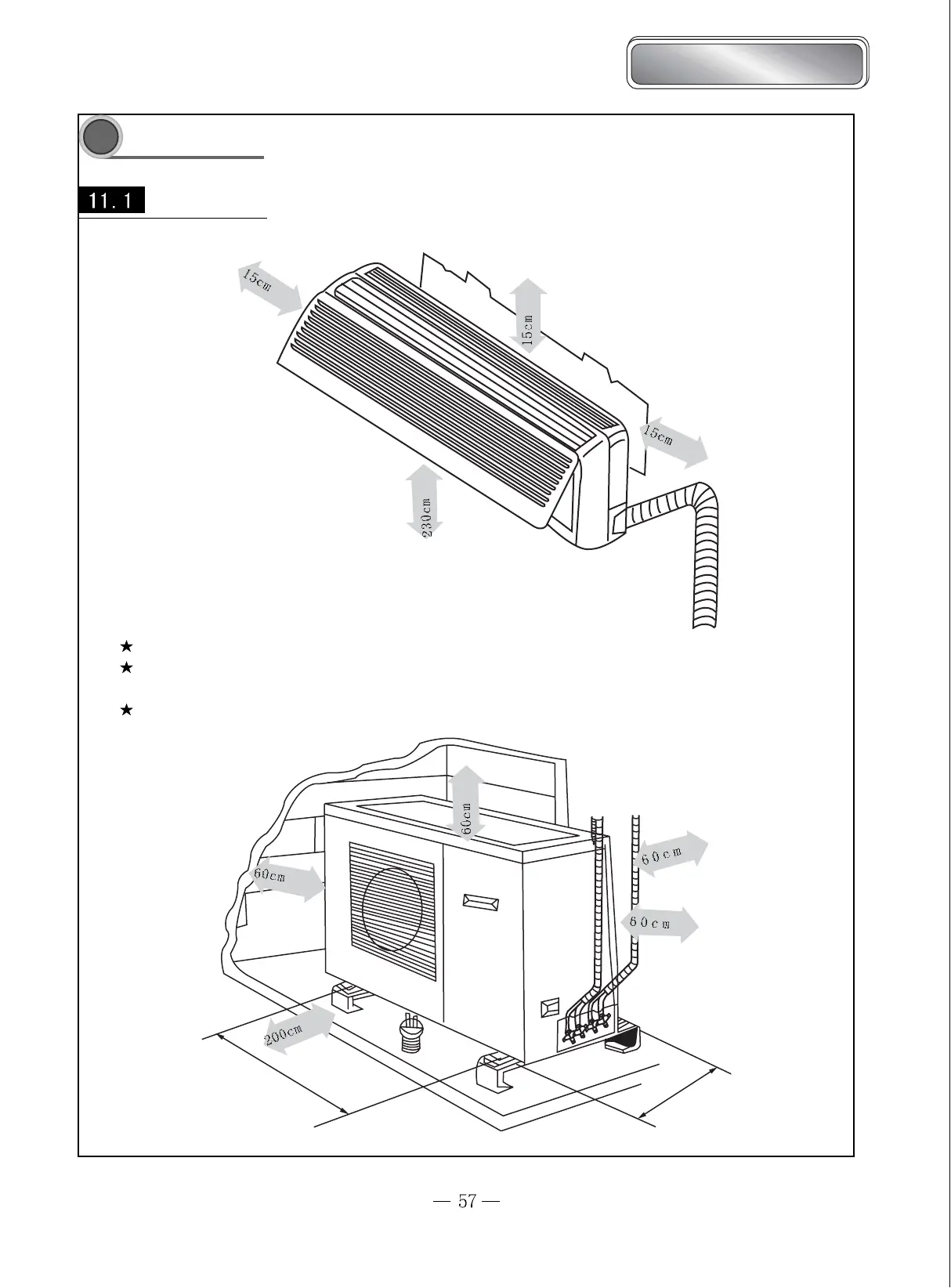

Installation dimension diagram
Important Notes
The installation must be done by trained and qualified service personnel with reliability according to this manual.
When picking up and moving the units, you must be guided by trained and qualified personel.
Contact with the local air conditioner service center before installation to avoid the malfunction due to unprofessional
installation.otherwise the malfunction will not be solved.
Space to obstruction
or more
Air inlet side
Space to the wall
Air outlet side
Space to the wall
or more
or more
or more
or more
Space to the floor
or more
Space to the wall
or more
Space to the ceiling
Space to the wall
or moreor more
