Bird Dual-Split type
Bird Dual-Split Type

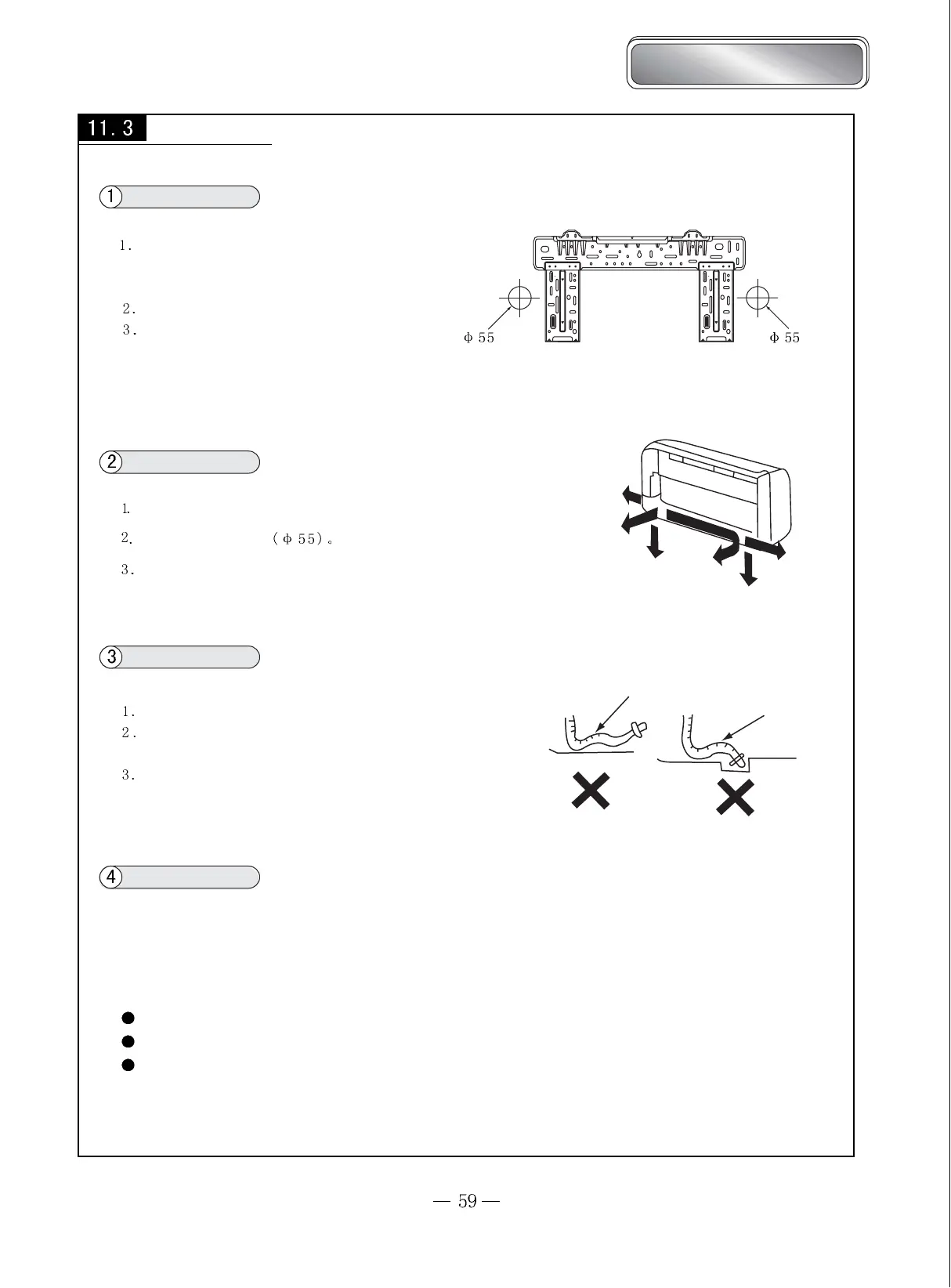

Install the indoor unit
Install the rear panel
Install the piping hole
Install the drainage hole
Install the connection pipes
For well draining, the drain hose should be placed at a downward slant.
Do not wrench or bend the drain hose or flood its end by water.
(As shown in Fig.11-3)
Fig.11-3
Wrenched
Bent
Flooded
When the long drainage hose passing through
indoor, should wrap the insulation materials.
Connect the connection pipes with the relevant union pipes of the indoor unit.tighten
the nut of the connection pipe jonit.(Please refer to "Installation the connection pipe")
NOTE:
Connect the connection pipes with the indoor unit firstly and the outdoor unit secondly.
Be careful in bending the connection pipes, or you will damage the pipes.
If the tightening torque is too great in tightening the flare nuts, leakage will happen.
Fig.11-2
Fig.11-1
Right
Left
Right rear
Left rear
Low left
Low right
The direction of piping can be chosen from six directions
as shown in Fig.11-2.
downward slant to the outdoor side.
Make the piping hole in the wall at a slight
connection piping and wiring from being damaged when
pa ssing through the hole.
Insert the piping-hole sleeve into the hole to prevent the
Be sure that the rear panel has been fixed firmly
enough to withstand the weight of an adult of
60kg, furthermore, the weight should be enenly
shared by each screw.
Fix the rear panel on the selected location with
screws supplied with the unit.
Left piping hole
Right piping hole
Use the seton to find the horizontal place, because
t he draiange hose nozzle is in the left side, when
adjusting the rear panel, should lower down the
left side a little.
