13
Technical Information
Service Manual

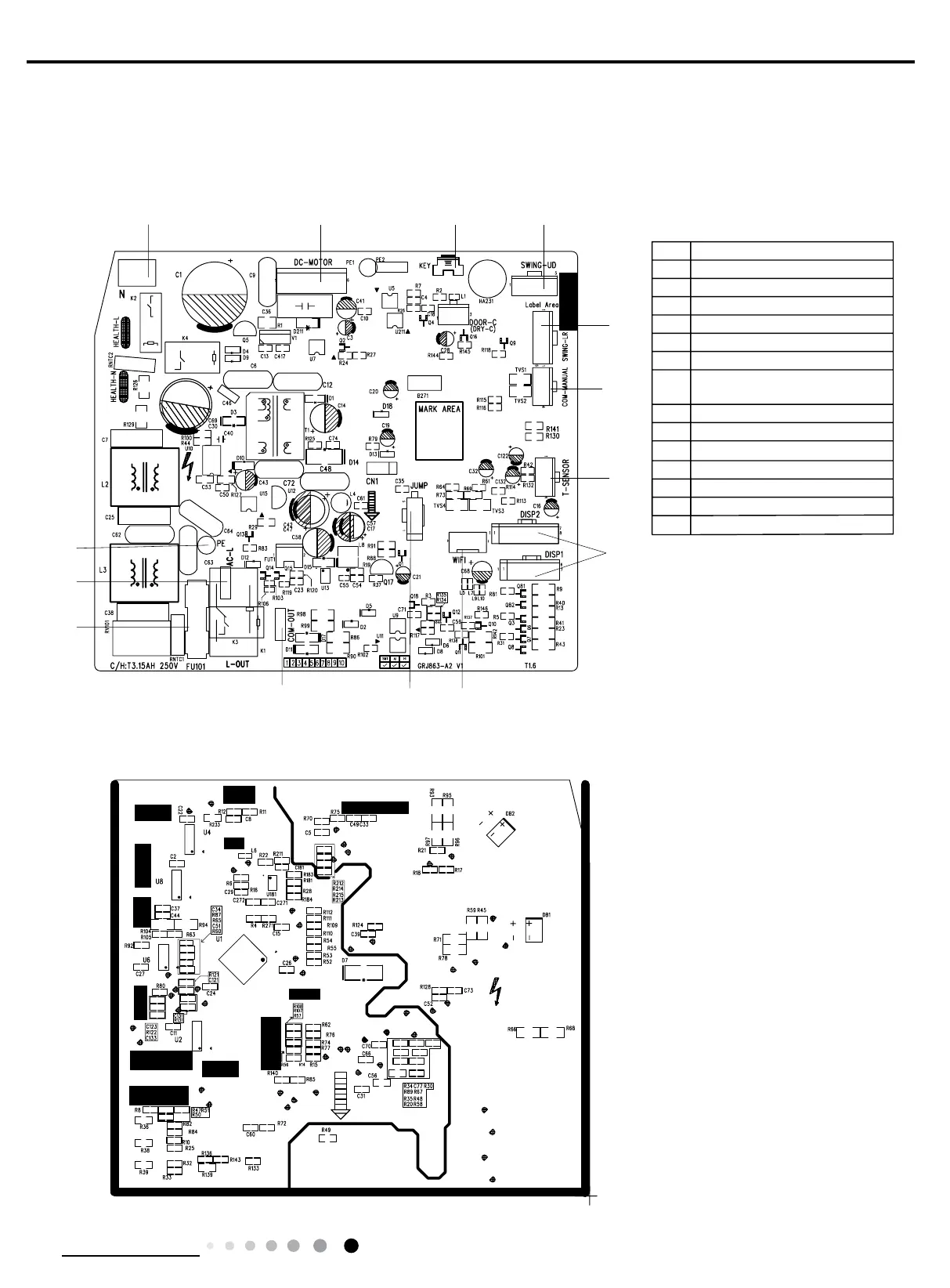

5.2 PCB Printed Diagram
Indoor Unit
● Top view
● Bottom view
1234
5
6
10
7
8
913
11
12
14
No. Name
1 Neutral wire
2 Needle stand for indoor fan
3Auto button
4 Up&down swing motor
5 left&right swing motor
6Interface of temperature sensor
7
Terminal for display board
connection
8Terminal of jumper cap
9Communication wire
10
11 Fuse
12 Live wire interface
13 Detecting plate(WIFI )
14 Grounding wire
Terminal of wired controlle
