Connecting Fresh Air Duct
The indoor ceiling cassettes have a fresh air intake port for ventilation. A booster fan and
duct (field supplied) must be used to feed outdoor air to the indoor unit.
Determine the duct diameter, length and booster fan size based on the required airflow.
See table below for duct and hole sizes:
FRESH AIR INTAKE
NOTE: Fresh air intake amount should be 20% or less of whole air amount to
prevent condensation.
Unit Size Hole Diameter
Duct Diameter
(BtuH) inch (mm) inch (mm)
18,000 3.0 (76) 2.4 (60)
24,000-42,000 4.4 (113) 2.9 (73)
48,000 3.2 (80) 2.9 (73)
To install fresh air intake:
• Locate the fresh air hole on side of cassette unit
• Carefully remove knockout to open fresh air hole
• Cut a round hole through insulated wall
• Using a duct collar, attach fresh air duct to cassette

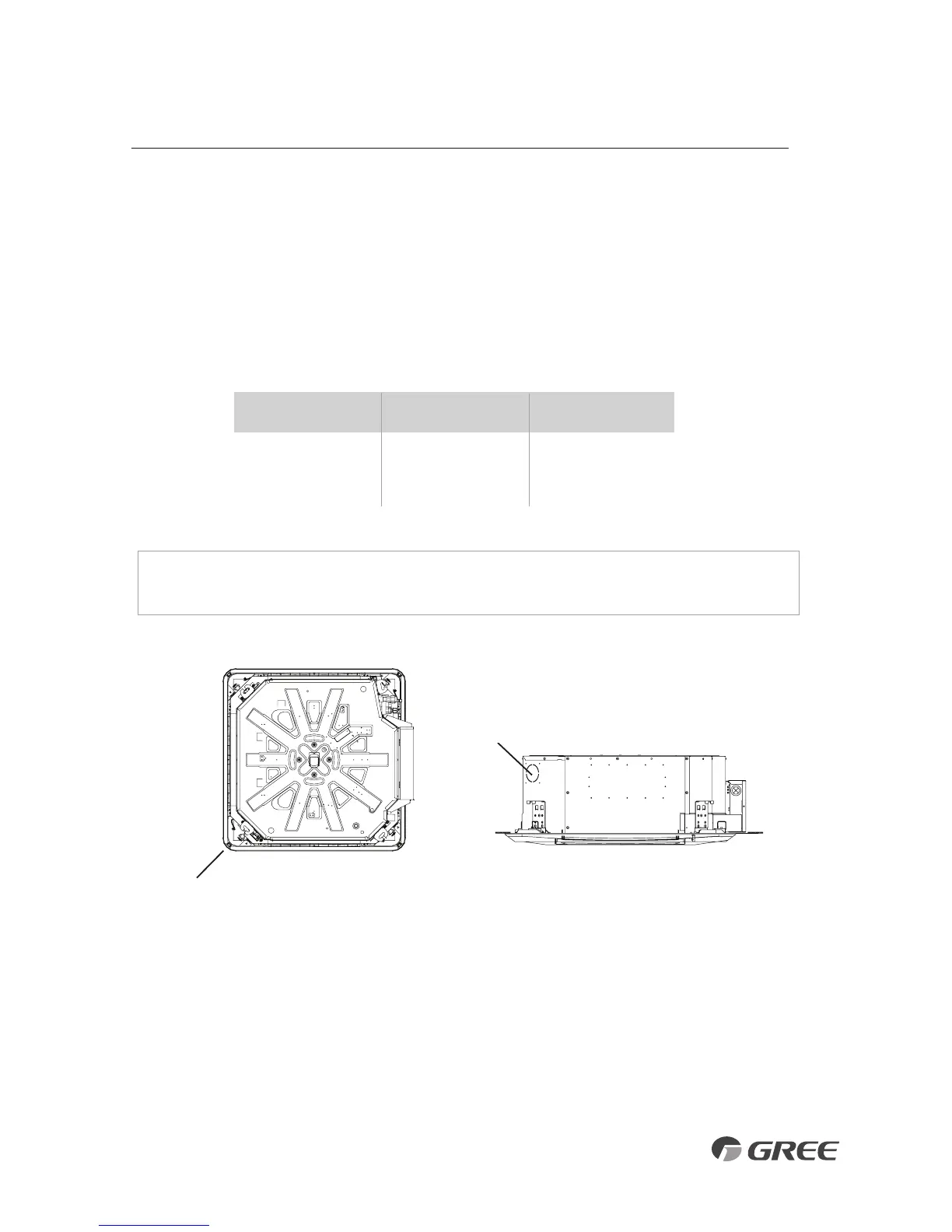

Fresh air hole
Fresh air hole
23
