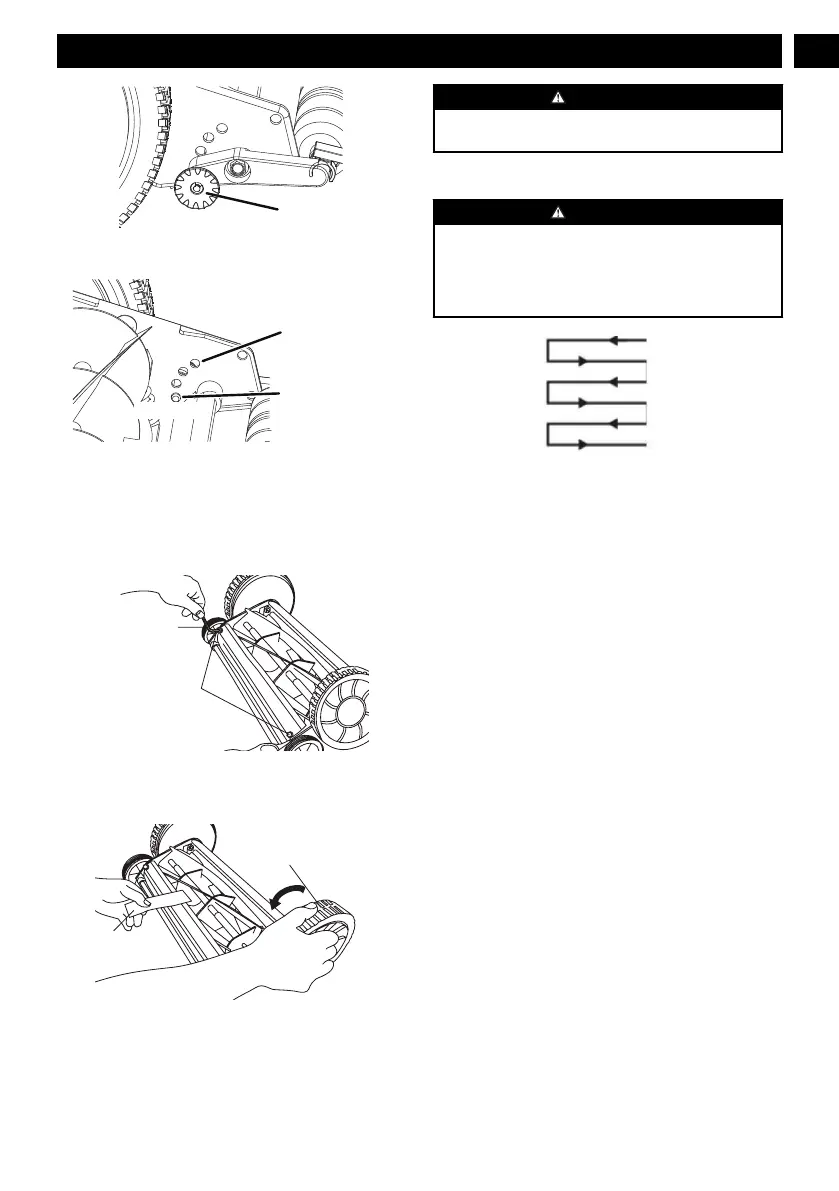

1. Pull the height adjustment knob (10) out and rotate to
desired setting.
The hishest
cutting positon
The lowest
cutting positon
position A
position B
2. Move the height adjustment knob to a higher position to
increase the cutting height.
3. Move the height adjustment knob to a lower position to
decrease the cutting height.
10.2 CHECK THE ADJUSTMENT
Hex wrench
Adjustment bolts
1. Turn the machine upside down.
2. Insert a piece of paper between cutter bar and reel blades,
and slowly turn wheel by hand.
Paper
Turn the wheel by hand
3. All blades must slice the paper evenly, along the entire
length of the cutter bar while the reel turns smoothly.
4. If the machine has an intermittent cut, adjust the blades to
the appropriate side to cut correctly.
WARNING
Do not overtighten adjustment screw as this could damage
cutter bar. Both screws must be tight on final adjustment.
10.3 OPERATION TIPS
WARNING
Make sure that the lawn is clear of stones, sticks, wire or
other objects which could damage mower or user. The
operation of mower can result in foreign objects being
thrown into the eyes, which can damage your eyes severely.
Always wear safety glasses while operating the mower.
1. Do not cut wet grass because it tends to stick to the
underbody of the product, preventing the proper
discharge of grass clippings and it cloud also cause you to
slip and fall.
2. Never cut off more than one-third of the total length of
the grass for a healthy lawn. In the autumn, lawns should
only be cut as long as there is growth.
3. Slowly push the product forward.
4. Mow in slightly overlapping rows. The most effective
pattern for mowing lawns is straight lines. This will keep
the rows even and ensures that all the lawn is cut without
missing any spots.
5. Circle around flower beds. When reaching a flower bed in
the middle of the lawn, cut a row or two around the
circumference of the bed.
6. Pay special attention when changing direction.
11 MAINTENANCE
• Minimum care is required to ensure smooth operation of
your mower.
• To avoid damage to mower or cutting blades, keep area to
be mowed free from debris.
• For best results, regularly apply lubricant to mower’s
cutting surfaces, cutting reel axle shaft and wheels.
11.1 SHARPEN THE CUTTING BLADES
1. Spread a thin layer of lapping compound on the front
edge of the reel blades.
2. Adjust the cutter bar so that the blade has light but firm
contact across the full width of the cutter bar.
3. 3. Turn the reel blades until the front edge of the cutter
bar blade is polished.
