Guardian 2000 Series User Manual

Seat and Back
23
English
SEAT AND BACK
WARNING
After ANY adjustments, repair or service and BEFORE use, make sure all attaching
hardware is tightened securely; otherwise injury or damage may result.

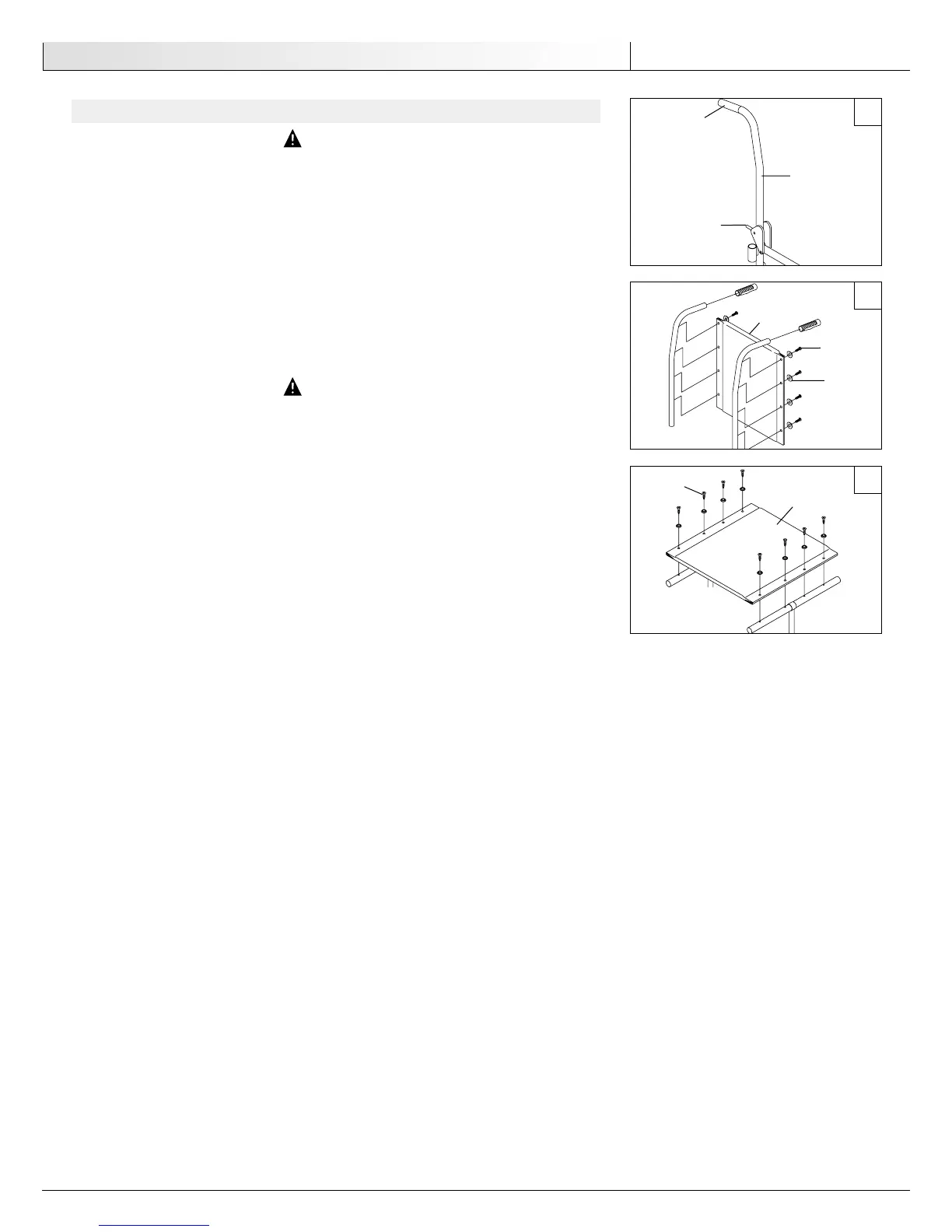

A. FOLD DOWN BACK – TRANSPORT ONLY (FIGURE 1)
Folding:
1. Lift up the two release levers (A) on the back canes (B).
2. Pull back on the handles (C) to the desired position
Unfolding:
1. Pull on the two back canes until the release levers lock in place.
NOTE– There will be an audible click.
2. Pull on the handles to make sure the back is locked in place.
WARNING
Make sure the release levers are securely locked in place BEFORE using
the wheelchair.
B. REPLACING THE BACK UPHOLSTERY (FIGURE 2)
1. Remove the screws and washers that secure the existing back upholstery to the back
canes.
2. Position new back upholstery (D) on back canes as shown in FIGURE 2.
3. Securely tighten the new back upholstery to the back canes with the screws (E) and
washers (F).
C. REPLACING THE SEAT UPHOLSTERY (FIGURE 3)
1. Remove the eight screws (G) that secure the existing seat upholstery (H) to the cross
braces.
2. Remove the existing seat upholstery from the cross braces.
3. Install the new seat upholstery by reversing STEPS 1-2.
1
A
B
C
2
E
D
F
3
H
G
