Häfele dialock User Manual

Mounting Instructions
43
Disassambly
Tools required:
•
retaining ring pliers
•
screwdriver
•
release lever
•
3 mm Allen wrench
1. Undo the set screws.
2. Remove the door handles.

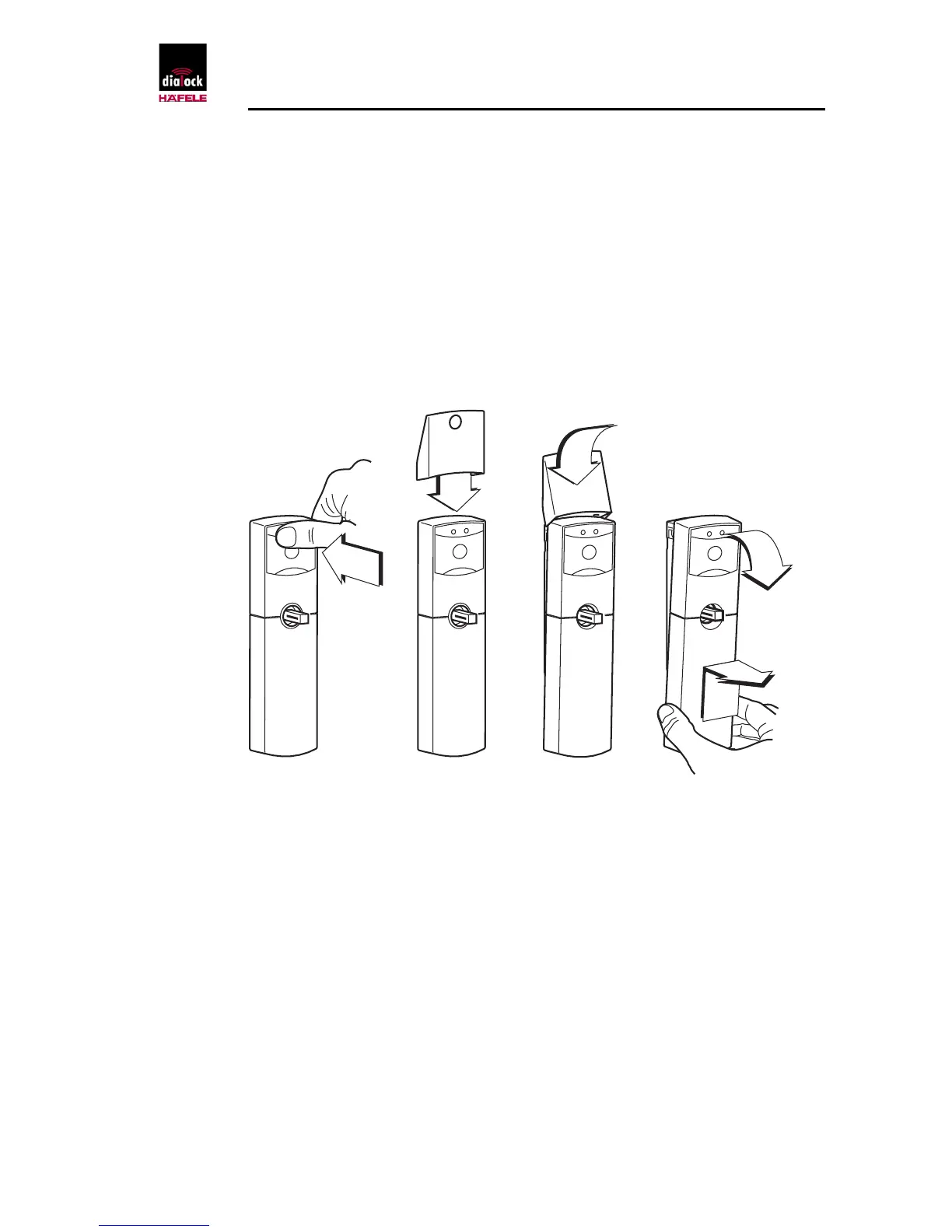

3. Use the release lever to remove the cover from the bracket.
4. Remove the batteries from battery compartment.
5. Undo the screws in the upper fixing plate.
6. Remove the ornamental plates of the rosette fittings with a
screwdriver.
7. Undo the screws of the bolting elements.
8. Remove the bracket and fixing plate from the outer door leaf.
9. Remove the bolting elements of the rosette fittings from the inner
door leaf.
The Door Terminal Basic has been disassembled.
