Indoor Unit
217
Super Match
Note:
■ Electrical wiring must be done by qualied person.
■ The power supply connects from the outdoor unit.
■ The connecting cable and power cable are self-provided.
■ Use copper wire only.
■ Air conditioner must use an exclusive line (over 30A)
■ When installing air conditioner in a wet place, try to use a circuit breaker against current leakage.
■ When installing in other places, use circuit breaker as far as possible.
■ The breaker of the air conditioner should be all-pole switch; and the distance between its two contacts should be
no less than 3 mm.
■ Such means for disconnection must be incorporation in the xed wiring
The parameter of connecting cable is H05RN-F 4G 2.5mm2.
The parameter of the power cable should be over H07RN-F 5G 4.0mm2

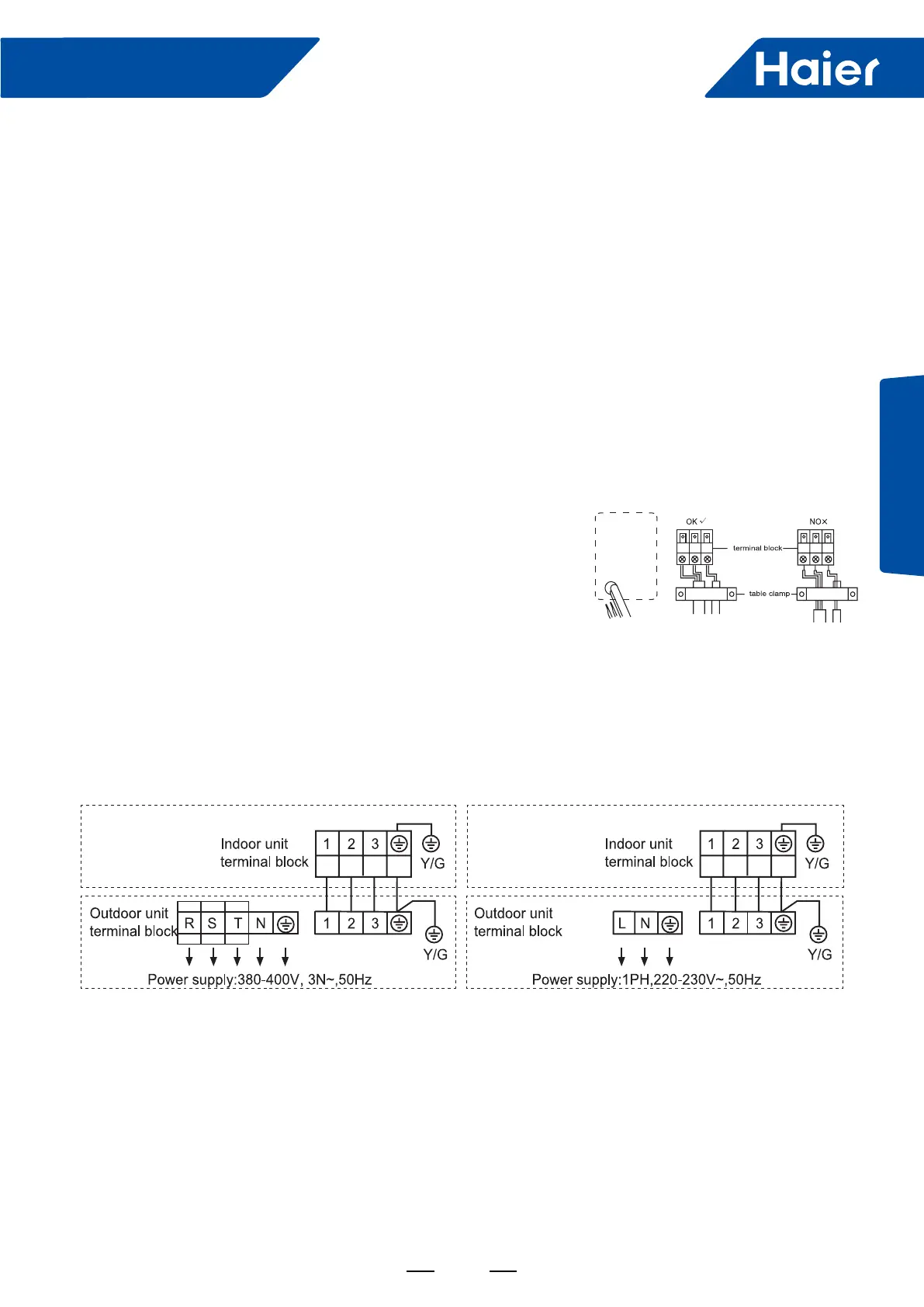

Wiring of indoor unit
■ Insert the cable from outside the wall hole where piping already exist.
■ Pull it out from front.
■ Loosen terminal screws and insert cable end fully into terminal block, then
tighten it.
■ Pull the cable gently to make sure it is tight.
■ Replace cover after wiring.
Wiring of outdoor unit
■ Insert the cable from inside the wall hole where piping already exists.
■ Pull it out from front.
■ Loose terminal screw and insert cable end fully into terminal block, then tighten it.
■ Pull the cable gently to make sure it is tight.
■ Replace cover after wiring.
Note:
When connecting indoor and outdoor wire, check the number on indoor and outdoor terminal blocks. Incorrect
wiring may damage air conditioner’s controller or cause operation failure.
To Next Page
