4. Wiring connection
3U19FS1ERA 3U19FS1ERA(N) 3U24GS1ERA 3U24GS1ERA(N)
If this outdoor unit connects with AS*S1ERA, the connecting cable is 1.5mm²

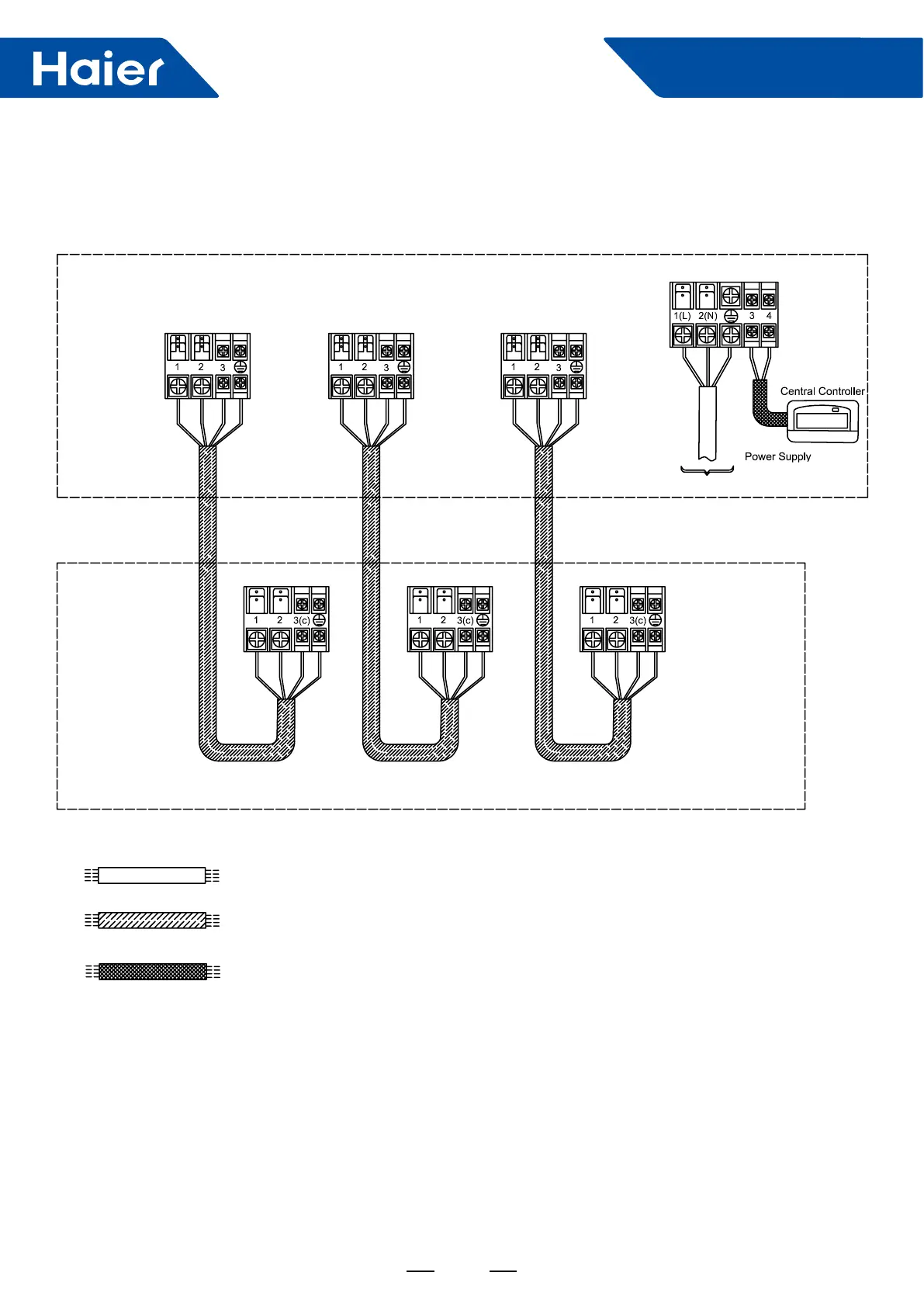

Connect the connecting wires between indoor and outdoor units and ensure the sequence numbers on
terminals match with each other.
1PH, 220-230V, 50Hz
••••••
Indoor Unit A Indoor Unit B Indoor Unit C
Indoor
Outdoor
A B
C
Power Supply Cable:
H05RN-F3G 4.0mm²
Connecting Cable:
H05RN-F4G 2.5mm²
Connecting Cable:
H05RN-F2G 2.5mm²
