Indoor Unit
45
Super Match
Wall or barrier
35
35
840
346
690
860-890
(ceiling hole)
Barrier
Ground
(Hanging position)
346
950
840
AB36ES1ERA(S) AB48ES1ERA(S) AB60ES2ERA(S)
3. PREPARATION FOR THE INSTALLATION

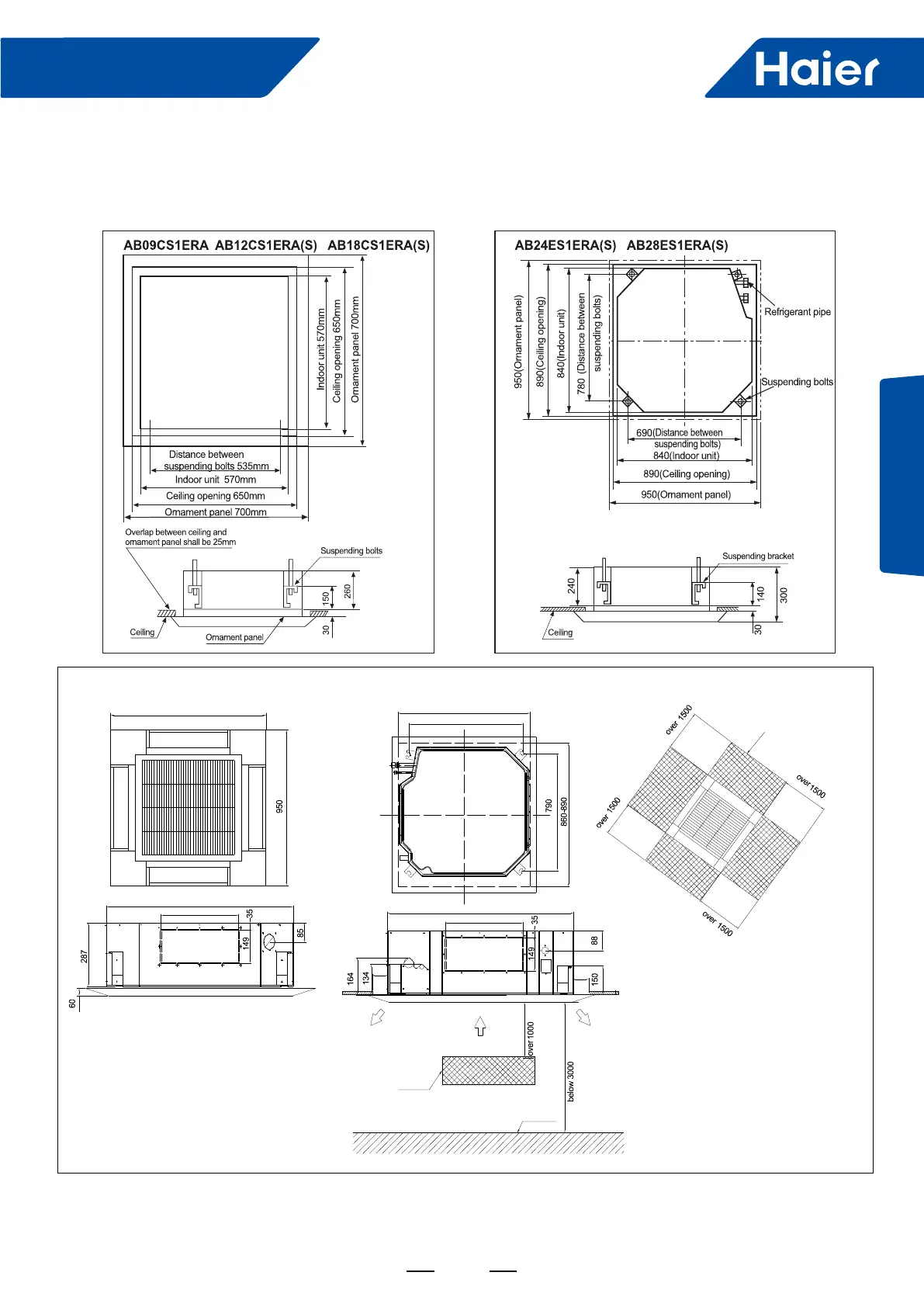

(1) Position of ceiling opening between unit and suspending bolt.
