Haier 1UH071N1ERG User Manual

60
Smart Power

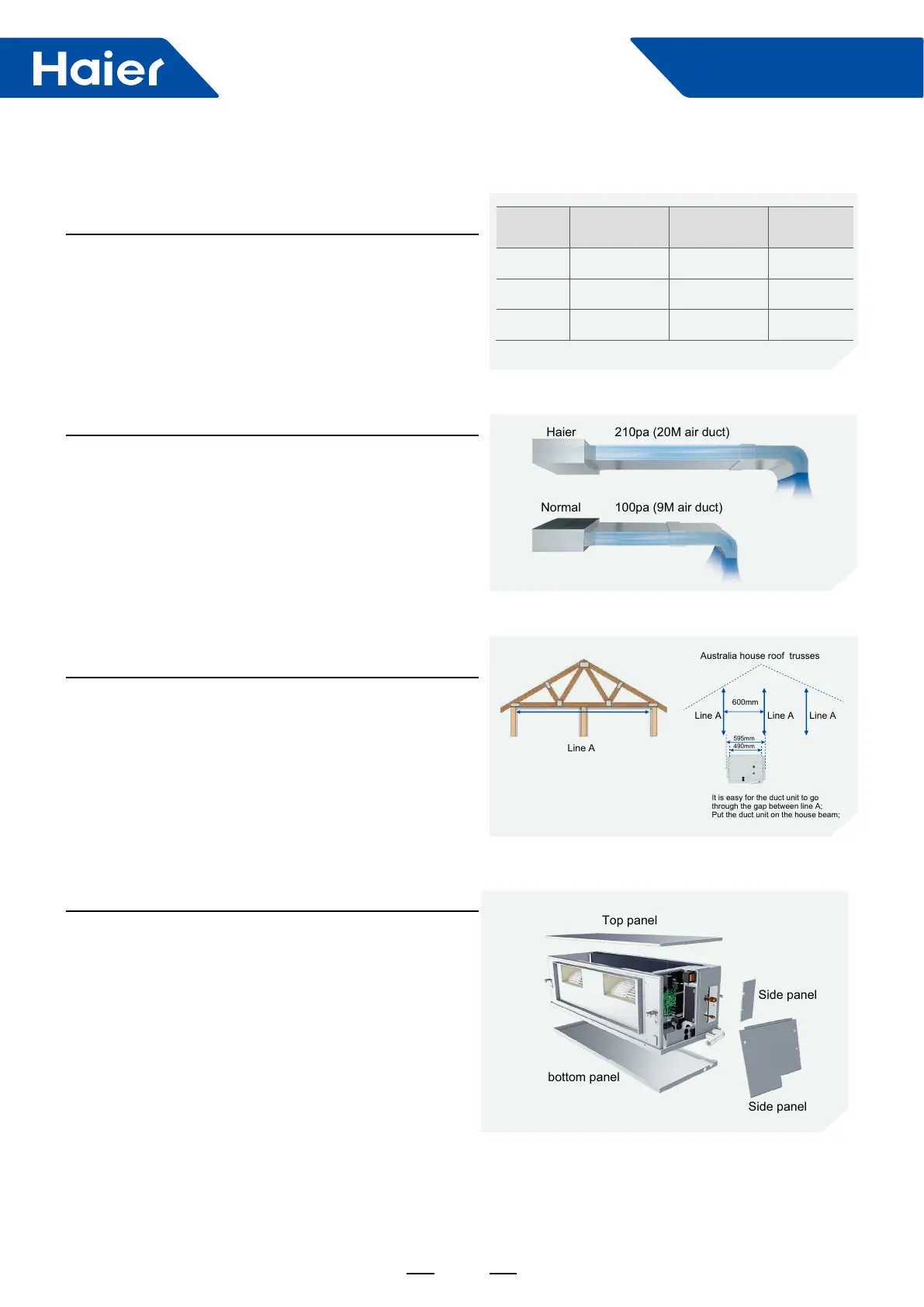

1. Feature
Design Flexibility
Super high airflow
Easy Installation
Narrow width
210Pa ESP setting
Three side open the panel
New DC fan motor and large length & diameter fan design,
provide the 2880 m3/h (800l/s) above air ow with
250m3/h/kW (70L/s/kW) ,which is 44% more than medium
ESP duct unit.
Only 490mm depth can meet the Australia compact roof
trusses, easy for installer lifting the unit.
210pa ESP give the design exibility totally , it can meet
difculty duct requirement.
There are three side panel which can be opened for easy
maintenance
Top panel and bottom panel can be opened to maintain the
fan and motor;
Electrical panel can be opened to maintain the electrical parts;
Side panel can be opened to maintain the pipe sensor;
Capacity
Medium ESP duct
airflow(m
3
/h)
10.0kW
12.5kW
14.0kW
2000
2250
2500
2880
3250
3600
44%
44%
44%
High ESP duct
airflow(m
3
/h)
Promotion
100pa (9M air duct)
210pa (20M air duct)
Normal
Haier
Line A
Line A
Australia house roof trusses
It is easy for the duct unit to go
through the gap between line A;
Put the duct unit on the house beam;
600mm
Line ALine A
595mm
490mm
Top panel
Side panel
Side panel
bottom panel

Haier 1UH071N1ERG Specifications

General

Brand	Haier
Model	1UH071N1ERG
Category	Air Conditioner
Language	English
