Functions and control
26
Domestic Air Conditioner
close the four-way valve.
5.2.5 Protection function

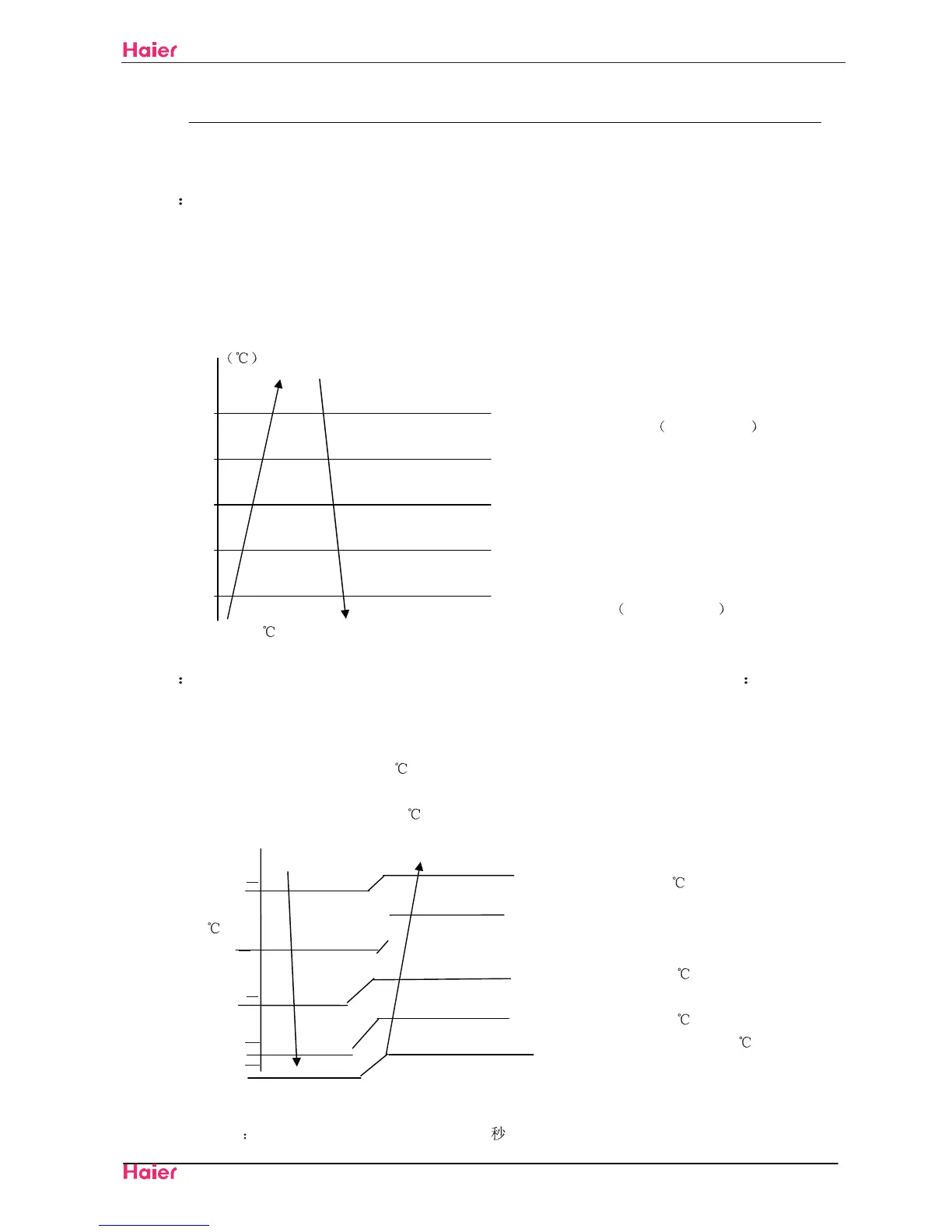

5.2.5.1 TTC high temperature-preventing protection
Once the machine is started, it can run TTC overheating protection of air-blowing, but air-blowing
sensor malfunction must alarm after 4 minutes during which the compressor is started (during the
course of self-detection, there’s no such limitation)
Sensor detection methods: 100 times (one cycle of procedure run is one time, and about 5ms,
detection method for each time: continuously sampling for 8 times, then order them and take the
mean value of the middle 2 values), take the mean value.
TTC
Abnormal stop
110
Decreasing the frequency rapidly
1HZ/second
100
Decreasing the frequency slowly (1HZ/10seconds)
98
The frequency doesn’t change.
93
Increasing the frequency (1HZ/10second)
90
Increasing the frequency
1HZ/1second
TTC>=110 lasts for 20 seconds. Overheating protection of air-blowing, alarm malfunction to
the indoor, others don’t last.
5.2.5.2 TC high temperature-preventing control of the indoor heating unit
Tpg_indoor is the highest value of the effective indoor unit (start it and it is in accord with the
running state).
The indoor heat exchanger sensor tests the temperature of the indoor heat exchanger. If the
temperature is higher than 55
, decrease the rotate speed of the compressor and do the high
temperature-preventing protection of the indoor heat exchanger; if the temperature of the indoor
heat exchanger is lower than 47
, recover to the normal control.
TC The compressor stops
Fgh_t1
2 Fgh_t1 65
N Decreasing the frequency rapidly Fgh_t2
59
Fgh_t2 2 P Decreasing the frequency slowly
Fgh_t3 55
Fgh_t3 2 Q Prohibiting increasing the frequency
Fgh_t4 51
Fgh_t4 2 R Increasing slowly Fgh_t5 47
Fgh_t5 2
Normal
N
Decreasing at the speed of 1HZ/1 second
