SERVICE MANUAL
Model: BFQ50
9
Issue 2012-12-27
Rev.
Ref1212S006V0
Chapter 4 Disassembly
4-1. Door assembly (Door, hinge, hinge cover)

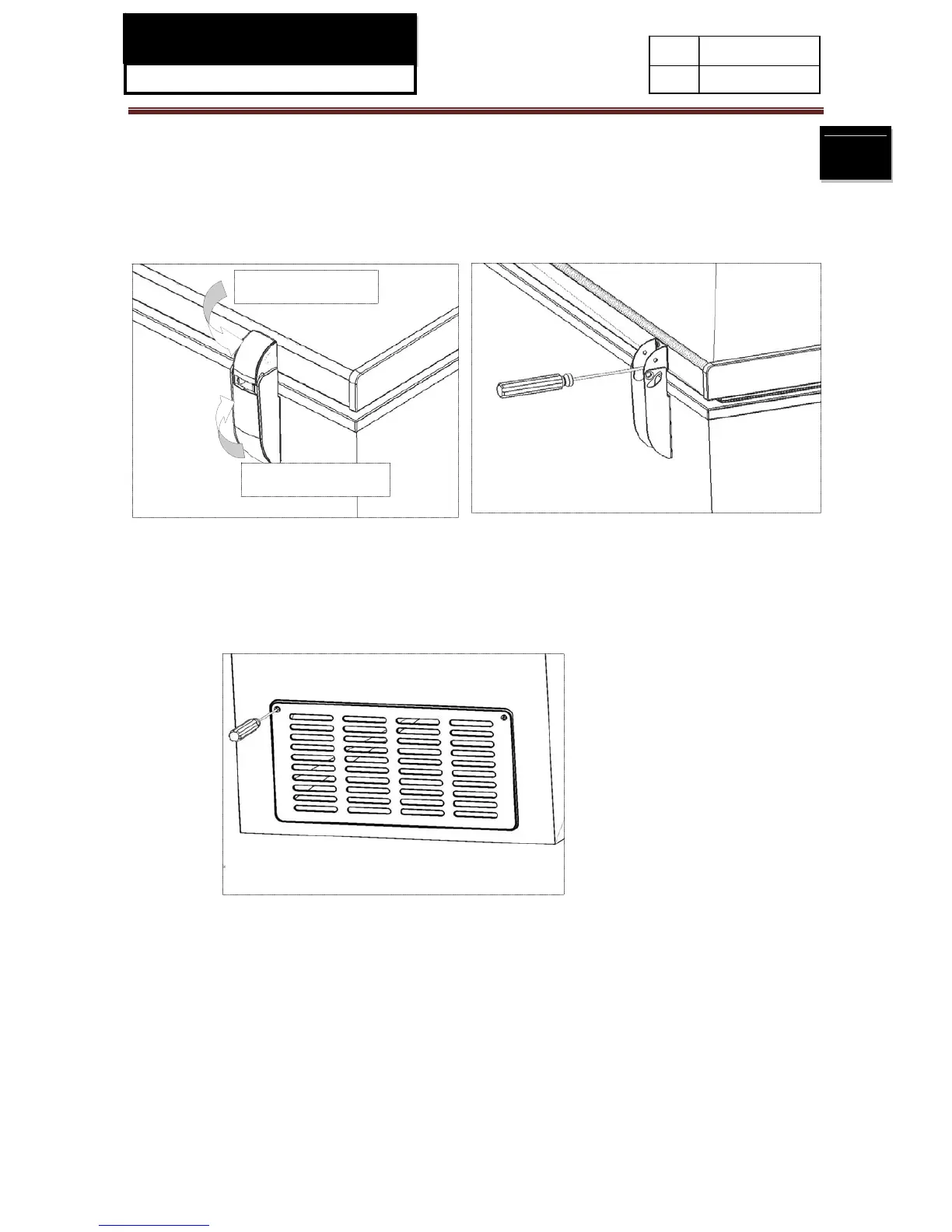

Unscrew the hinge cover screw with screwdriver, take away the top and bottom cover by pull it, and
then unscrew the screws on the hinge, so the whole hinge could be moved.
4-2. Compartment Grill assembly
Unscrew the two screw of grill; we can take away the grill.
Top hinge cover
Bottom hinge cover
To Next Page
