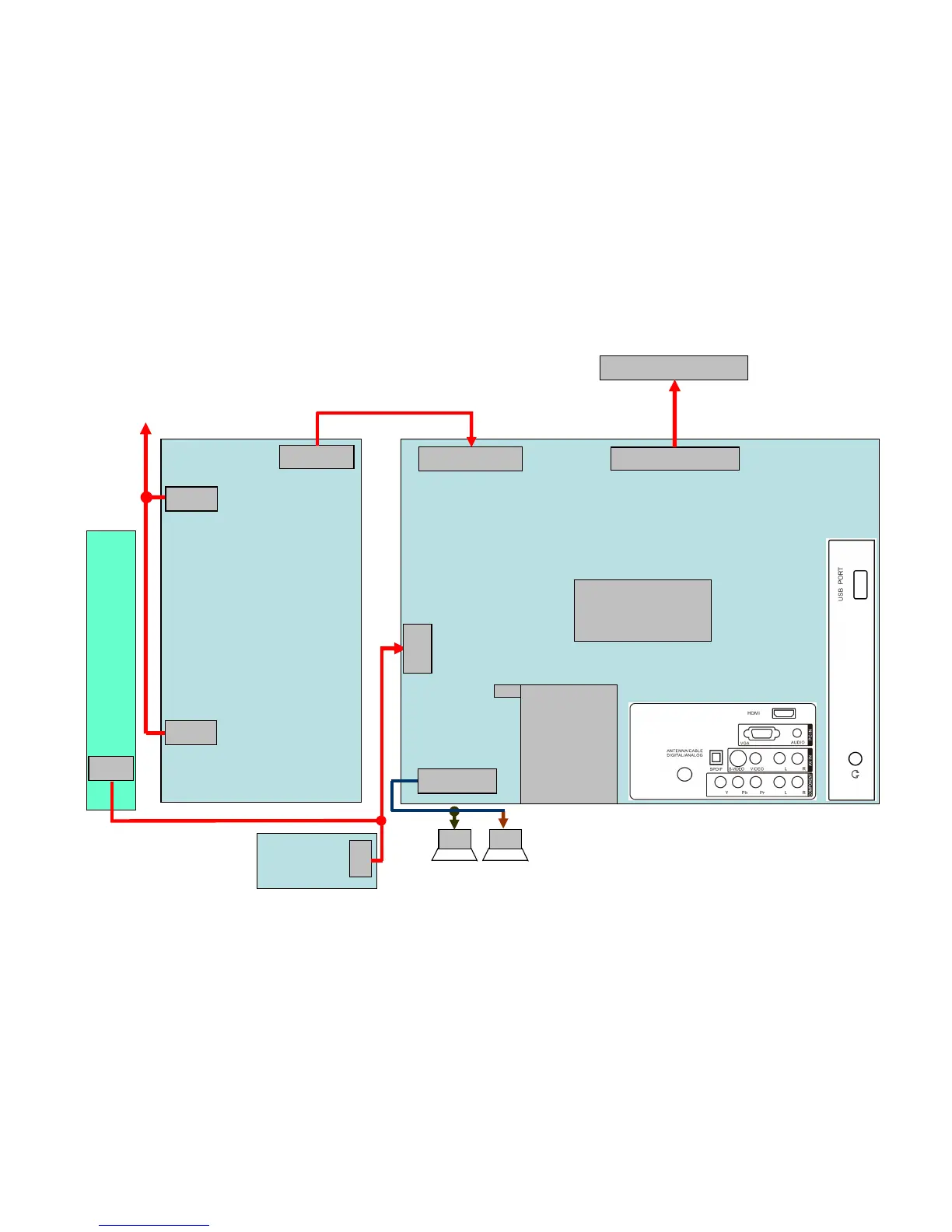

9. Wiring Diagram
Power Board
Key
Board
Panel
IR Board
CN902
CN01
2 Pin
CN802
Speaker R/L
To Panel
5Pin
30 Pin
ZR39775HGCF
U401
Scaler IC
LVDS Cable
CN409
12 Pin
CN701
CN604
11 Pin
9 Pin
4 Pin
CN407
Tuner
TU202
4 Pin
CN803
2 Pin
CN201
