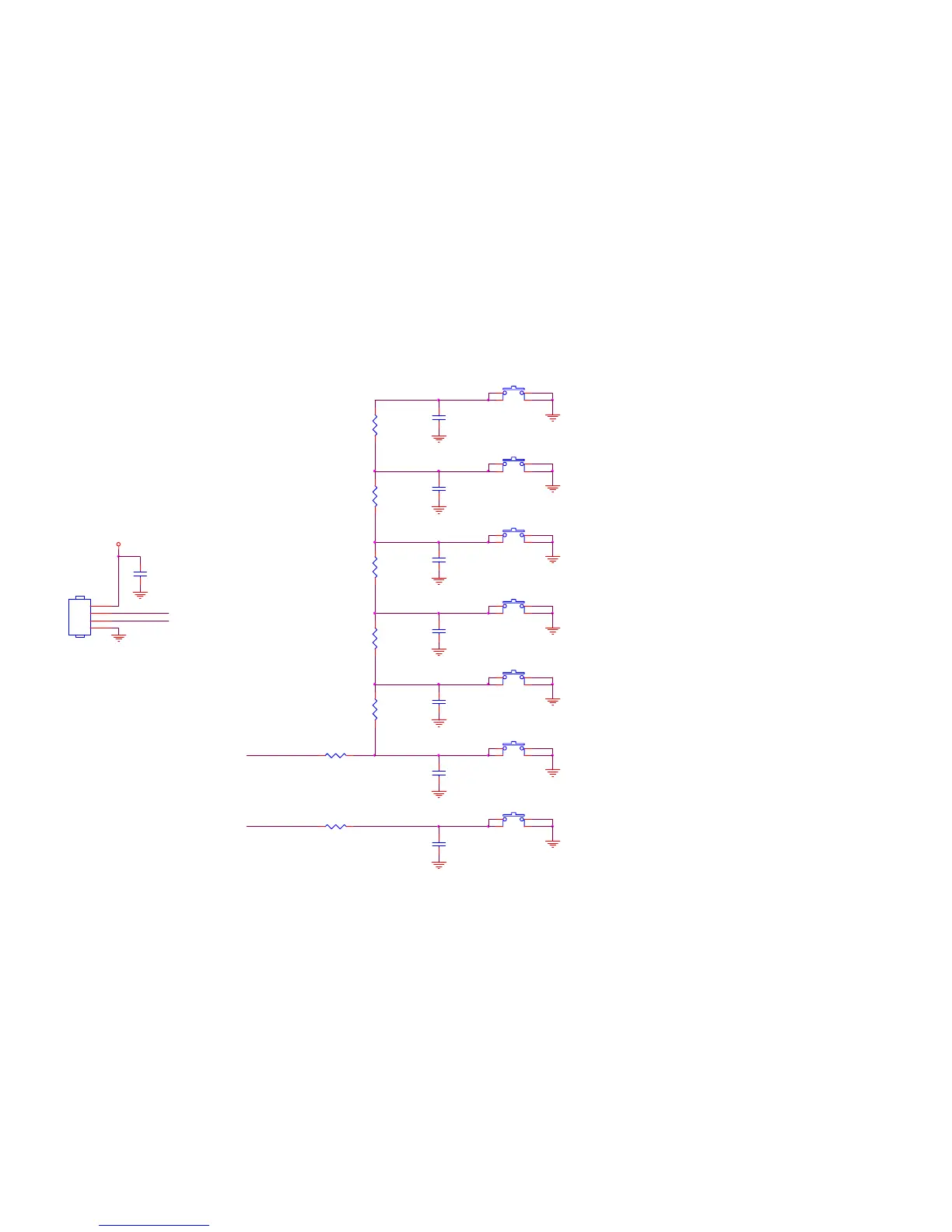

10.3 Key Board
715G3303 1
CN01
CONN
1
2
3
4
R07
750R 1/10W 1%
PWR-SW
FUNC_KEY
R08
100R 1/10W 1%
33T8032 4F HR
R01
7K5 1/10W 1%
Source Select
MENU
VOL-
VOL+
Power ON/OFF
CH+
CH-
SW01
TACT SW FWRD H1.5MM
R02
2K7 1/10W 1%
R03
1.8K OHM 1% 1/10W
R04
1K 1/10W 1%
R05
750R 1/10W 1%
C01
NC
FUNC_KEY
C07
NC
C05
NC
C03
NC
C06
NC
C02
NC
C04
NC
PWR-SW
C08
1uF/16V
77T 607 2 FD
SW02
TACT SW FWRD H1.5MM
SW03
TACT SW FWRD H1.5MM
3V3_STB
SW04
TACT SW FWRD H1.5MM
SW05
TACT SW FWRD H1.5MM
SW06
TACT SW FWRD H1.5MM
SW07
TACT SW FWRD H1.5MM
