Haier HL19R User Manual

32
Subassembly
Spare parts
number
Location
No.
Spare Parts Name
in English Specification
Qty
0090714770 Back Cover Subassembly 1
0090202594 Back Cover Assembly 1
0090202594.1 Back Cover 1
0090202594.2 Button Bracket 1
0090202594.3 Terminal Board 1
0090202594.4 LCD panel bracket 2
0090202594.5 Bolt SJ2824-87 ST3X10F 2
0090202594.6 Plastic board 1
0090202594.7 Bolster 1
0090300617 Sponge Strip 0.17
0090600011 Bolt SJ2824-87 ST3X10F 2
0090600260 Bolt GB818-85 M3*4 4
0090600015 Bolt SJ2824-87 ST4X12F 6
0090600053 Bolt
SJ2824-87 ST4×
16F 1
0090600012 Bolt SJ2824-87 ST3X8F 8
0090202934 Terminal Lable 1
0090600012 Bolt SJ2824-87 ST3*8F 4
0090600012 Bolt SJ2824-87 ST3*8F 4
0090600012 Bolt SJ2824-87 ST3*8F 2
Back Cover
Subassembly
0090600011 Bolt SJ2824-87 ST3X10F 6

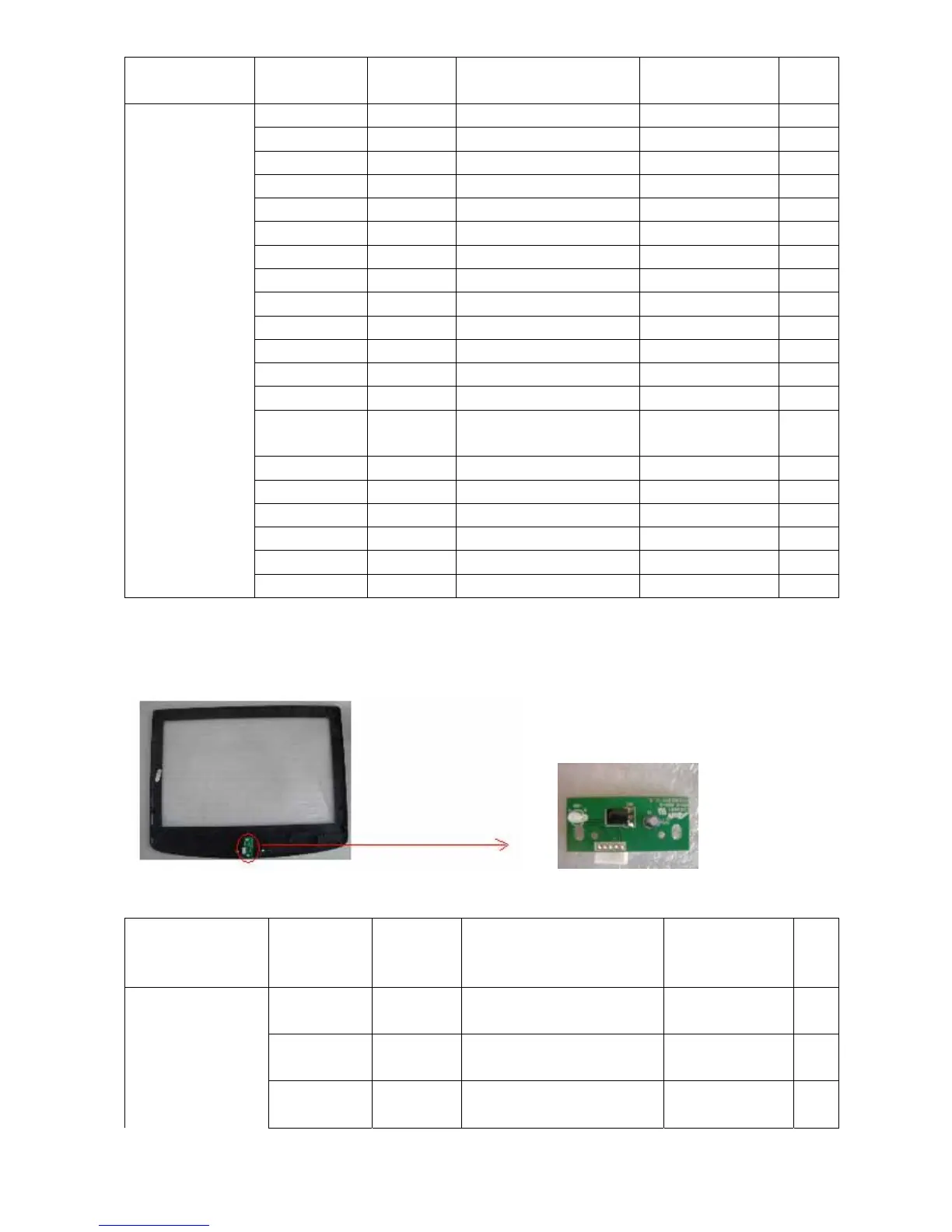

8.4Front-frame subassembly
Components List
Subassembly
Spare
parts
number
Location
No.
Spare Parts Name in
English
Specification Qty
0090714771
Front Frame Subassembly 1
0090202172 Front Frame Assembly 1
Front Frame
Subassembly
0090202172.1 Front Frame 1
