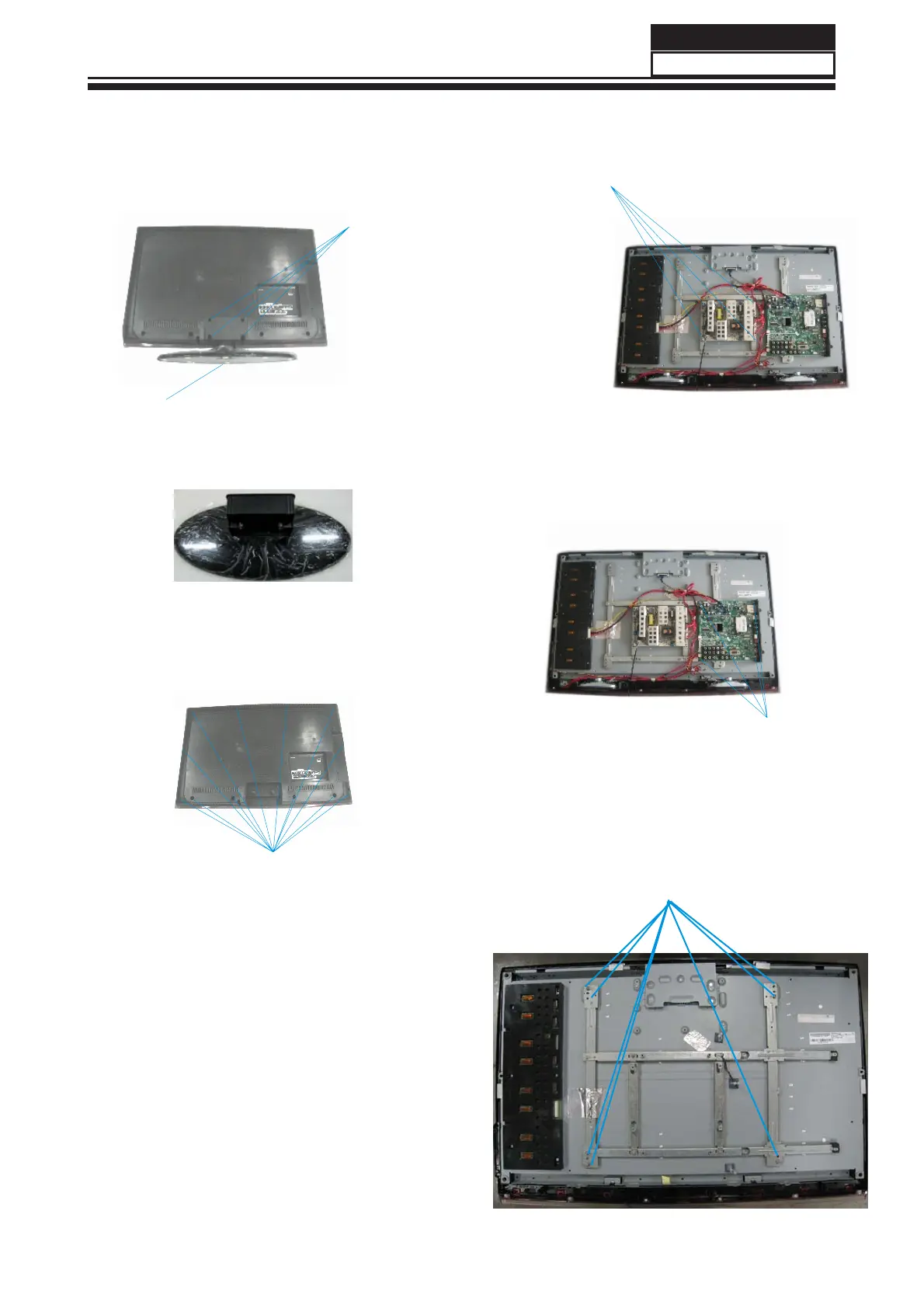

3-2. L32K3

1. Lay down the unit so that back cover faces

upward

3. Remove the stand

3-2-2. Remove the Back Cover

1. Remove the fifteen screws indicated

Service Manual

Model No.:

2. Remove the six screws indicated with

the blue lines in the picture above.

3-2-3. Remove the power supply

4 Screws(M3*8)

3-2-1. Remove the Stand

12 screws (ST4*12)

2. Then remove the cables of DSMB indicated

with the blue lines in the picture below.

3-2-4. Remove the mainboard and

bracket of Side AV

4 Screws(M3*8)

3-2-5. Remove the metal slice of

the mainborad and power supply

7 Screws(M4X8)

Bottom

4 Screws(M4*12)
