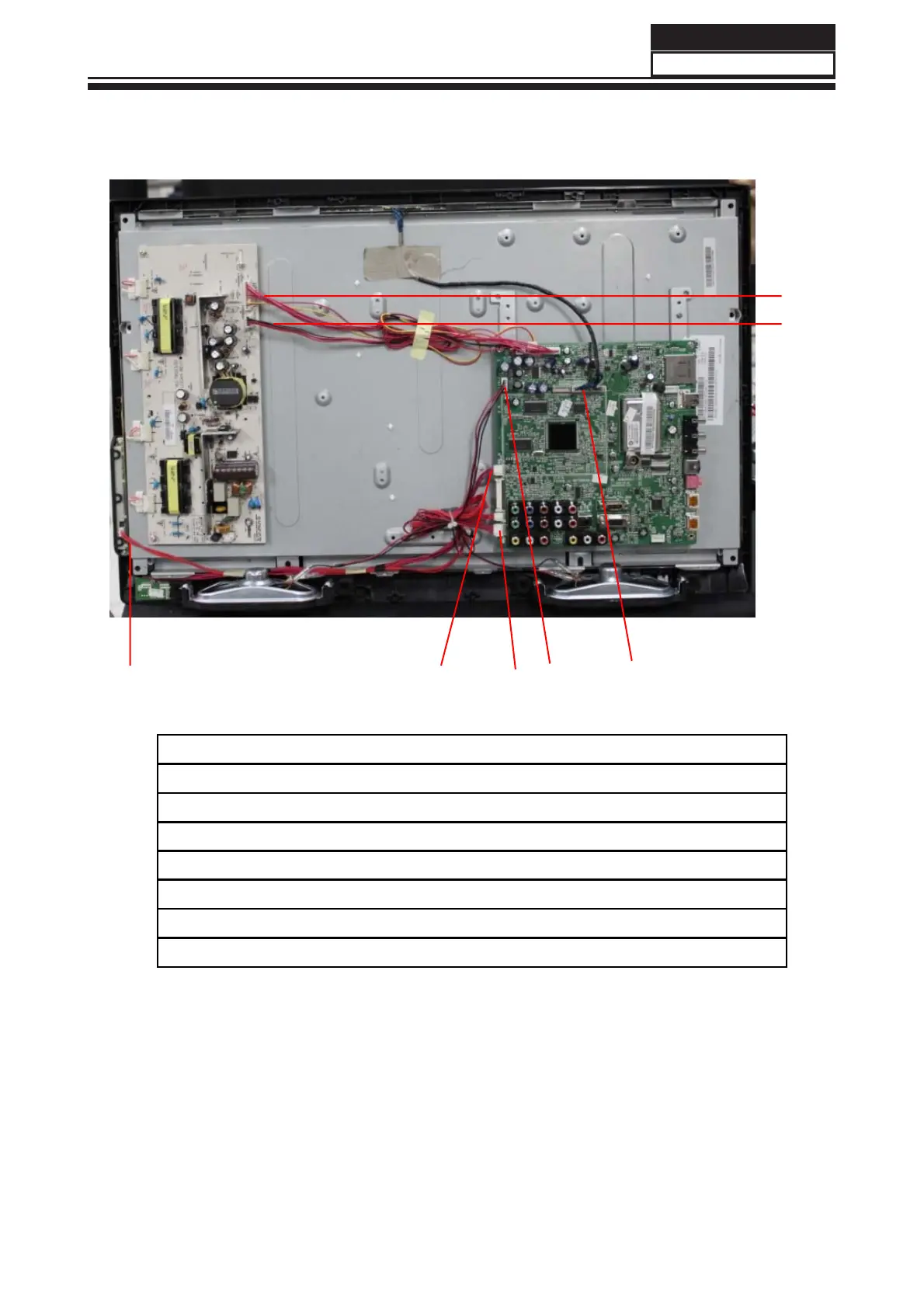

7-3. Wiring Connection Diagram
Service Manual
Model No.:
7-3-1.L26K3
12
3
4
5
6
7
NO. Name Parts number
1
Connection Wire(Control of Sensitization )
0090402750
2 0090401850A
3
Connection Wire(For Keyboard)
0090401643D
4
Connection Wire(For Speaker)
0090400647C
5
Connection Wire(Power For Audio Amplifier)
0090403399B
6
Connection Wire(For Remote)
0090402469
7
LVDS Wire
0090402496
Connection Wire(Power For Mainboard)
53
To Next Page
