Service Manual
Model No.:
38

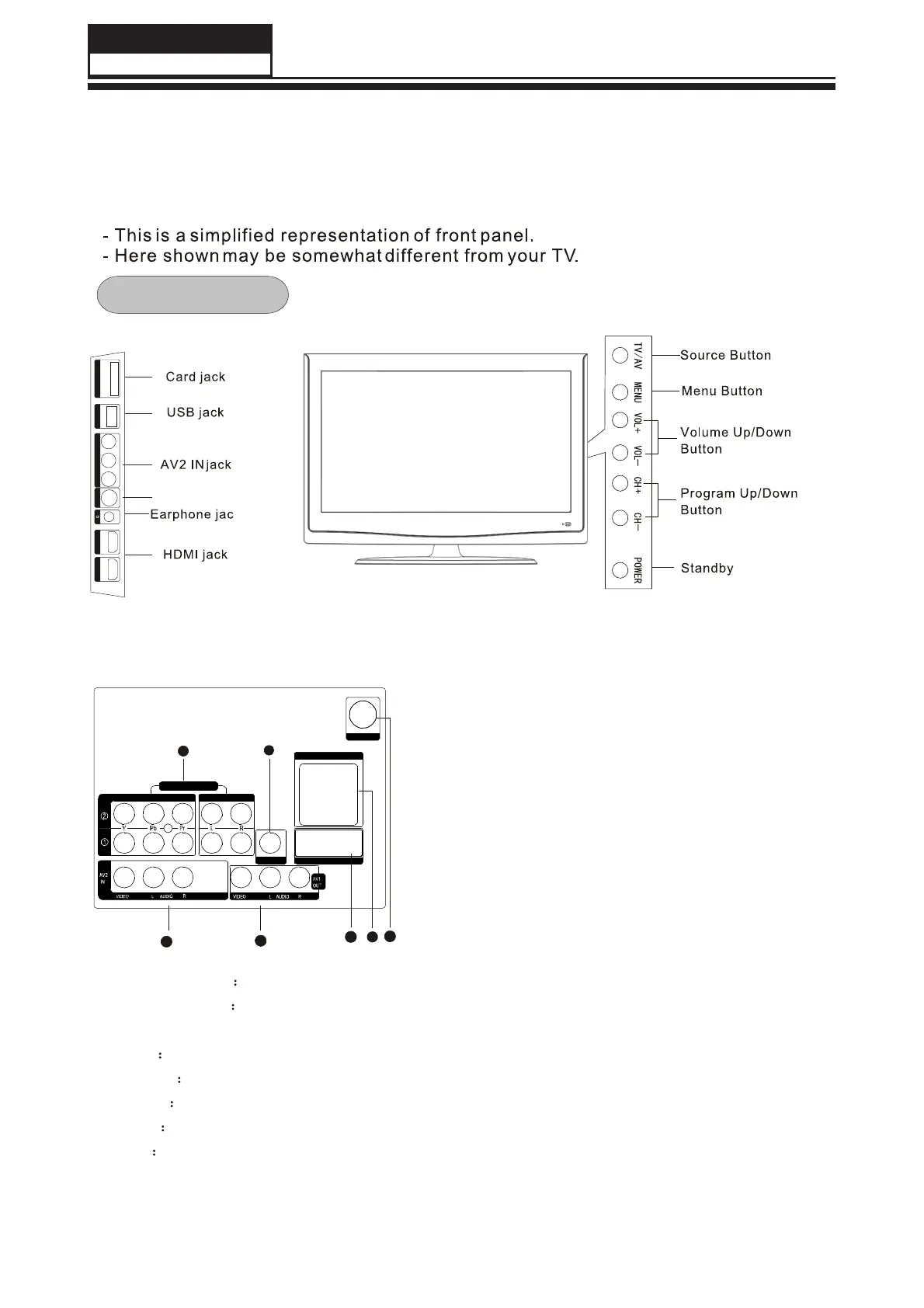

Chapter 6. Operation Instructions
6-1. Front Panel Controls
26”/32”/42”
Panel Control
HDMI2 HDMI2 S-VIDEO USBAV IN
VID EO L-AU DIO-R
CARD
S-VIDEO jack
6-2. Back Panel Controls
1.COMPONENT In Connect a component Video/Audio device to these jacks
2.VGA/DVI AUDIO Connect a VGA/DVI Audio device to these jacks
3.VGA IN: Connect the monitor output connector from a PC to the jack
4.AV1 In Connect Video/Audioout from an Video/Audio device to these jacks
5.S-VIDEO Connect S-Video out from a S-Video device to these jacks
6.AV OUT Video/Audio output terminal
7.ANT In Connect cable pr antenna signal to the TV, either directly or through your cable box
8.HDMI Connect a signal to HDMI
AUDIO
VGA IN
CONMPENT
VIDEO
ANT.
HDMI3
VGA IN
VGA/DVI AUDIO
5
7
4
6
7
7
3
1
1
2
7
8
26”/32”/42”
