10.1 Preparation
▶ Take the appliance out of the packaging.
▶ Remove all packaging material including polystyrene base, keep them out of childrens
reach. While opening the package, water drops may be seen on plastic bag and port-
hole. This normal phenomenon results from water tests in the factory.

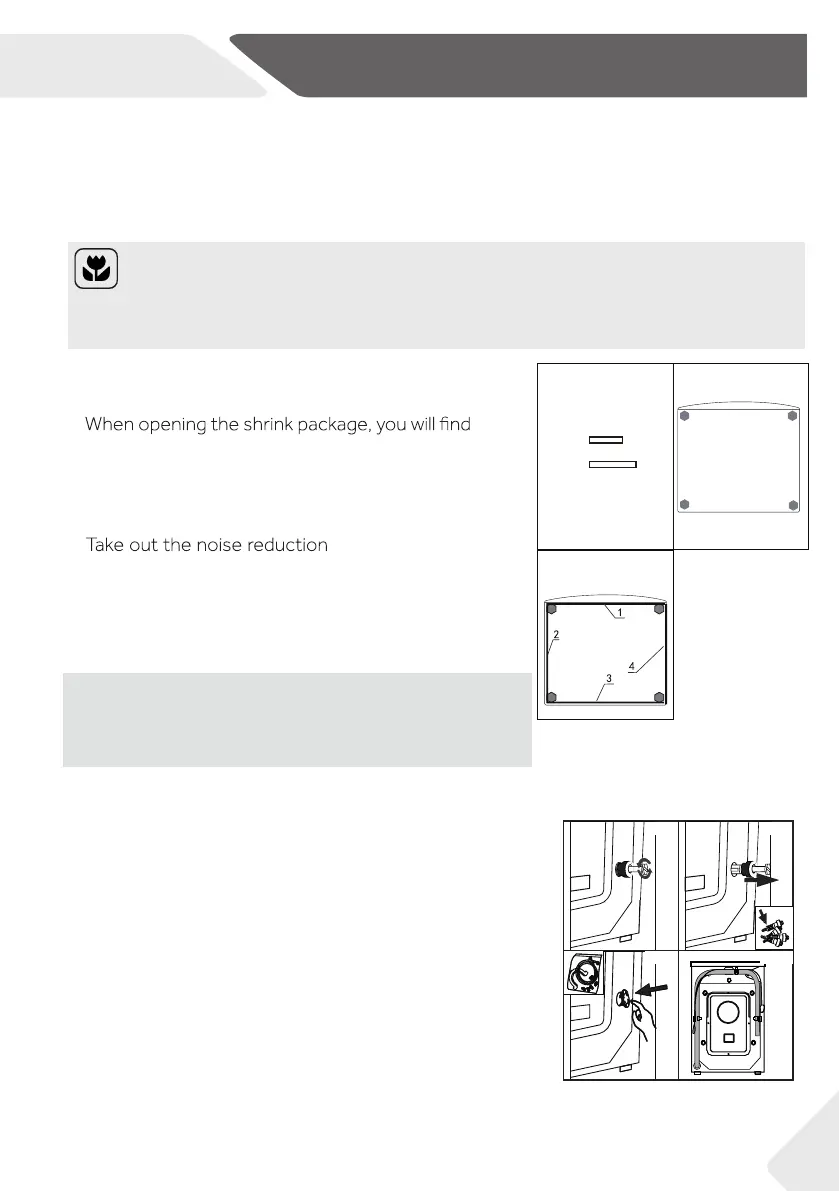

10.3 Dismantle the transportation bolts
The transportation bolts are designed for clamping
anti-vibration components inside the appliance during
transportation to prevent inner damage.
1.
2.
Remove all 4 bolts on the rear side and take out
plastic spacers (Fig. 10- 2)(Fig. 10-3).
Fill left holes with blanking plugs (Fig. 10-4)(Fig. 10- 5).
Note: Packaging disposal
Keep all packaging materials out of children´s reach and dispose them in an environmen-
tally friendly manner.
10.2
(1) (2)
(3)
10-1
2x
2x
Noise resuction pads installation instructions
noise
reduction pads.
These are used for reducing noise. (Fig. 10- 1)
3.
2. Lay the washing machine down to its side, porthole
pointing upwards, bottom side towards operator.
pads and remove the
double-sided adhesive protective film; the noise redu-
ction pads under the washing machine cabinet as
sh-
own in Figure 10.1(3),two longer pads in position 1 and
3,
two shorter pads in position 2 and 4. Finally set the
machine upright again.
1.
Warm tip:
Noise reduction pad is optional , could help to reduce
noise , please assemble it or not according to your
own demand.
10-2
10-3
10-510-4
