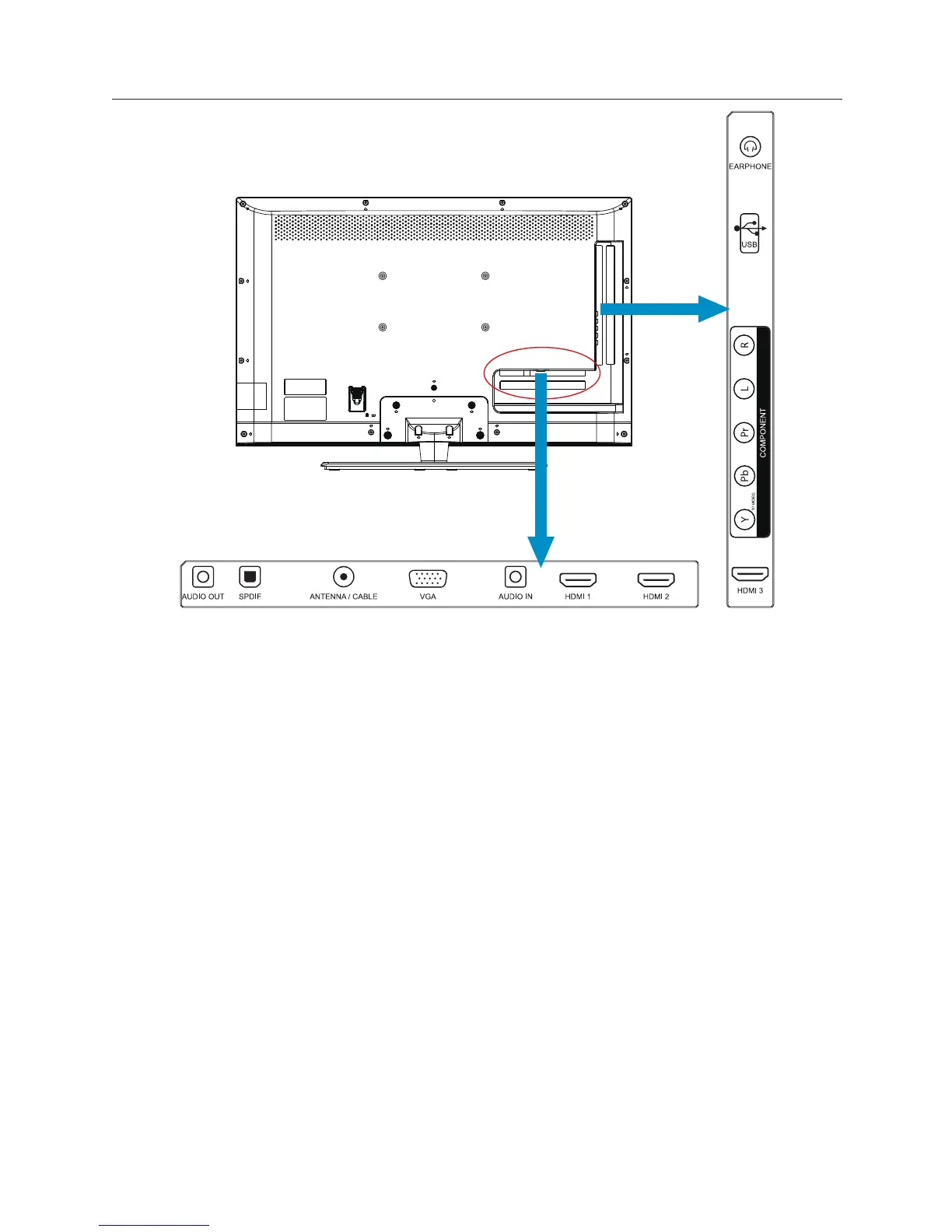

PERIPHERAL CONNECTION GUIDE
• HDMI – Connect the primary
source for digital video such as a
DVD player, Blu-ray player, or set
top box through this all digital
connector.
• VGA/AUDIO IN – Connect
the video and audio cables from a
computer here.
• COMPONENT (Y/Pb/Pr with
Audio L/R) – Connect the primary
source for component video devices
such as a DVD Player or set top
box here. Use red for Pr, blue for
Pb, green for Y, red for right audio (R)
and white for left audio (L) inputs.
Composite Video and L/R Audio
Input. (share with Component-Y)
• ANTENNA/CABLE – Connect
to an antenna or digital cable (out-
of-the-wall, not from Cable Box) for
Digital TV.
• SPDIF (Optical Digital Audio
Out) – When a digital audio signal
is associated with the input selected
for viewing, the digital audio will be
available on this SPDIF connection
to your home theater system.
• AUDIO OUT – Output the TV
audio to your stereo amplifier.
• USB PORT – Insert USB storage
device to the USB port to view
JPEG photos, or listen to MP3 music.
• EARPHONE – Connect to the
headphone output. When the
headphone is inserted to the plug,
the integrated speakers will be
muted.
Once your equipment is connected,
press the INPUT button on the remote
control to select the source you want
to view. (ex: Press INPUT button
to select “Component” if you have
connected a video recorder to the
Component input.)
