5
Option 2:
Close-to-Ceiling Mounting
WARNING
FAILURE TO COMPLETELY TIGHTEN THE
THREE SCREWS IN STEP 7 COULD RESULT IN
FAN LOOSENING AND POSSIBLY FALLING.

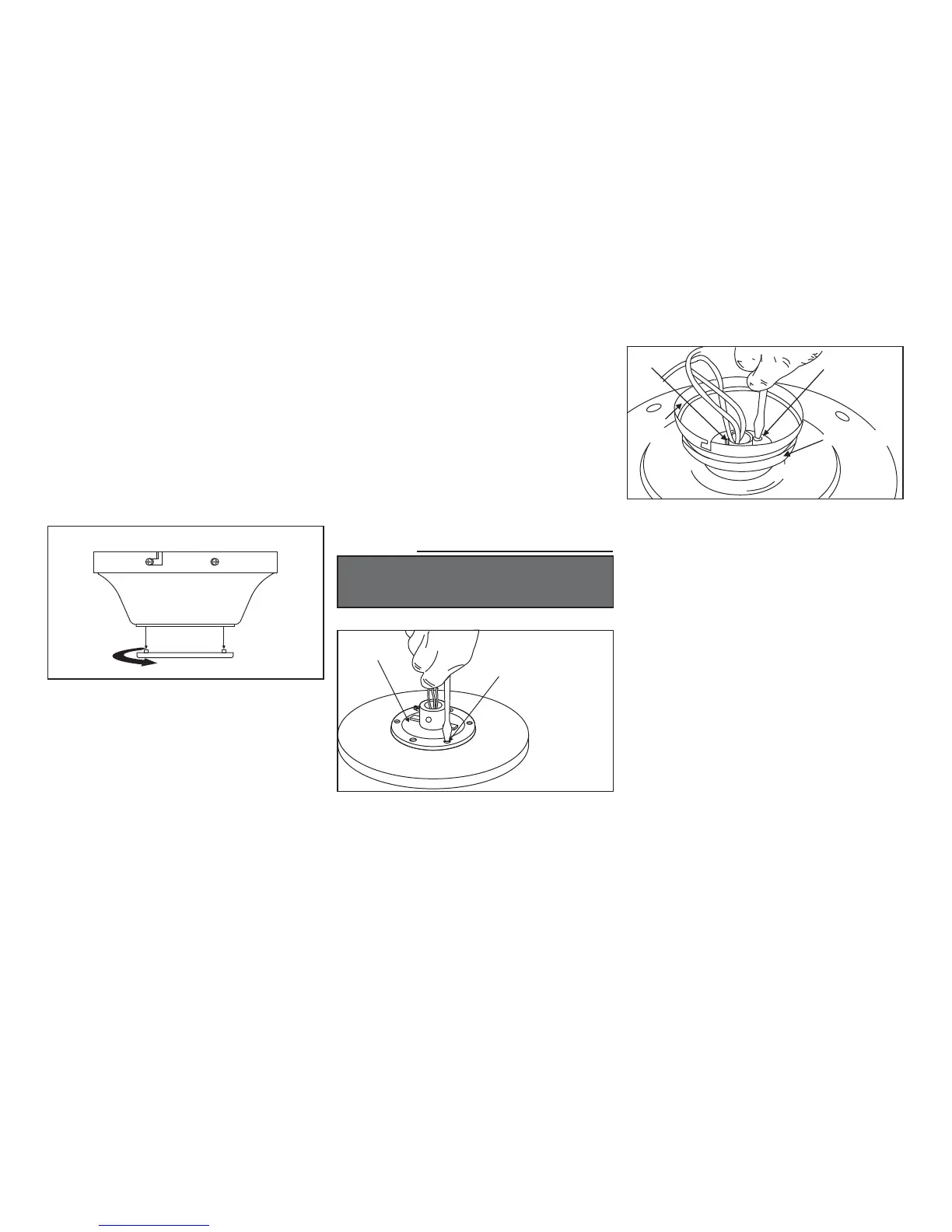

Figure 10
Motor
Collar Screw and Lock Washer
(3 of 6 Places)
Remove the canopy ring from the canopy.
(Figure 5)
Remove the mounting bracket from the canopy
by loosening the four screws on the top of the
canopy. Remove the two non-slotted screws
and loosen the slotted screws (Figure 6).
1.
2.
Remove the decorative canopy bottom cover
from the canopy by turning the canopy bottom
cover counterclockwise (Figure 8).
Remove three of the six screws and lock
washers (every other one) securing the
reinforcing plate to the top of the fan motor
housing (Figure 9).
3.
4.
Place the rubber gasket over the remaining
three screws, route the wires exiting the top of
the fan motor through the canopy ring (make
sure the slot openings are on top). then proceed
to place the ceiling canopy over the collar at
the top of the motor. (Figure 10)
Align the mounting holes with the holes in the
motor and fasten using the screws and lock
washers removed in step 4 (Fig. 10).
Tighten the mounting screws security.
5.
6.
7.
Collar
Canopy
Bottom
Cover
Remove
Figure 8
Figure 9
Ceiling
Canopy
Screw and
Lock Washer
(3 Places)
Canopy Ring
To Next Page
