Attaching the light kit
mounting plate to the mounting
ring
Assembly — Installing the Light Kit
11
16
J
G
KK
LL

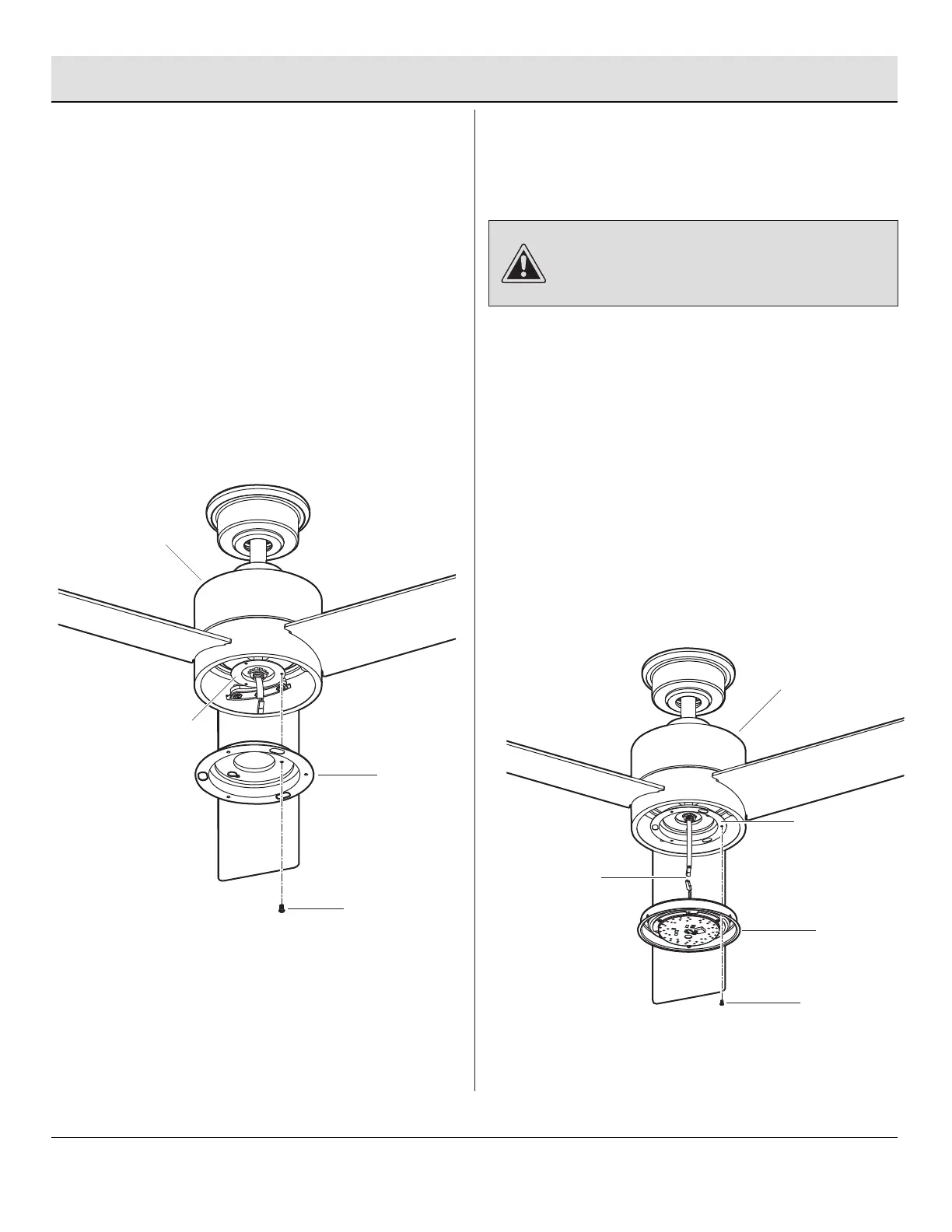

Attaching the light kit to
the light kit mounting plate
and glass shade
□ Remove one of the three light kit mounting plate
screws (KK) from the mounting ring (LL) and loosen
the other two screws. (Do not remove.)
□ Place the key holes in the light kit mounting plate (J)
over the two screws (KK) previously loosened from
the mounting ring (LL). Turn the light kit mounting
plate (J) until the light kit mounting plate (J) locks in
place at the narrow section of the key holes.
□ Securely tighten the two light kit mounting plate
screws (KK) previously loosened and the one (KK)
previously removed.
CAUTION: Before starting installation, disconnect the
power by turning off the circuit breaker or removing the fuse
at the fuse box. Turning power off using the fan switch is not
sufficient to prevent electric shock.
□ Remove one of the three light kit mounting screws (MM)
from the light kit mounting plate (J) and loosen the other
two screws (MM). (Do not remove.)
□ While holding the 20W LED light kit (K) under the fan
motor assembly (G), snap together the wire connection
plugs (NN) :
- White to white
- Black to blue
□ Place the key holes in the 20W LED light kit (K) over the
two mounting screws (MM) previously loosened from
the light kit mounting plate (J). Turn the 20W LED light
kit (K) until the 20W LED light kit (K) locks in place at the
narrow section of the key holes. Secure by tightening
the two light kit mounting screws (MM) previously
loosened and the one previously removed.
MM
K
G
J
NN
