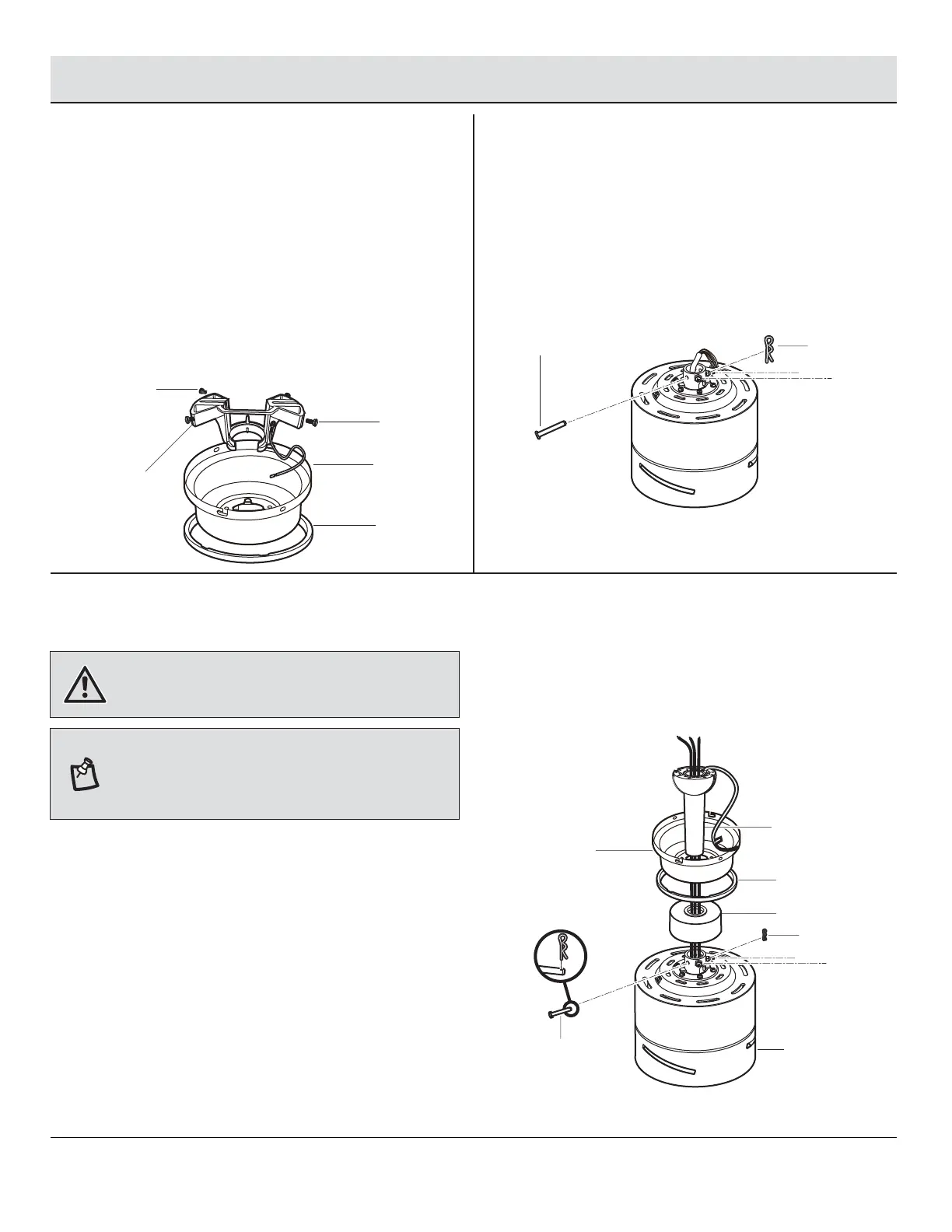

Assembly — Standard Ceiling Mounting
9
1
Preparing the canopy
2
Preparing the motor
3
Assembling the fan
□ Remove the canopy ring (B) from the canopy (C).
□ Remove the two non-slotted canopy mounting screw
with lock washer (EE) from the canopy (C), and loosen
the slotted canopy mounting screw with lock washer
(EE) on the canopy (C).
□ Remove the canopy (C) from the mounting bracket (A)
by turning the canopy (C) counterclockwise.
A
EE
EE
C
B
HH
HH
GG
FF
□ Remove the cotter pin (FF), and clevis pin (GG), and
loosen the two collar setscrews (HH) from the motor
collar.
□ Route the wires exiting from the top of the fan motor
assembly (G) through the coupling cover (F) and the
canopy bottom cover (D). Ensure the slot openings
are on top.
□ Route the wires through the canopy (C) and then
through the hanger ball/downrod assembly (E).
□ Align the holes at the bottom of the hanger
ball/downrod assembly (E) with the holes in the collar
on top of the fan motor assembly (G).
□ Carefully insert the clevis pin (GG) through the holes
in the collar and the hanger ball/downrod assembly
(E). Be careful not to jam the clevis pin (GG) against
the wiring inside the hanger ball/downrod assembly
(E).
□ Insert the cotter pin (FF) through the hole near the
end of the clevis pin (GG) until it snaps into the locked
position.
□ Tighten the two collar setscrews (HH) on top of the
fan motor assembly (G) firmly.
WARNING: Failure to properly install the cotter pin (FF)
could result in the fan becoming loose and possibly falling.
NOTE: If a longer downrod is needed (not included), take
out the screw located in the hanger ball, lower the hanger
ball and remove the pin. Remove all three pieces from the
downrod, and assemble them onto the new longer downrod
before proceeding step 3.
FF
C
E
F
GG
HH
HH
B
G
HAMPTONBAY.COM
Please contact 1-855-HD-HAMPTON for further assistance.
