Hardi NAVIGATOR 4000 Instruction Book

3 - Description
27

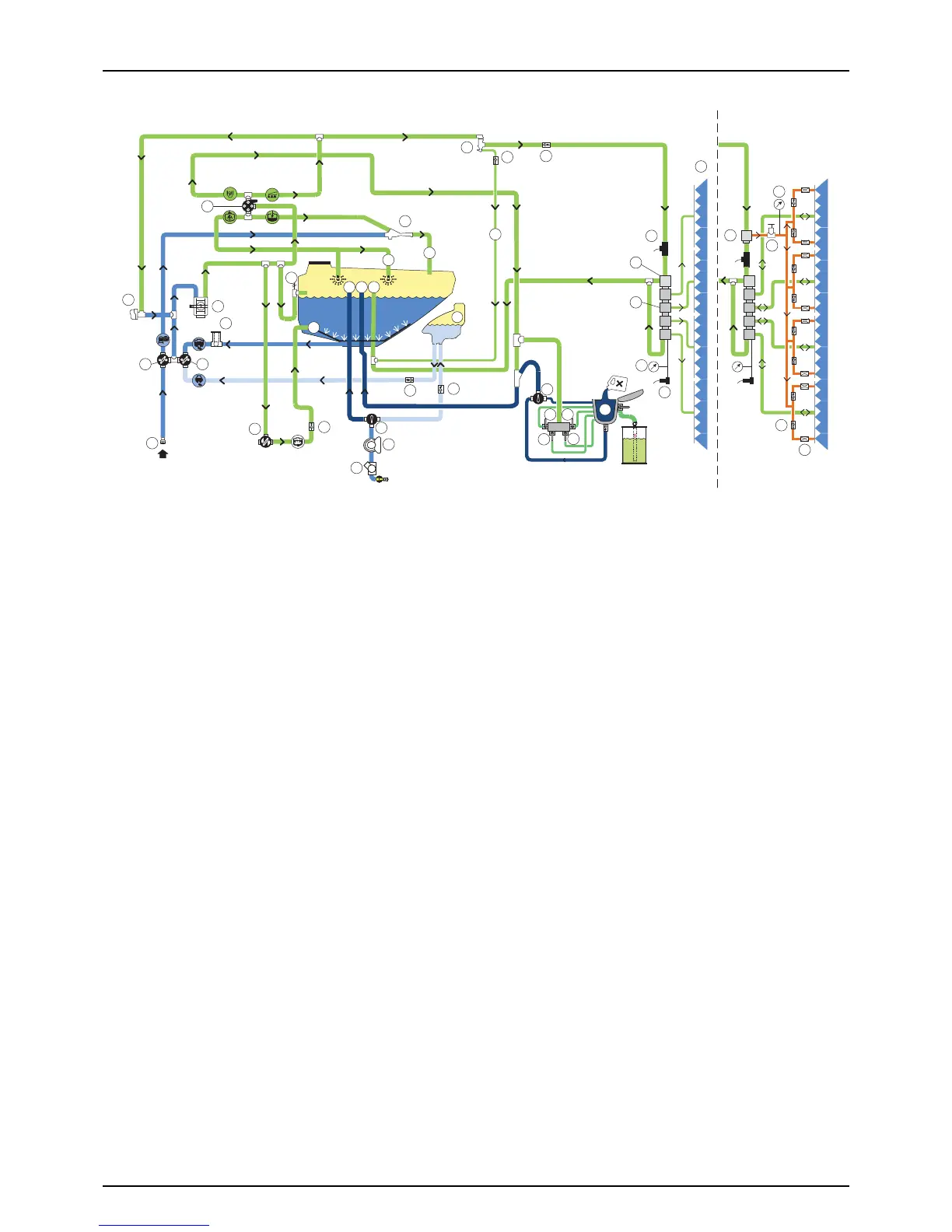

Diagram - Liquid System with Options and VACnMIX
1. Pump
2. EasyClean filter
3. Suction Valve for Main Tank / RinseTank
4. Pressure Control Valve
5. Pressure SmartValve
6. CycloneFilter
7. Return Line for Boost Function
8. Bypass Valve for Boom
9. Distribution Valves
10. Flow meter
11. Spray Boom
12. Agitation Valve
13. Agitation Tube
14. Tank Hose for Return Lines
15. Safety Valve
16. One-Way Valve
17. Tank Hose (Riser Pipe)
18. Tank Rinsing Nozzles
19. Filtered Fast Fill
20. Directional Fill Valve
21. Rinse tank
22. Filling Coupler
23. Vacuum Transfer Valve
24. VACnMIX
25. Chemical container flush valve
26. Upper Vortex Jet valve
27. Fill / Vortex control valve
28. Lower Vortex valve
29. Tank Hose VACnMIX
30. Fast Fill Ejector
31. Filling Valve
32. Pressure Gauge Boom
33. Pressure Sensor
34. Restrictor for BoomPrime
35. One-Way Valve for BoomPrime
36. Bypass Valve for BoomPrime
37. Pressure Control Valve for BoomPrime
38. Pressure Gauge BoomPrime
BoomPrime
31 3
1
2
12
11
6
16
16
16
16
4
5
7
8
10
9
30
34
21
33
18
13
16
8x
8x
35
34
37
36
Clean Water
Fill ONLY
1429
15
19
17
22
5
4
24
25
26
28
27
23
32
20
38
36
